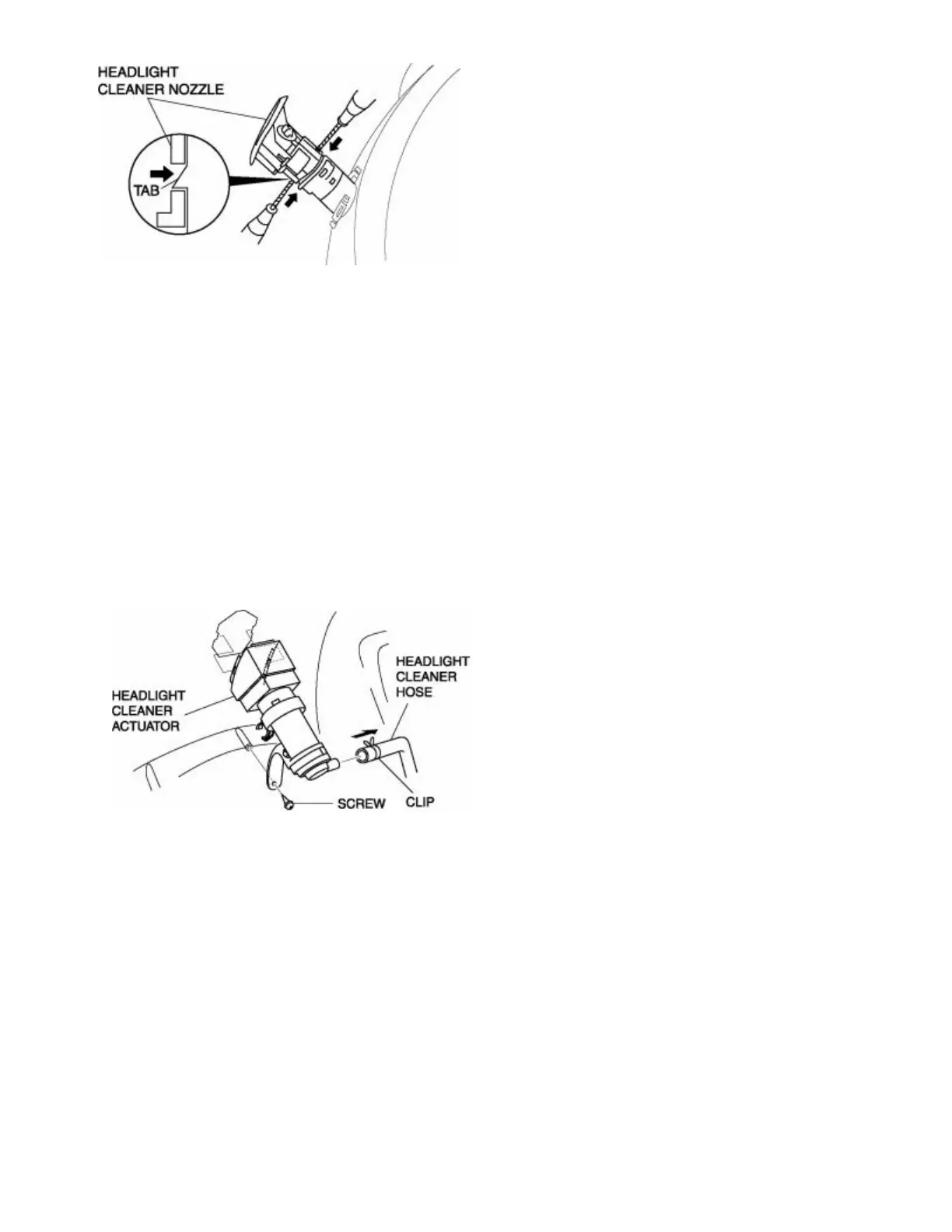

HEADLIGHT CLEANER NOZZLE INSTALLATION
1. Install the headlight cleaner nozzle by pushing it in until a click is heard.
HEADLIGHT CLEANER ACTUATOR REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.
2. Remove the front side marker light. (See FRONT SIDE MARKER LIGHT
REMOVAL/INSTALLATION .)
3. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)
4. Remove the headlight cleaner nozzle. (See HEADLIGHT CLEANER NOZZLE REMOVAL .)(See
HEADLIGHT CLEANER NOZZLE INSTALLATION .)
5. Squeeze the clip tabs and slide the clip in the direction of the arrow.
6. Disconnect headlight cleaner hose from the headlight cleaner actuator.
7. Remove the screw, then remove the headlight cleaner actuator.
8. Install in the reverse order of removal.
HEADLIGHT CLEANER HOSE REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.
2. Remove the front side marker light.(See FRONT SIDE MARKER LIGHT
REMOVAL/INSTALLATION .)
3. Remove the front bumper.(See FRONT BUMPER REMOVAL/INSTALLATION .)
4. Disconnect joint pipe.
