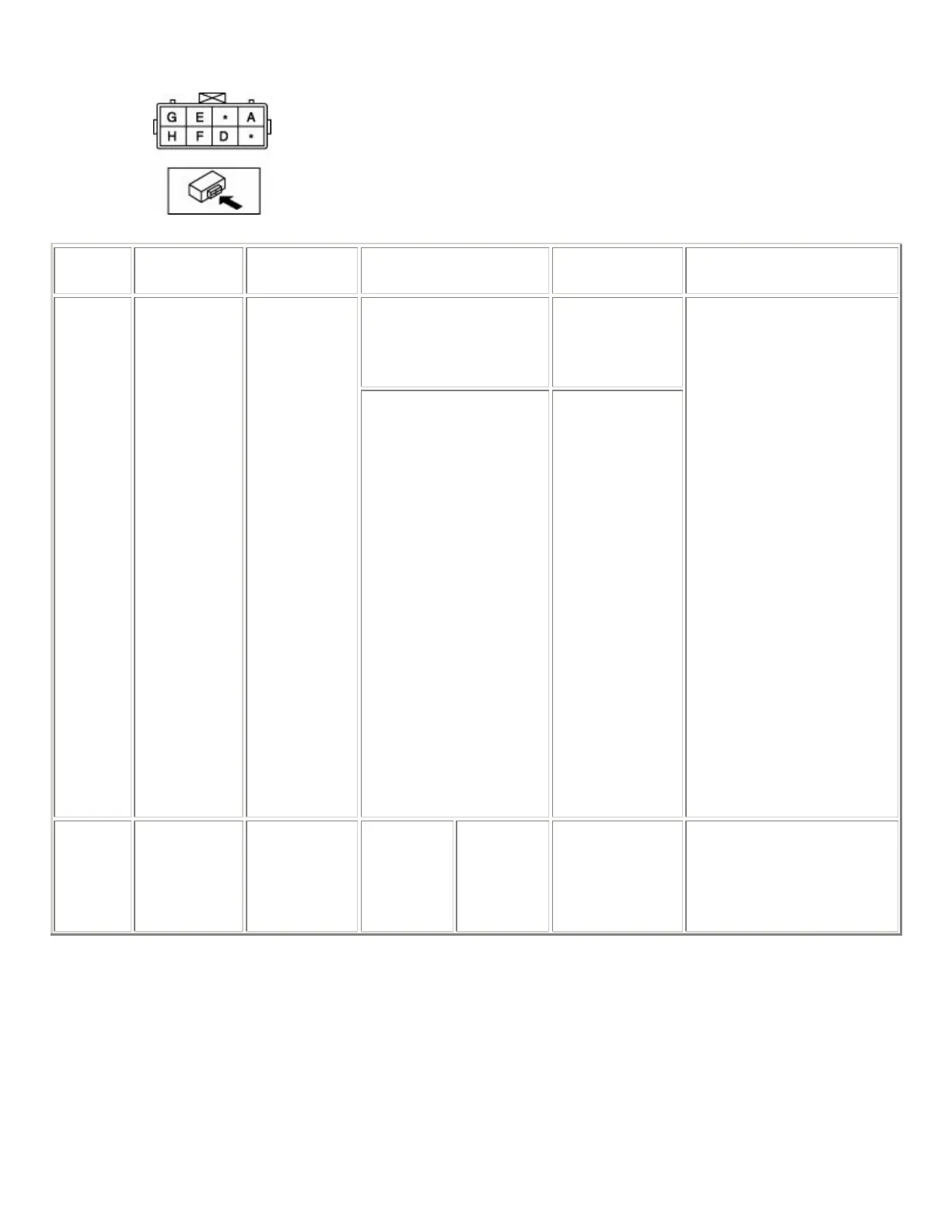

Terminal Voltage Table (Reference)
Terminal Signal name Connected to Measured condition
Voltage
(V)/Continuity
Inspection item(s)
Headlight cleaner
activated (auto-
operation or manual
operation activated)
Alternates
between 1.0 or
less and B+
A
Headlight
cleaner motor
output
Headlight
cleaner motor
Except above B+
• Headlight relay
(See RELAY
INSPECTION .)
• Windshield wiper
and washer switch
(See
WINDSHIELD
WIPER AND
WASHER
SWITCH
INSPECTION .)
• Headlight cleaner
motor (See
HEADLIGHT
CLEANER
MOTOR
INSPECTION .)
• Related wiring
harnesses
D
Windshield
washer motor
output
Windshield
wiper and
washer switch
Turn the
ignition
switch to
the ON
position.
Turn the
washer
switch to
the OFF
position.
1.0 or less
• Headlight relay
