INTERIOR TRIM

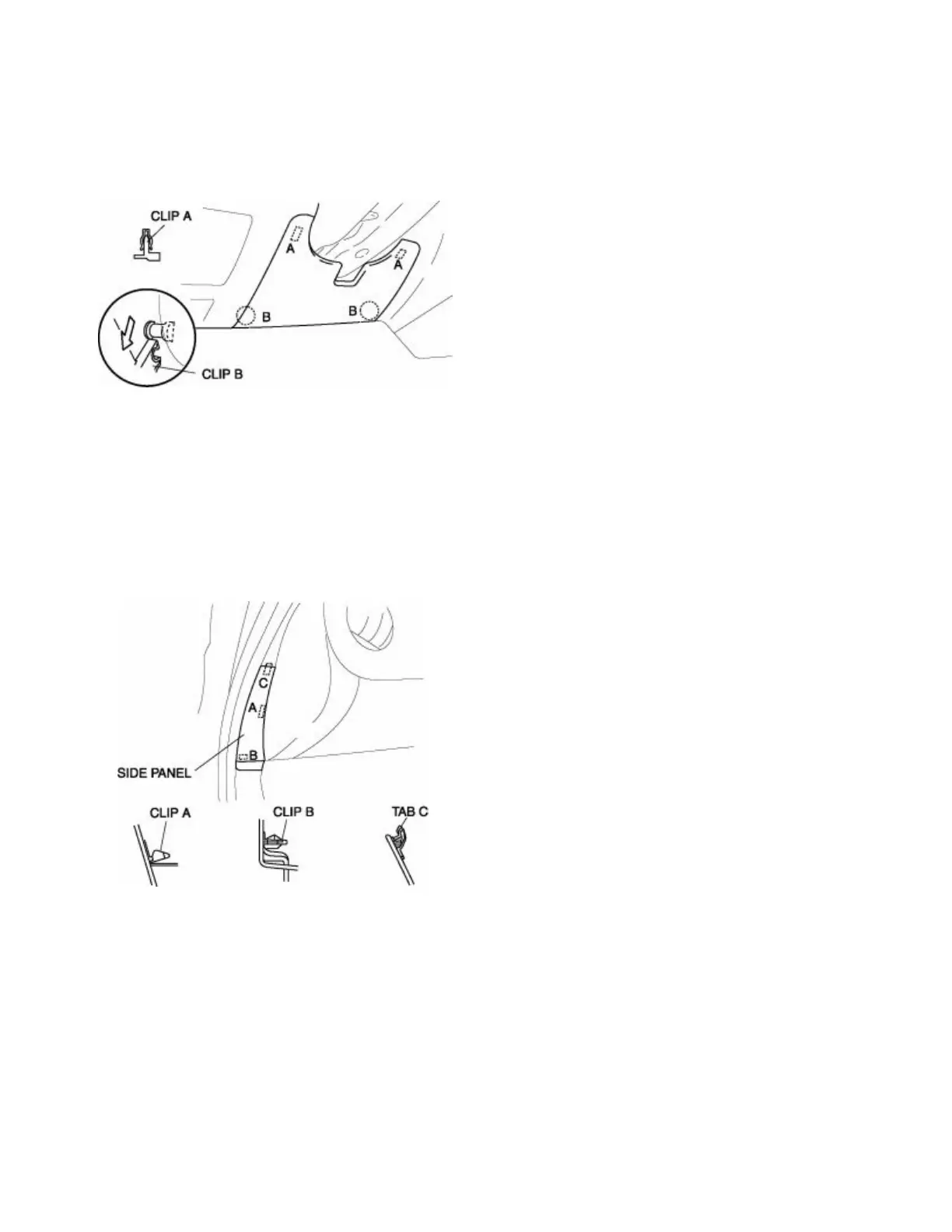

LOWER PANEL REMOVAL/INSTALLATION
1. Pull the upper part of the lower panel, and detach clips A.
2. Detach clips B from the dashboard and remove the lower panel.
3. Install in the reverse order of removal.
SIDE PANEL REMOVAL/INSTALLATION
1. Remove the inner scuff plate.(See INNER SCUFF PLATE REMOVAL/INSTALLATION .)
2. Remove the front side trim.(See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
3. Detach clips A and B, using a flathead screwdriver wrapped with protective tape.
4. Pull the side panel outward and detach tab C from the dashboard, then remove the side panel.
5. Install in the reverse order of removal.
