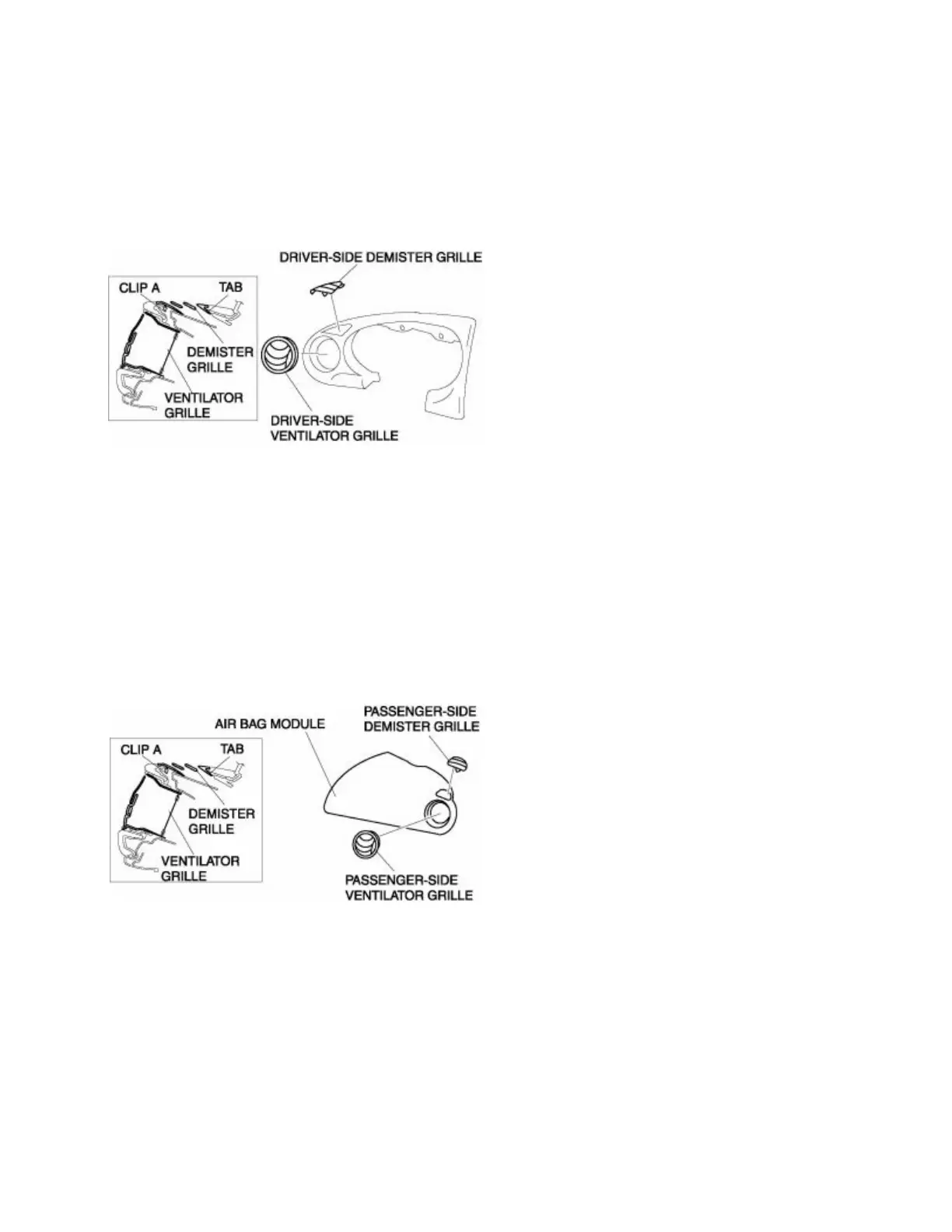

VENTILATOR GRILLE REMOVAL/INSTALLATION
Driver's Side
1. Disconnect the negative battery cable.
2. Remove the instrument cluster.(See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .)
3. Remove the dashboard garnish.(See DASHBOARD GARNISH REMOVAL/INSTALLATION .)
4. Pull the driver-side demister grille upward and detach clip A.
5. Pull the driver-side demister grille outward and remove it.
6. Install in the reverse order of removal.
Passenger's Side
1. Disconnect the negative battery cable.
2. Remove the glove compartment.(See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
3. Remove the passenger-side air bag module.(See PASSENGER-SIDE AIR BAG MODULE
REMOVAL/INSTALLATION .)
4. Pull the passenger-side demister grille upward and detach clip A.
5. Pull the passenger-side demister grille outward and remove it.
6. Install in the reverse order of removal.
Center
1. Remove the console.(See CONSOLE REMOVAL/INSTALLATION .)
2. Remove the center panel module.(See CENTER PANEL MODULE REMOVAL/INSTALLATION .)
3. Remove the screws.
