CONSOLE

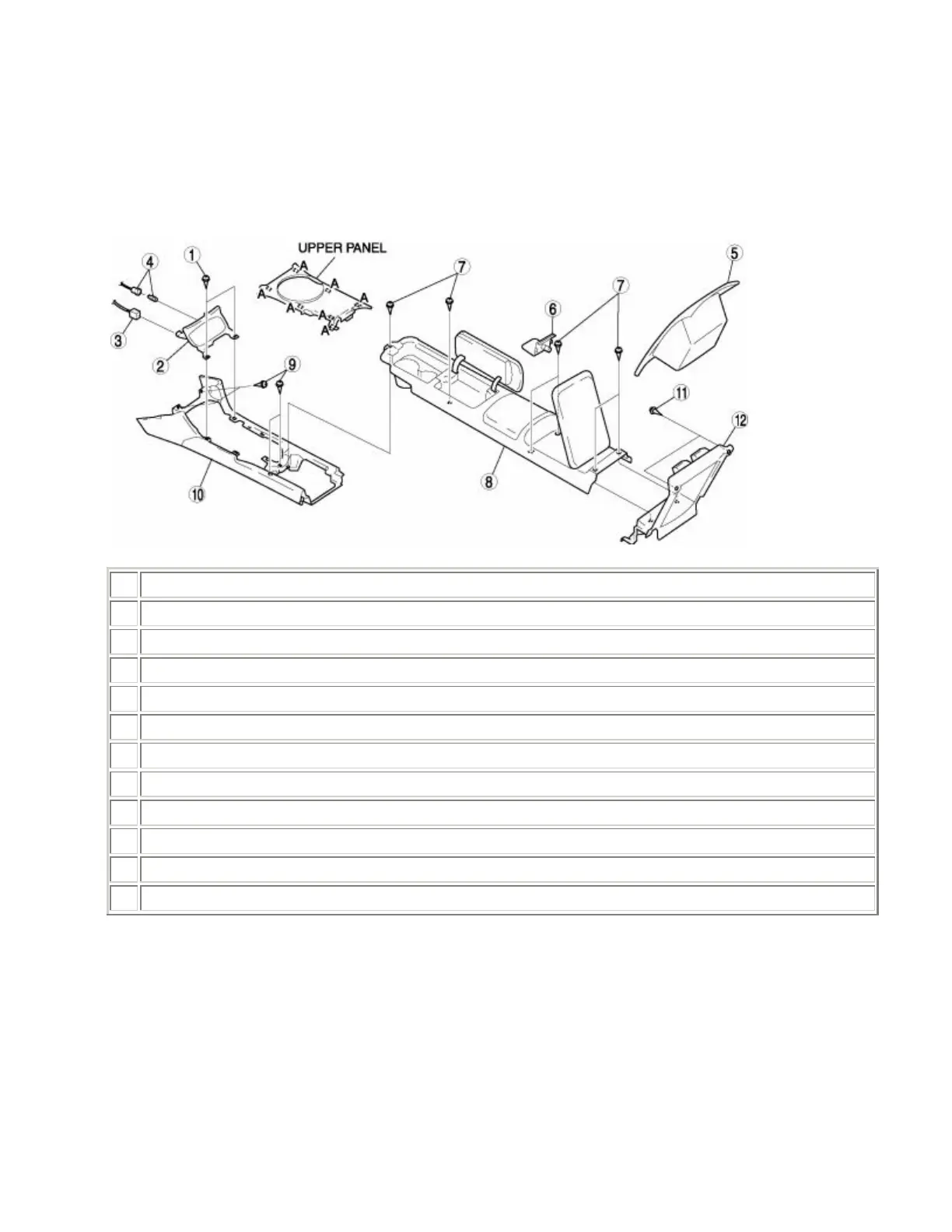

CONSOLE REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.
2. Detach clips A and remove the upper panel.
3. Disassemble in the order indicated in the table.
1 Screw A
2 Ashtray panel(See Ashtray Panel Removal Note )
3 Cigarette lighter connector
4 Ashtray illumination(See ASHTRAY ILLUMINATION BULB REMOVAL/INSTALLATION )
5 Storage compartment
6 Hole cover
7 Screw B
8 Rear console
9 Screw C
10 Front console
11 Screw D
12 Under cover
4. Install in the reverse order of removal.
Ashtray Panel Removal Note
1. Remove the ashtray panel using a flathead screwdriver wrapped with protective tape.
