PANEL LIGHT CONTROL SWITCH
PANEL LIGHT CONTROL SWITCH REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.
2. Remove the panel light control switch.(See Panel Light Control Switch Removal Note .)
3. Disconnect the connector.
4. Install in the reverse order of removal.

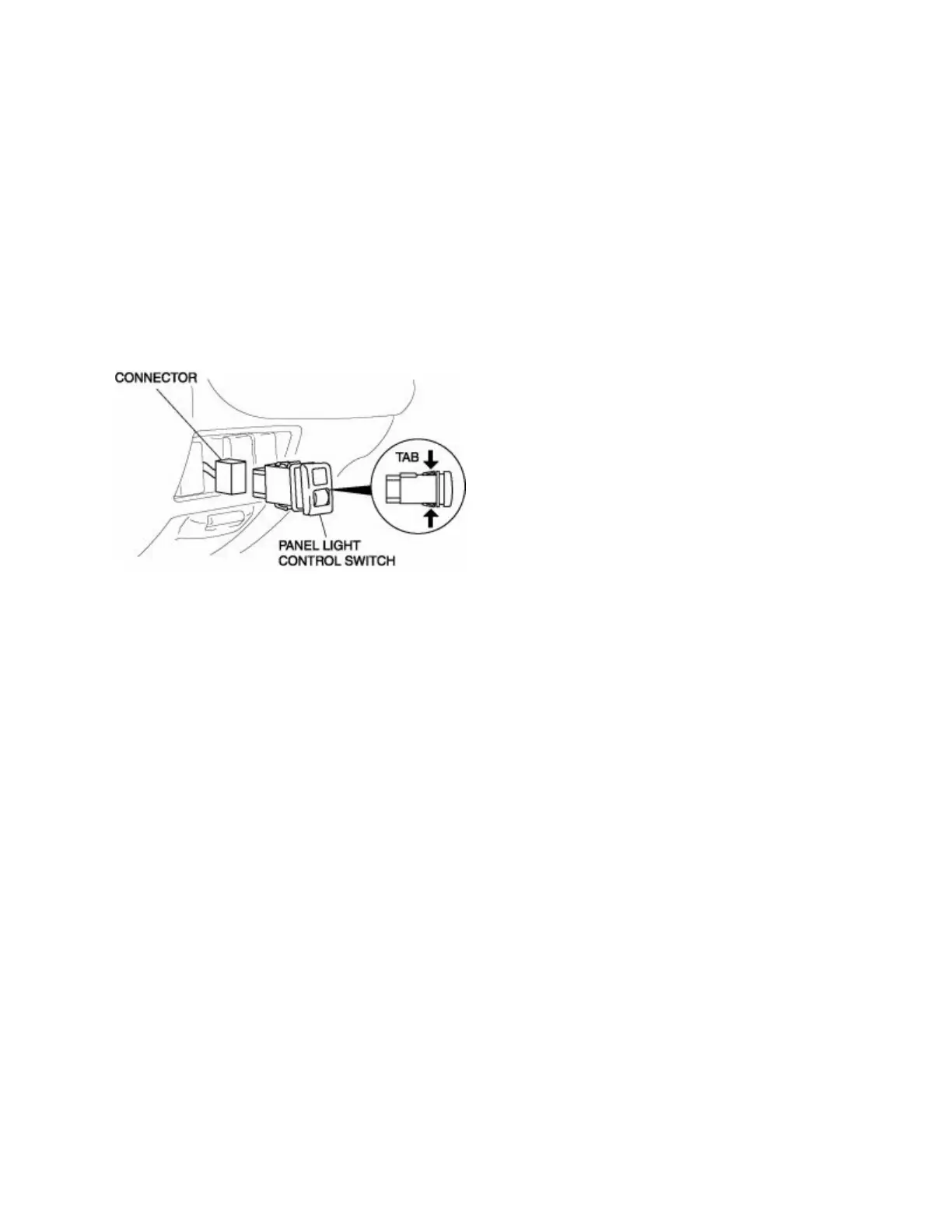

Panel Light Control Switch Removal Note
1. Reach into the dashboard through the underside of the lower panel and, while pushing on the tabs of the
panel light control switch, pull it outward.
PANEL LIGHT CONTROL SWITCH INSPECTION
1. Connect the panel light control switch connector.
2. Connect the negative battery cable.
3. Measure the voltage at each terminal (other than terminal D).
• If the voltage is not as specified in the Terminal Voltage Table (Reference), inspect the parts
under "Inspection item(s)".
