DOOR UNIT

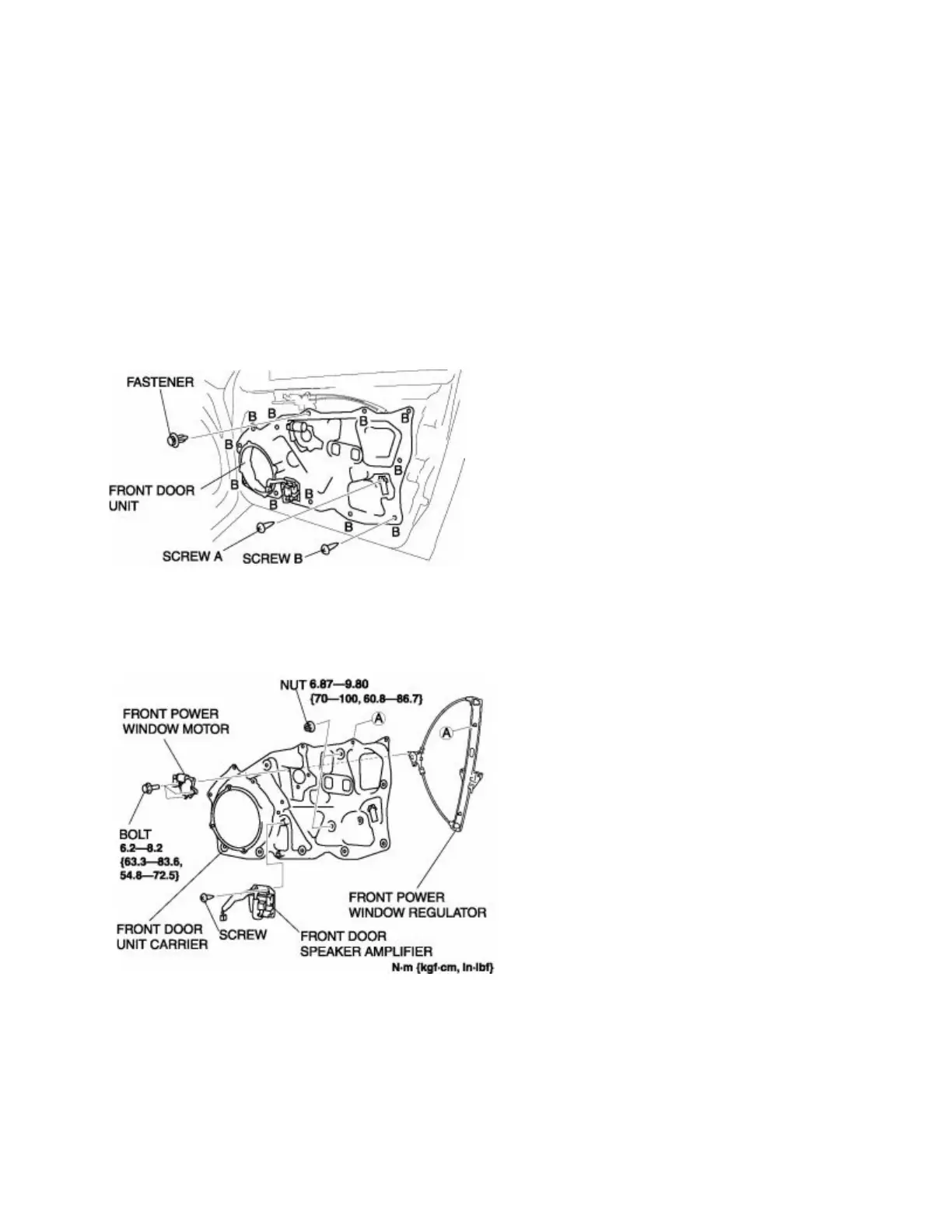

FRONT DOOR UNIT REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.
2. Remove the following parts:
a. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)
b. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
c. Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
d. Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .)
3. Disconnect the door lock actuator connector.
4. Remove the front door wiring harness from the front door unit.
5. Remove screw A.
6. Remove screws B and the fastener.
7. Remove the front door unit.
8. Remove the following parts:
• Front power window motor
• Front power window regulator
• Front door speaker amplifier
9. Install in the reverse order of removal.
