Mazda RX8 - Door Adjustment

DOOR ADJUSTMENT

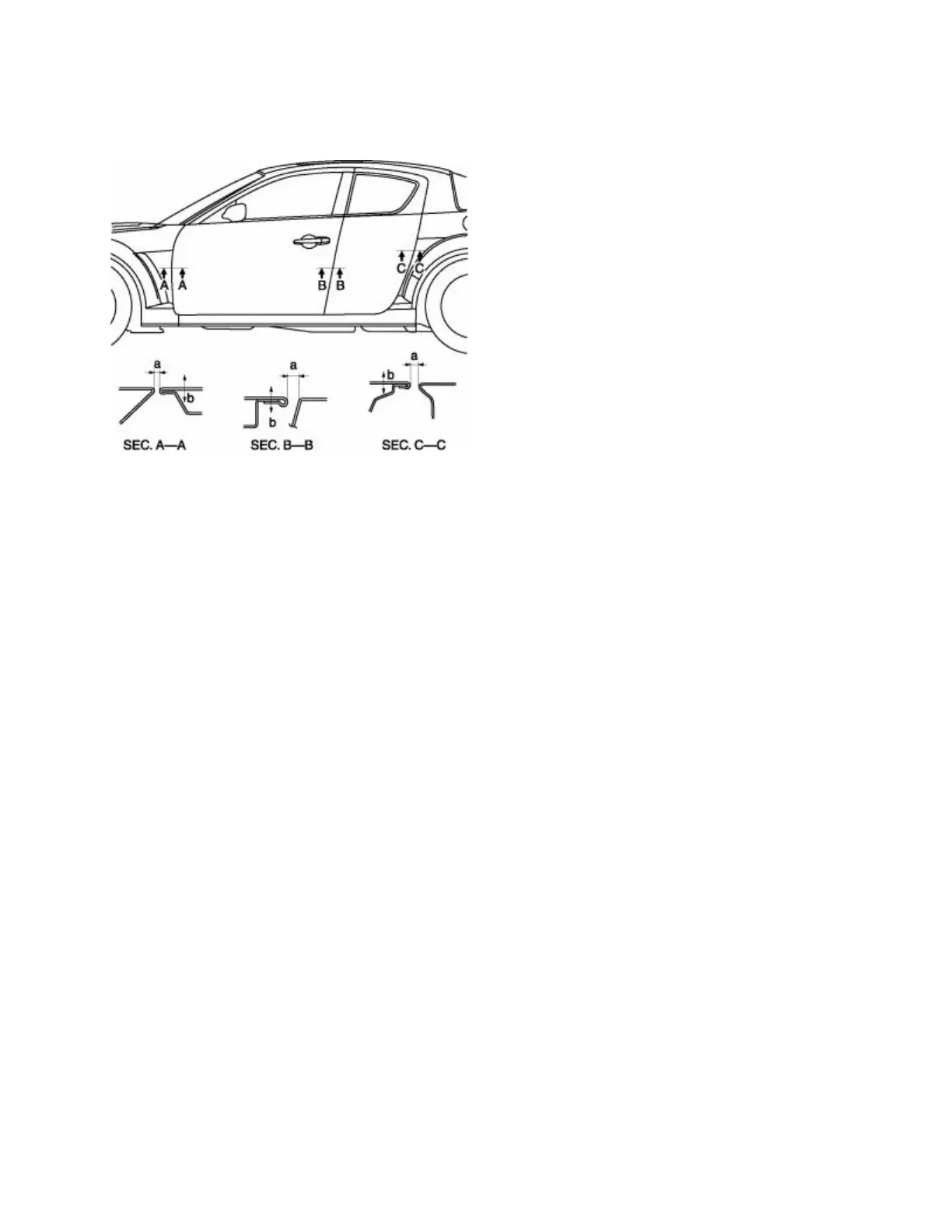

1. Measure the gap and height difference between the front or rear door and the body.
2. Loosen the door hinge installation bolts or the door lock striker installation screws, and adjust the door.
Standard clearance
o a: 3.05.0 mm {0.120.20 in}
o b: -1.01.0 mm {-0.030.04 in}
3. Tighten the bolts or screws.
(w) RX-8 Body
Page 23
