AUDIO UNIT
CENTER PANEL MODULE REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.
2. Remove the lower panel.(See LOWER PANEL REMOVAL/INSTALLATION .)
3. Remove the console.(See CONSOLE REMOVAL/INSTALLATION .)

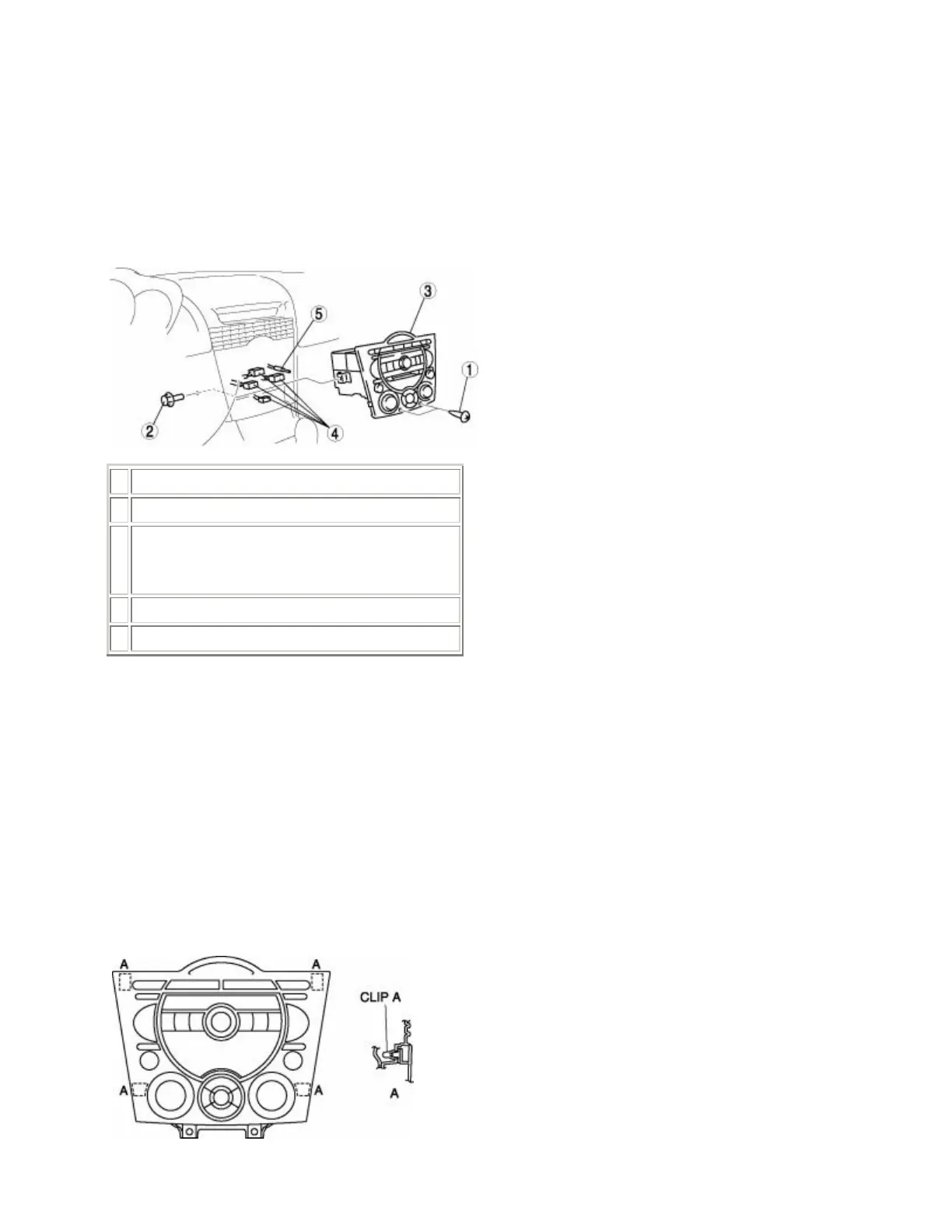

4. Remove in the order indicated in the table.
1 Screw
2 Bolt
3
Center panel module
(See Center Panel Module Removal Note .)
4 Connector
5 Antenna feeder
5. Install in the reverse order of removal.
CAUTION:
• When installing the center panel module, make sure that the wiring harness and antenna feeder
are not caught between the unit and dashboard.If the wiring harness or the antenna feeder is
caught between the unit and dashboard, it may cause malfunctions.
Center Panel Module Removal Note
1. Pull the center panel module outward, detach clip A from the dashboard, and then remove the center
panel module.
