CENTER PANEL MODULE DISASSEMBLY/ASSEMBLY
CAUTION:
• Before disassembling the center panel module, spread a cloth on the floor to put the disassembled parts
on. This protects the surface of the panel from scratches or dirt.

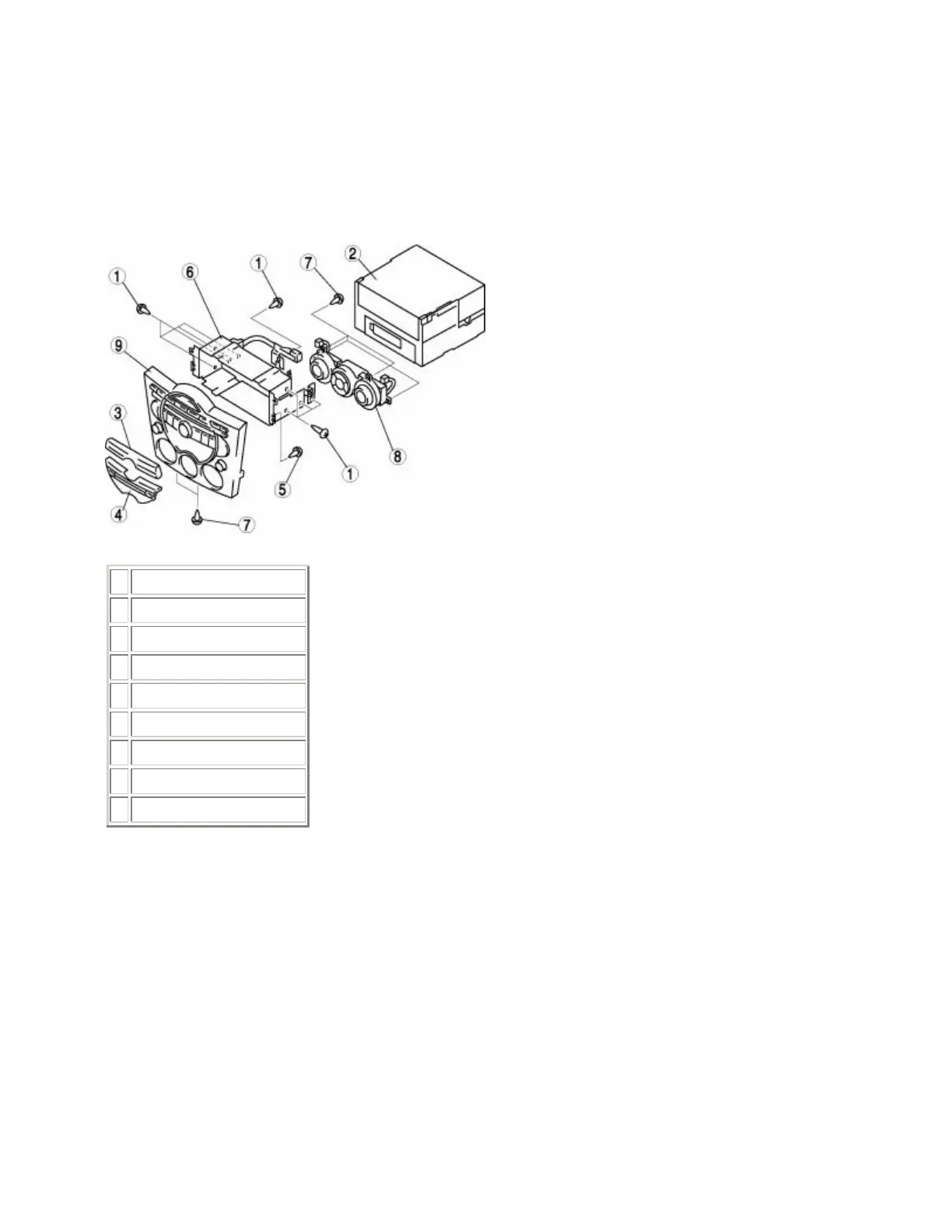

1. Disassemble in the order indicated in the table.
1 Screw A
2 Audio unit
3 Cover (upper module)
4 Cover (lower module)
5 Screw B
6 Bracket
7 Screw C
8 Climate control unit
9 Center panel
2. Assemble in the reverse order of disassembly.
