LCD UNIT
LCD UNIT REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.
2. Remove the following parts:
a. Lower panel(See LOWER PANEL REMOVAL/INSTALLATION .)
b. Console(See CONSOLE REMOVAL/INSTALLATION .)
c. Center panel module(See CENTER PANEL MODULE REMOVAL/INSTALLATION .)
d. Center ventilator grille(See VENTILATOR GRILLE REMOVAL/INSTALLATION .)
3. Remove in the order indicated in the table.

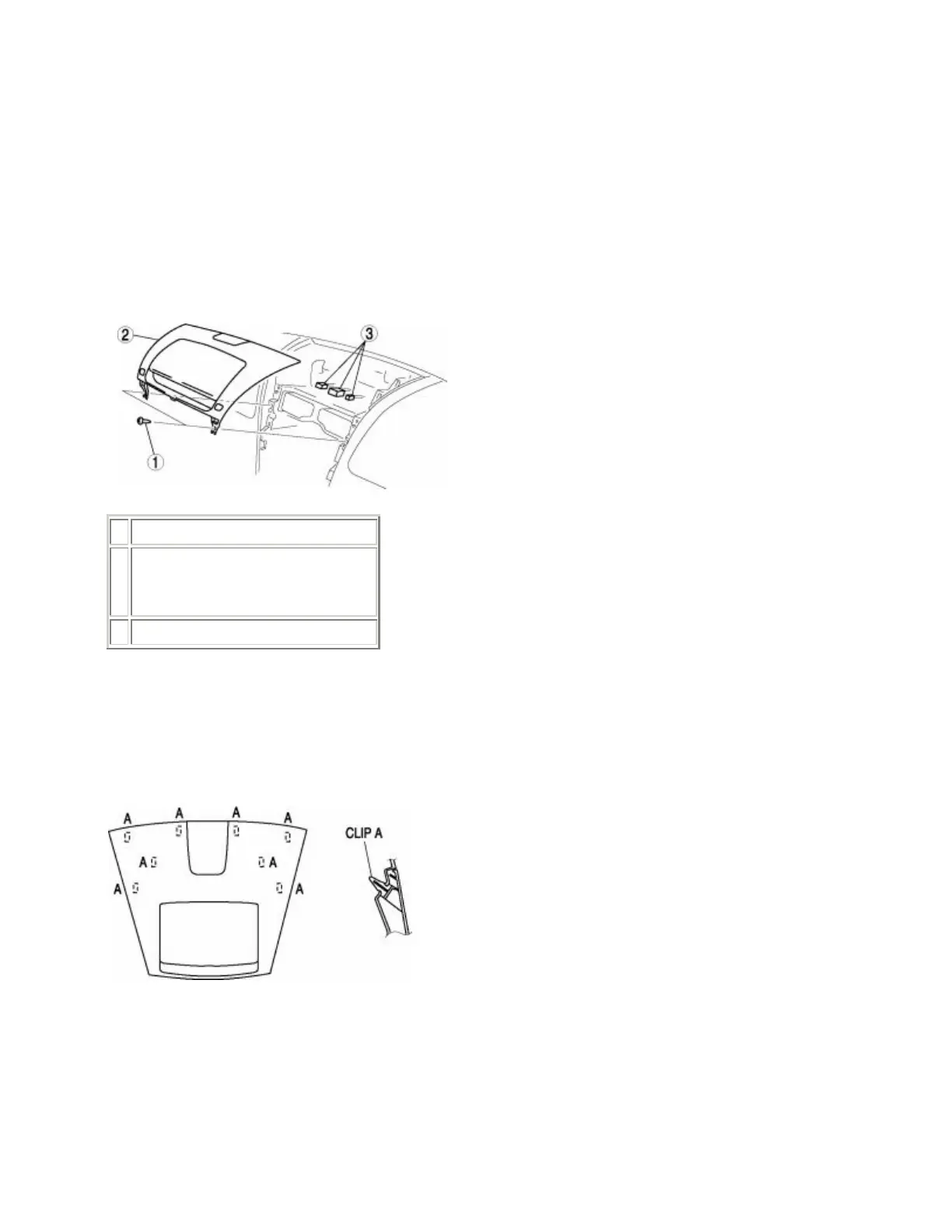

1 Screw
2
LCD unit
(See LCD Unit Removal Note .)
3 Connector
4. Install in the reverse order of removal.
LCD Unit Removal Note
1. Pull the lower LCD unit outward, detach clip A from the dashboard, and then remove the LCD unit.
