Lower
1. Remove the outer scuff plate. (See OUTER SCUFF PLATE REMOVAL/INSTALLATION .)

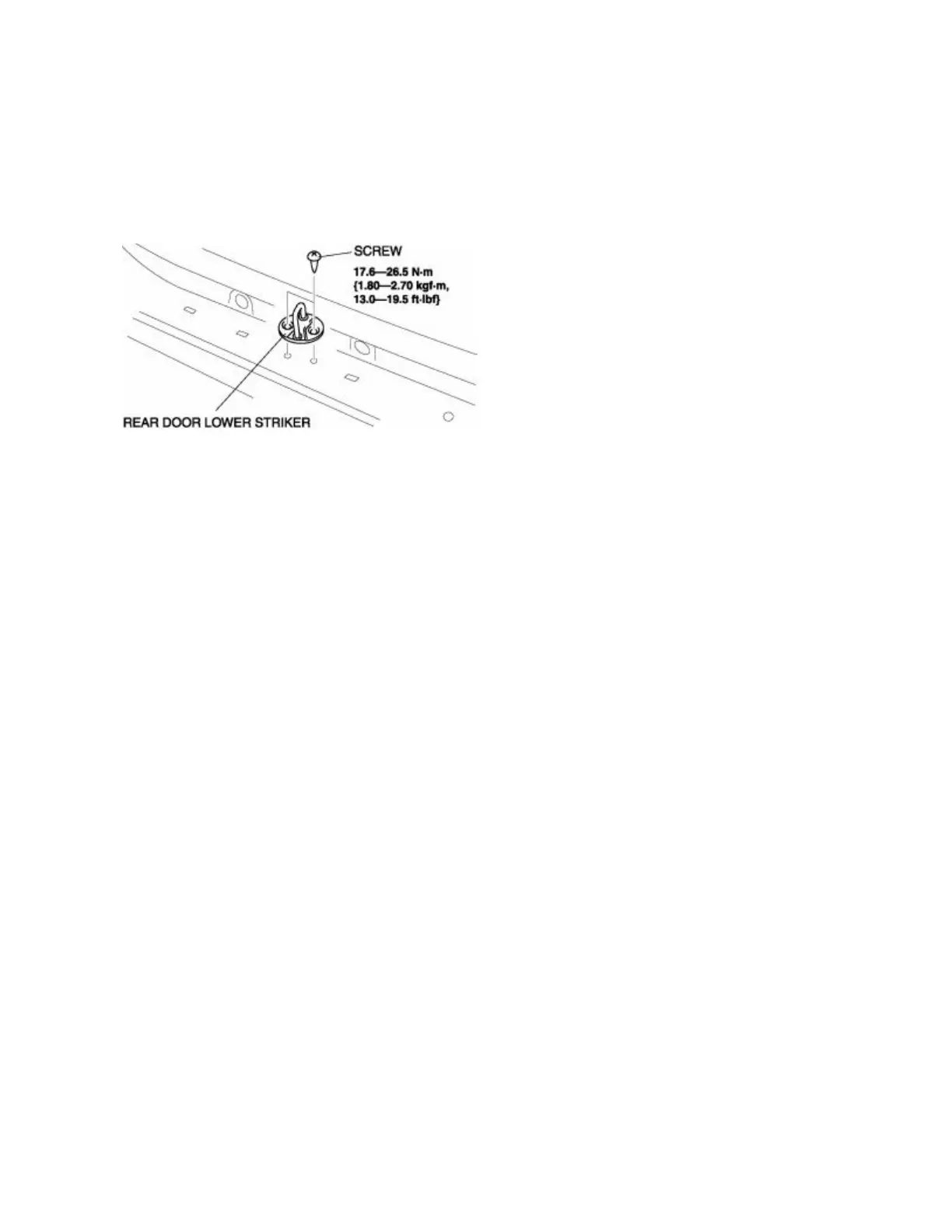

2. Remove the screws, then remove the rear door lock striker (lower).
3. Install in the reverse order of removal.
4. Adjust the door. (See DOOR ADJUSTMENT .)
DOOR LOCK SWITCH REMOVAL/INSTALLATION
LH
1. Remove the power window main switch. (See POWER WINDOW MAIN SWITCH
REMOVAL/INSTALLATION .)
NOTE:
• The power door lock switch and the power window main switch are integrated.
2. Install in the reverse order of removal.
RH
1. Disconnect the negative battery cable.
