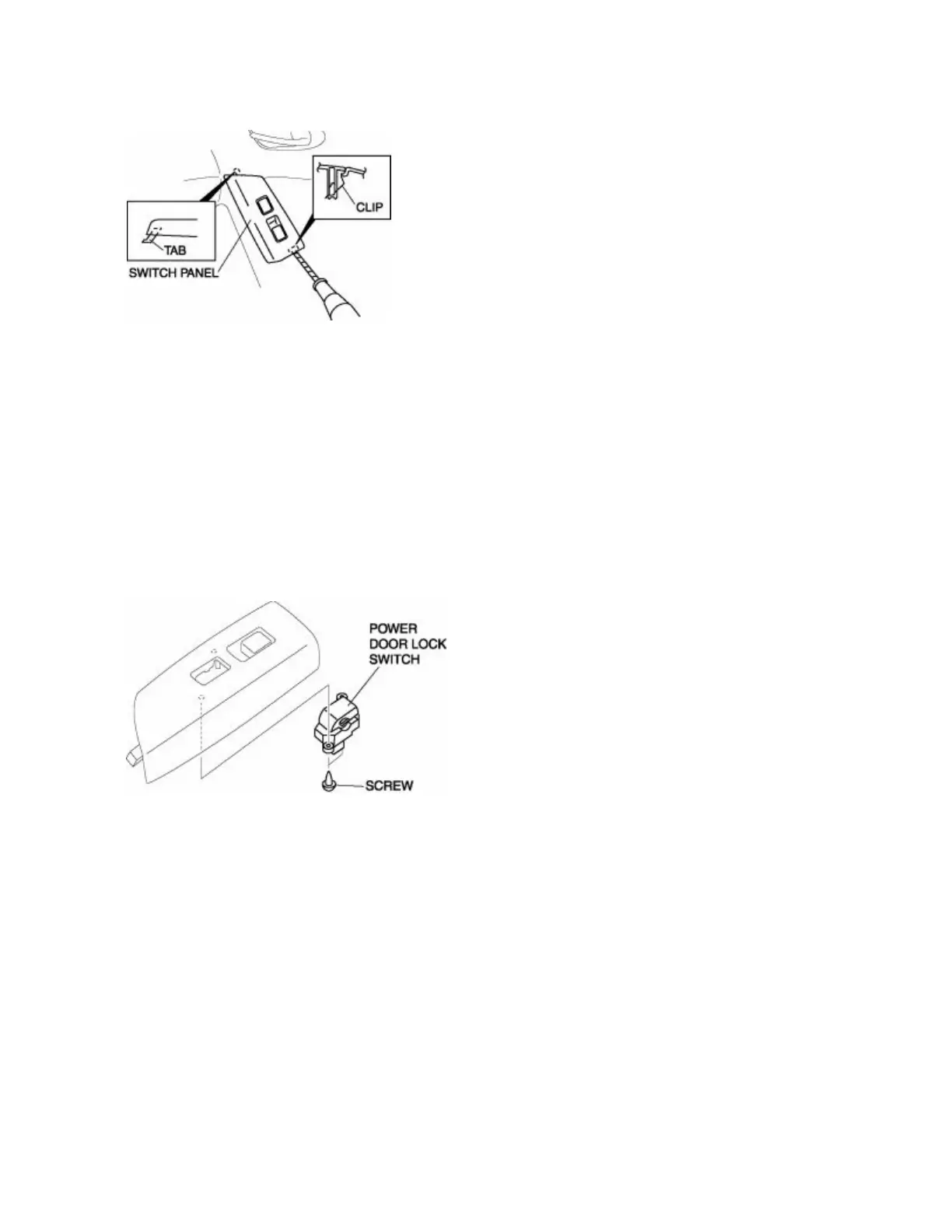

2. Using a flathead screwdriver wrapped with protective tape, pry up the rear of the switch panel and
detach the clip .
3. Remove the switch panel from the front door trim keeping the tab from catching.
4. Disconnect the power door lock switch connector and the power window subswitch connector.
5. Remove the screws, then remove the power door lock switch.
6. Install in the reverse order of removal.
DOOR LOCK SWITCH INSPECTION
1. Inspect for continuity between the door lock switch terminals.
