INSTRUMENT CLUSTER CONFIGURATION

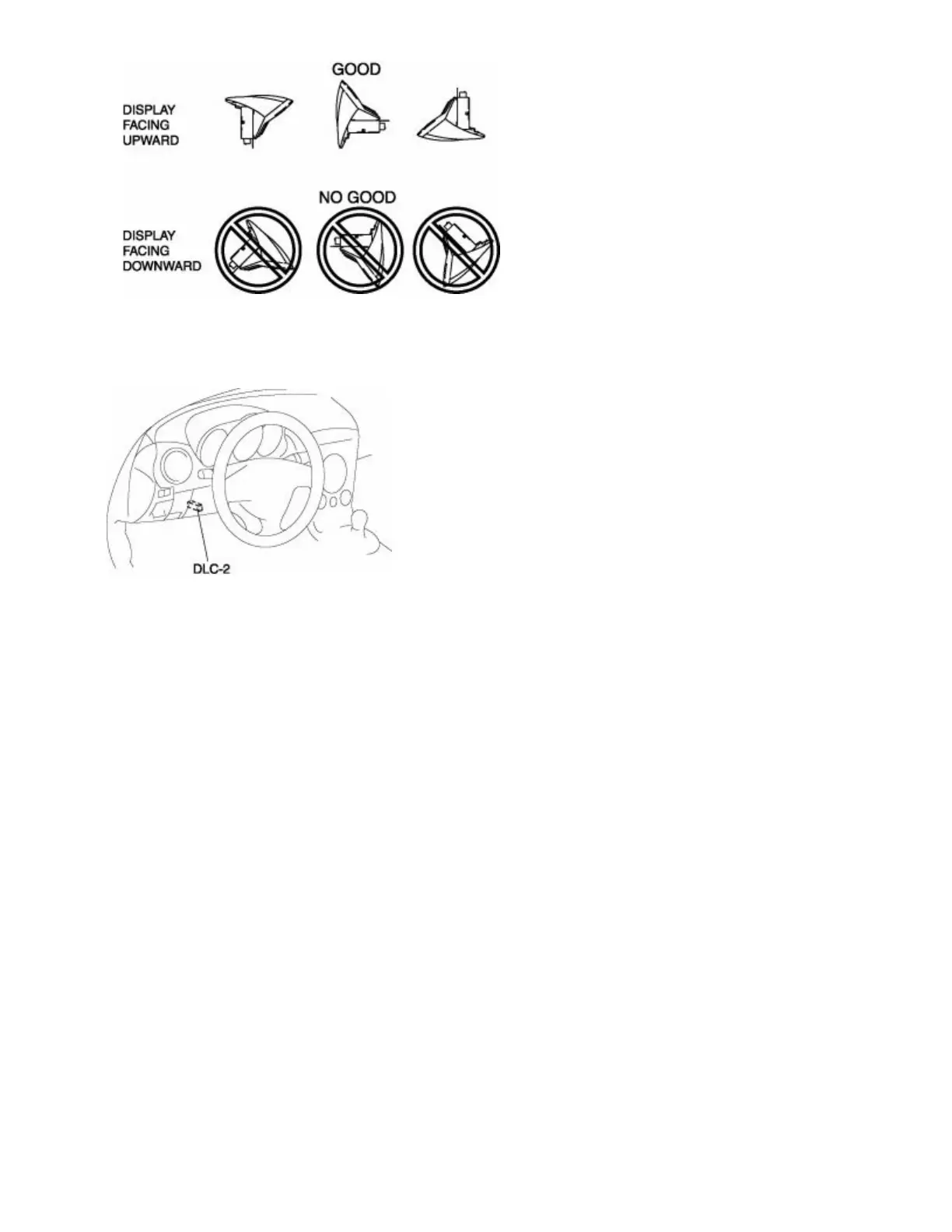

1. Connect the WDS or equivalent to the DLC-2 (16-pin).
2. Input vehicle information following the directions on the screen.
3. Select "Module programming" from the menu.
4. Select "Programmable Module Installation".
5. Select the item below, and follow the directions on the screen.
Item
o "IC"
INSTRUMENT CLUSTER DISASSEMBLY/ASSEMBLY
CAUTION:
• Do not drop the instrument cluster or damage the printed board. This will lead to a system malfunction.
1. Disassemble in the order indicated in the table.
To Next Page
