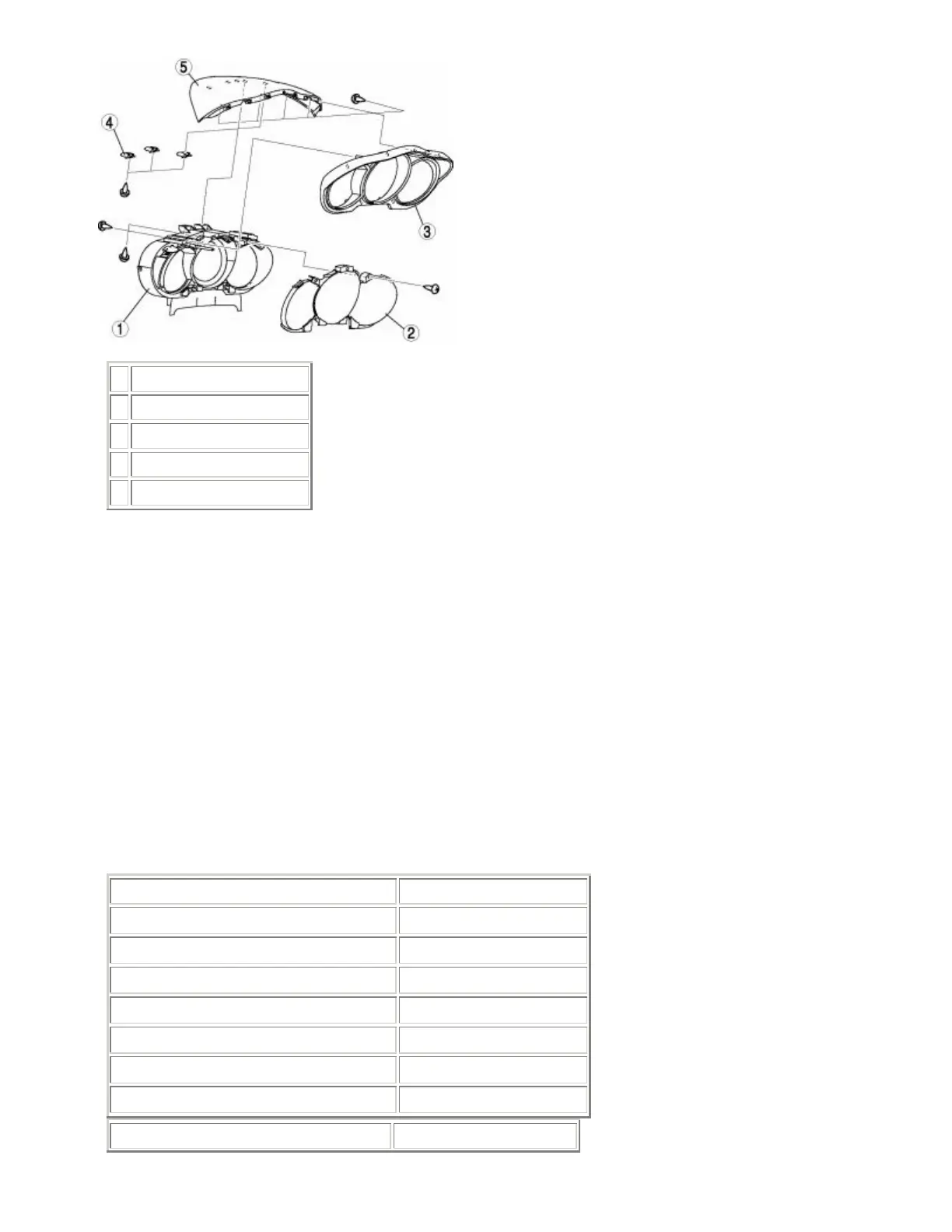

1 Instrument cluster unit
2 Lens
3 Cover
4 Clip
5 Meter hood
2. Assemble in the reverse order of disassembly.
INSTRUMENT CLUSTER INSPECTION
Speedometer
Using the input/output check mode
1. Inspect the speedometer by setting it to check code 12 of the input/output check mode.(See
INSTRUMENT CLUSTER INPUT/OUTPUT CHECK MODE .)
Using a speedometer tester
1. Adjust the tire pressure to the specification.
2. Using a speedometer tester, verify that the tester reading is as indicated in the table below.
Speedometer tester indication (km/h) Allowable range (km/h)
20
1921
40
3941
60
5961
80
7981
100
99101
120
119121
140
139141
Speedometer tester indication (mph) Allowable range (mph)
