Go to the next step.
3

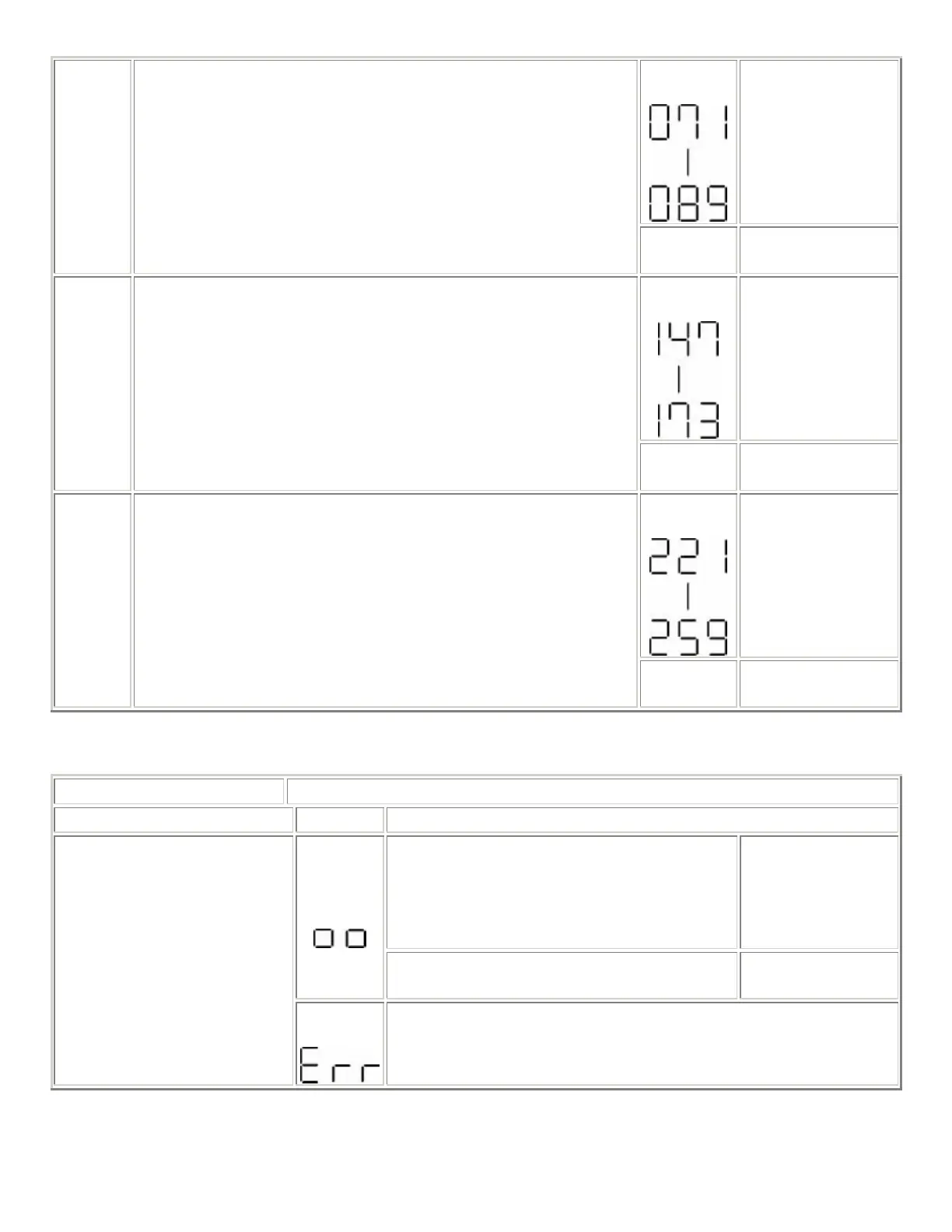

Using the SST (Fuel and thermometer checker) or resistor, input
80 ohms between instrument cluster terminals 2T and 2R, and 2T
and 2P.
Except
above
Replace the
instrument cluster.
Go to the next step.
4
Using the SST (Fuel and thermometer checker) or resistor, input
160 ohms between instrument cluster terminals 2T and 2R, and
2T and 2P.
Except
above
Replace the
instrument cluster.
Inspect the fuel
gauge sender unit.
5
Using the SST (Fuel and thermometer checker) or resistor, input
240 ohms between instrument cluster terminals 2T and 2R, and
2T and 2P.
Except
above
Replace the
instrument cluster.
Check code 23
Check code 23 Fuel gauge operation signal
INSPECTION CONDITION DISPLAY ACTION
The fuel gauge indicates status in the
following order approx. every 2 s .
• F→1/2→E→F (fixed)
The fuel gauge is
normal.
Except above
Replace the
instrument cluster.
After selecting check code 23,
wait approx. 2 s .
Replace the instrument cluster.
To Next Page
