Except above
Verify that the voltage of the instrument
cluster terminal 1K is B+ .
• If the voltage is as specified, replace
the instrument cluster.
• If the voltage is not as specified,
replace the following parts:'
 Ignition key illumination
 Wiring harness
(Batteryignition key
illuminationinstrument
cluster)
Check code 22
CAUTION:
• While inspecting with check code 22, the measured value is displayed in both odometer and tripmeter
segments of the odometer/tripmeter. Verify both readings.
Check code 22 Fuel level signal

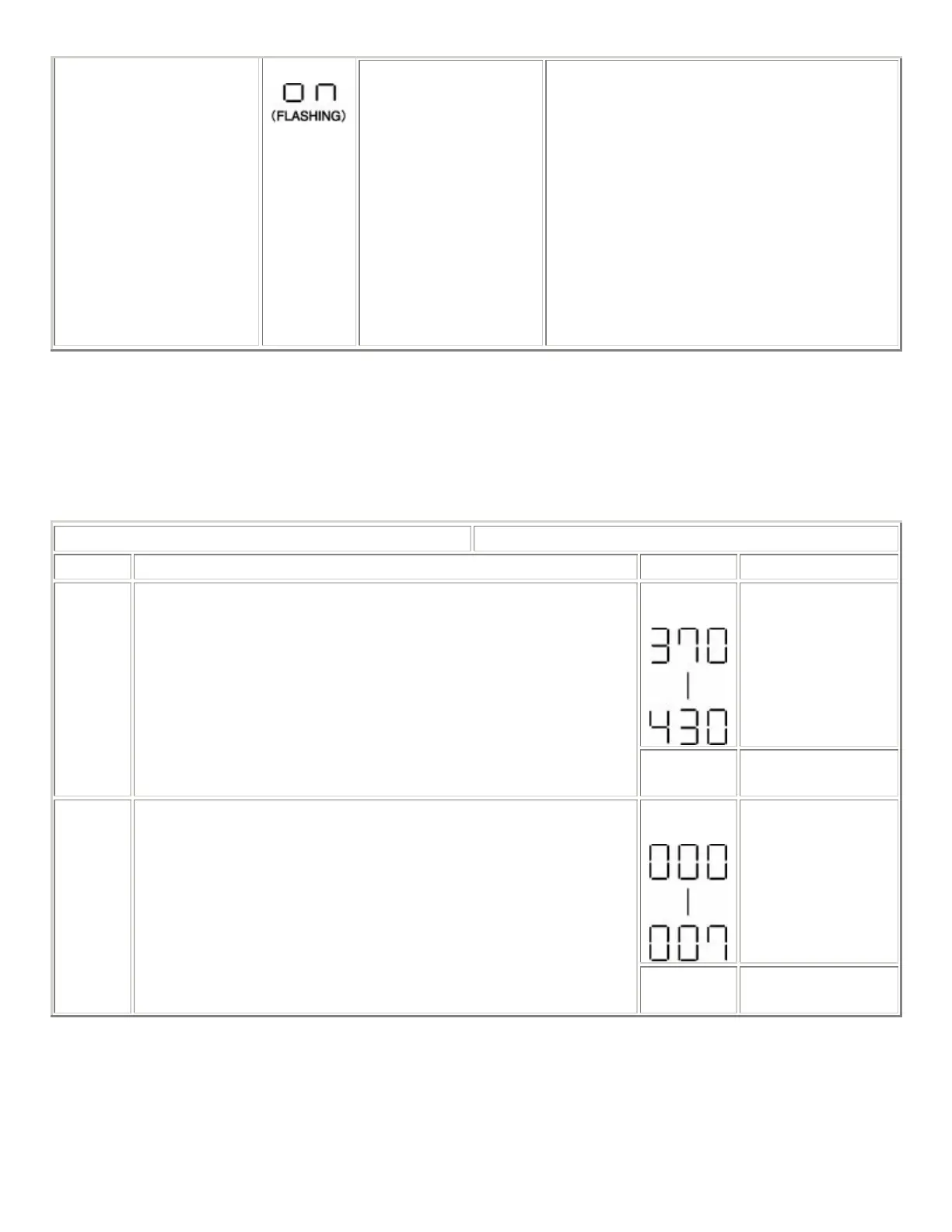

STEP INSPECTION CONDITION DISPLAY ACTION
Go to the next step.
1
Select check code 22 with the fuel gauge sender unit connector
disconnected.
Except
above
Replace the
instrument cluster.
Go to the next step.
2
Connect terminals 2T and 2R, 2T and 2P of the instrument
cluster.
Except
above
Replace the
instrument cluster.
