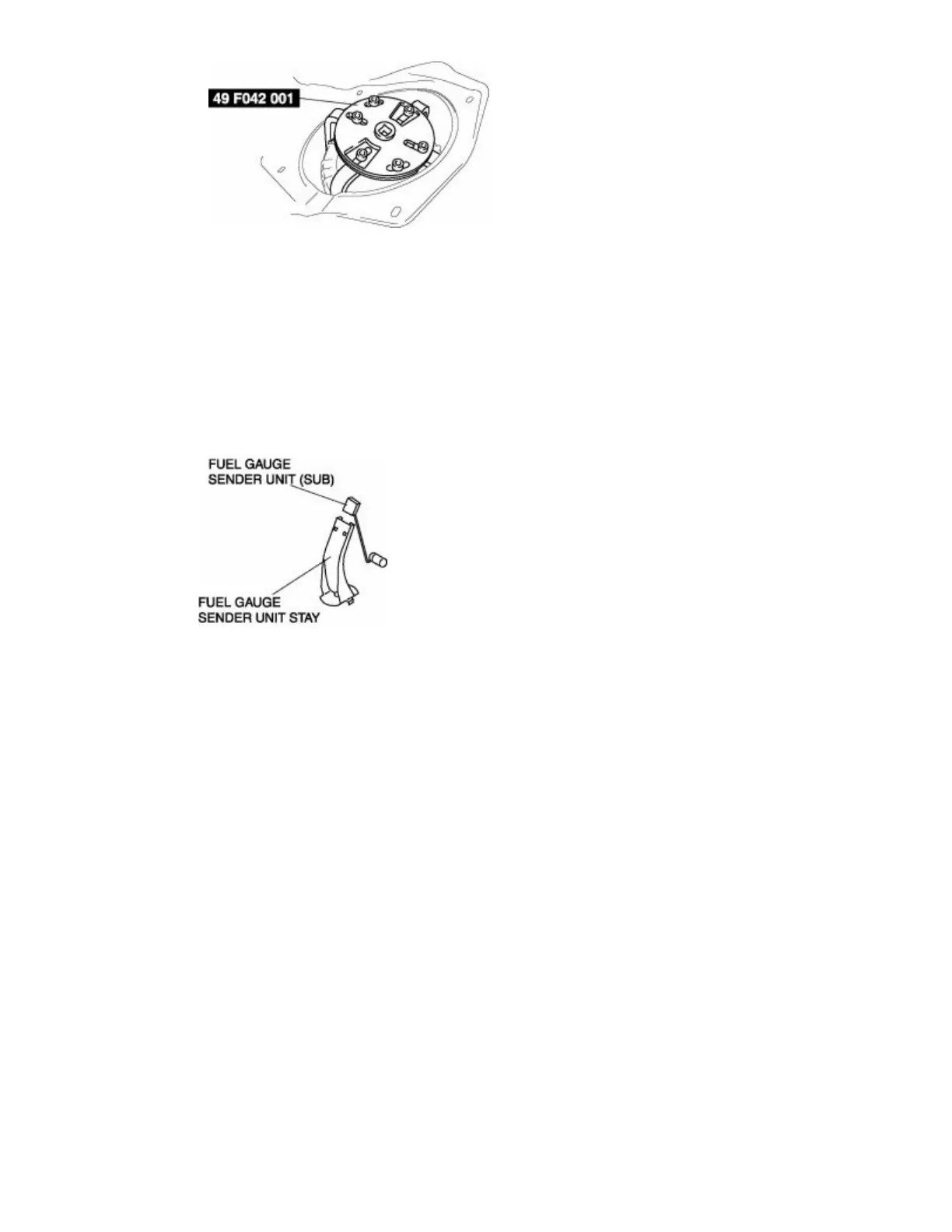

CAUTION:
• The cap could be damaged if the SST is used with any play between the cap and the SST.
Securely attach the SST so that there is no gap between the SST tabs and the side of the
cap.
m. Remove the packing.
n. Remove the fuel suction pipe bracket.
o. Drain any remaining fuel from the hole where the fuel suction pipe bracket was removed.
3. Rotate the fuel gauge sender unit stay clockwise to remove it.
CAUTION:
• A deformed fuel gauge sender unit arm could cause the fuel level to be indicated
incorrectly.When holding the fuel gauge sender unit stay, grasp any part other than the arm
portion.
4. Remove the fuel gauge sender unit (sub) from the fuel gauge sender unit stay.
Installation
1. Install the fuel gauge sender unit (sub) to the fuel gauge sender unit stay.
2. Insert the fuel suction pipe bracket into the installation hole.
To Next Page
