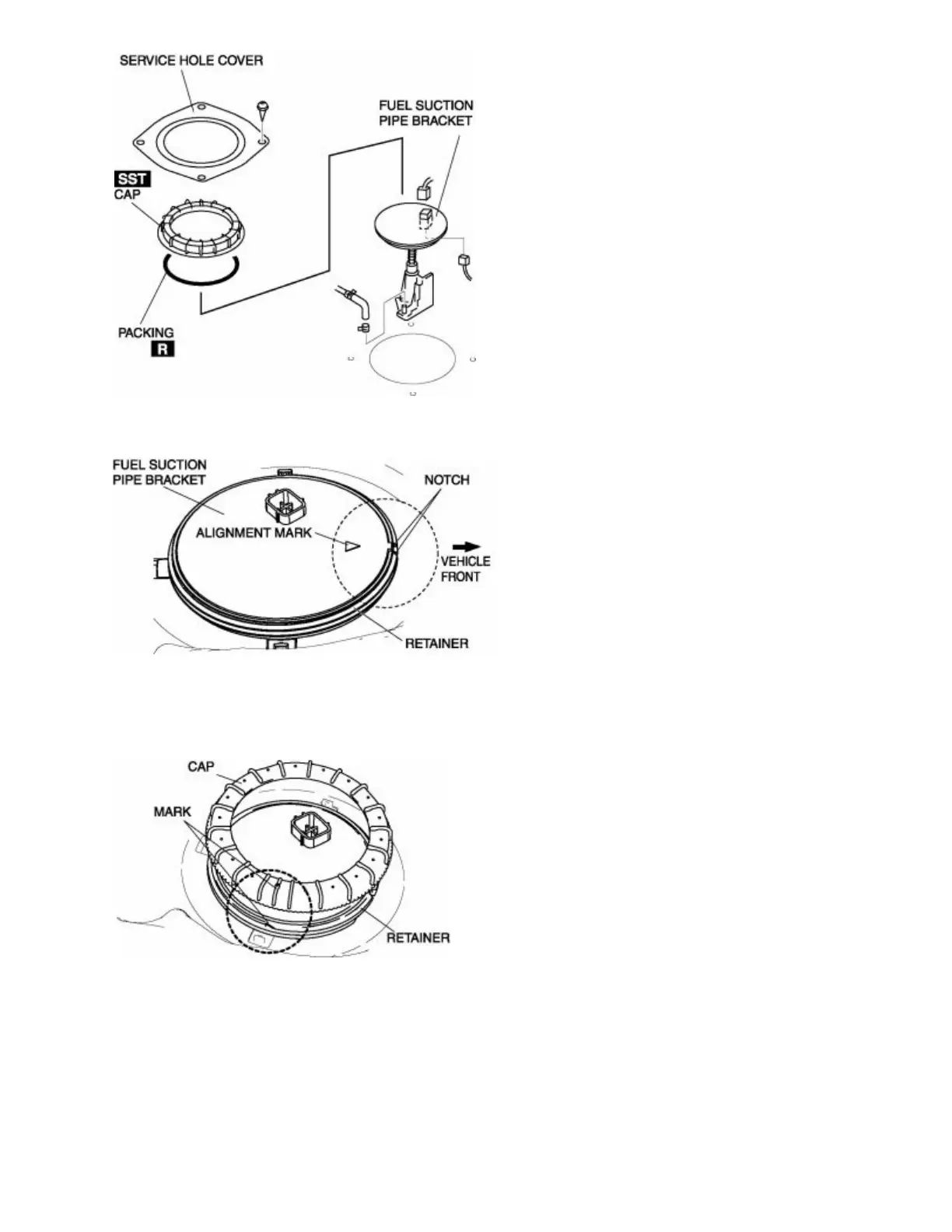

3. Align the fuel suction pipe bracket alignment marks and the retainer notch as shown in the figure.
4. Install the packing.
5. Align the positions of the cap and retainer as shown in the figure, and tighten them one full rotation by
hand.
• If the retainer and cap cannot be tighten by hand, remove the cap, verify that there is no damage
or misalignment on the retainer and cap, and then tighten again.
6. While keeping the alignment mark and the retainer notch aligned, tighten the cap to the rotation angle
and specified torque using the SST .
• If the specified torque cannot be obtained even when the cap is rotated to the specified rotation
angle, replace with a new cap and retainer and repeat Step 3.
