Mazda RX8 - Page 73

(See DOOR SASH FILM REMOVAL .)
(See DOOR SASH FILM INSTALLATION .)
5
Extractor chamber
(See EXTRACTOR CHAMBER REMOVAL/INSTALLATION .)
COWL GRILL
COWL GRILL REMOVAL/INSTALLATION

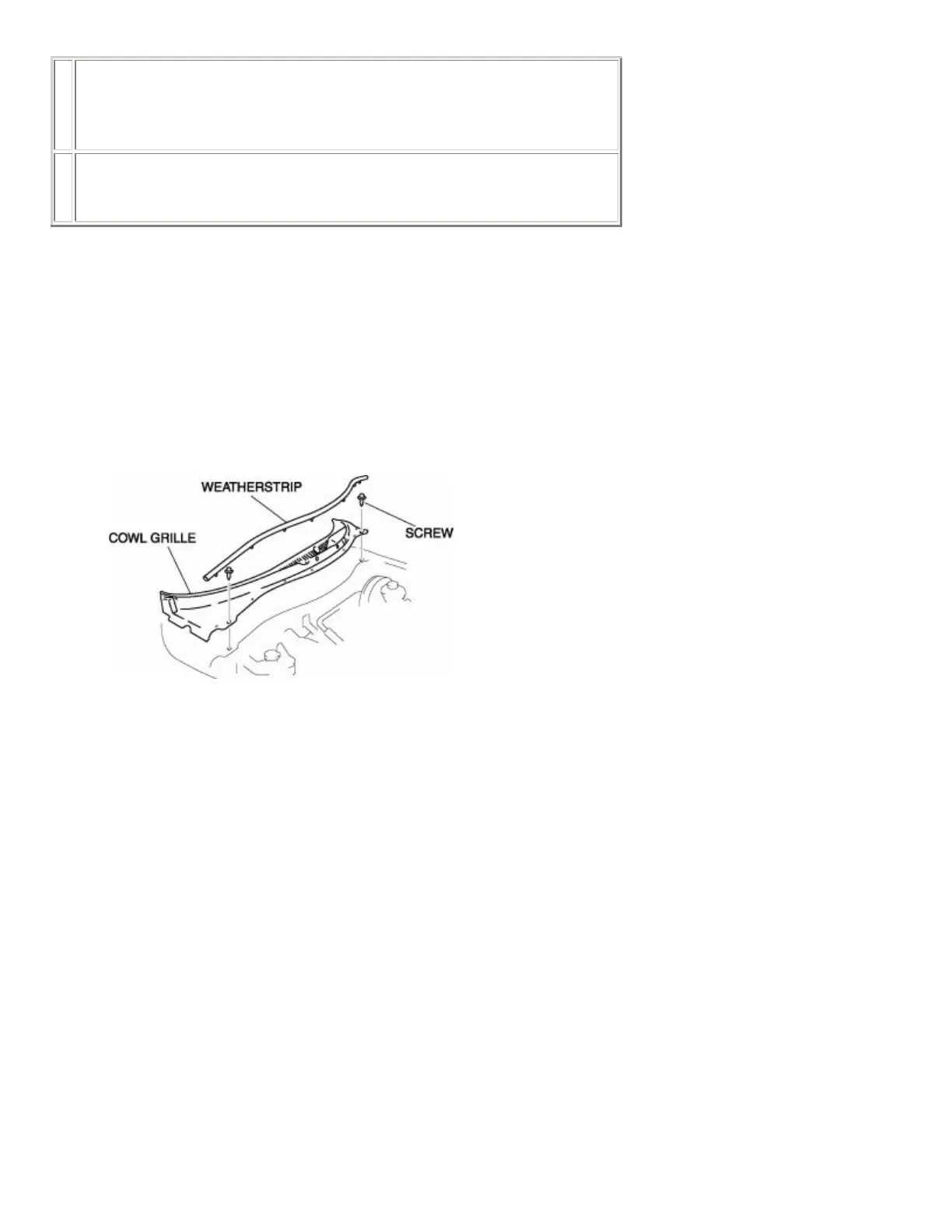

1. Remove the windshield wiper arm and blade.(See WINDSHIELD WIPER ARM AND BLADE
REMOVAL/INSTALLATION .)
2. Disconnect the windshield washer hose.(See WINDSHIELD WASHER HOSE
REMOVAL/INSTALLATION .)
3. Remove the screws.
4. Remove the weatherstrip.
5. Remove the cowl grille.
6. Install in the reverse order of removal.
EXTERIOR PART
EXTRACTOR CHAMBER REMOVAL/INSTALLATION
1. Remove the following parts:
a. Trunk end trim(See TRUNK END TRIM REMOVAL/INSTALLATION .)
b. Trunk side trim(See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
c. Rear combination light(See REAR COMBINATION LIGHT REMOVAL/INSTALLATION .)
d. Rear bumper(See REAR BUMPER REMOVAL/INSTALLATION .)
2. Detach clips A by squeezing them from inside the vehicle, and remove the extractor chamber from the
body.
(w) RX-8 Body
Page 73
