3. Install in the reverse order of removal.
EXTERIOR MOLDING

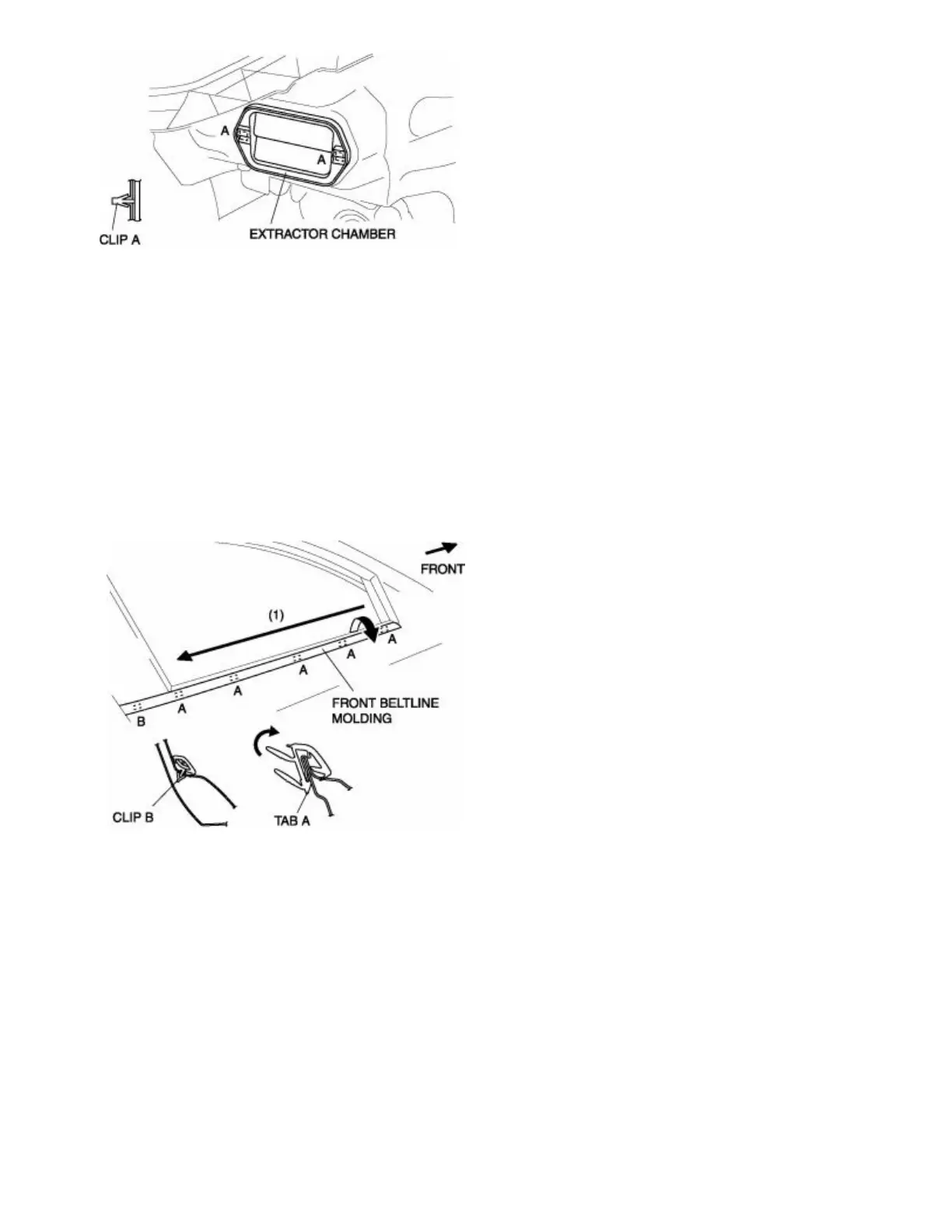

FRONT BELTLINE MOLDING REMOVAL/INSTALLATION
1. Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION .)
2. Remove the power outer mirror installation screws and move the mirror to access the front end of the
front beltline molding. (See POWER OUTER MIRROR REMOVAL/INSTALLATION .)
3. While partially peeling back the front beltline molding, detach tabs A along the direction (1) shown in
the figure.
4. Remove clip B and front beltline molding.
5. Install in the reverse order of removal.
ROOF MOLDING REMOVAL
1. Detach the roof molding from the T-stud at section A, using a flathead screwdriver or equivalent tool.
2. While pulling the roof molding up, detach it from the clips at sections B, and then remove the roof
molding.
