2. If the sealant has come off completely in any one place, apply some primer after degreasing, and allow it
to dry for approx. 30 min .Then apply a 2 mm {0.08 in} thickness of sealant.
3. Clean and degrease an approx. 50 mm {2.0 in} wide strip along the perimeter of the windshield and the
bonding area on the body.

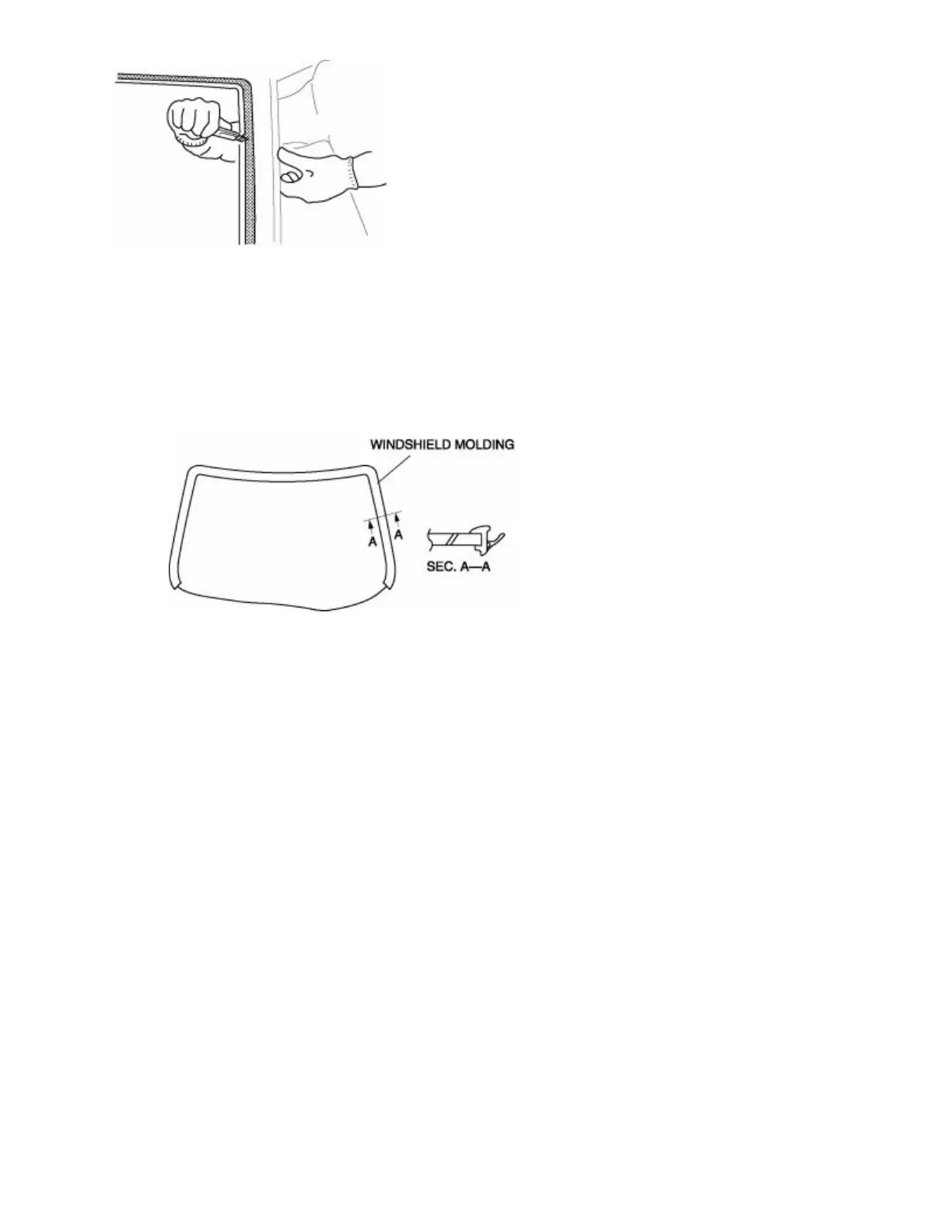

4. If installing a reused windshield, perform the following procedure:
a. Attach the pins to the seating positions where marked during removal.
b. Install the windshield molding.
5. Use only glass primer on the glass, and body primer on the body and the molding, then allow it to dry
for approx. 30 min .
CAUTION:
• Keep the area free of dirt, water and grease, and do not touch the surface. Otherwise, the primer
may not properly bond to the surface of the glass and body, causing leaks to occur.
