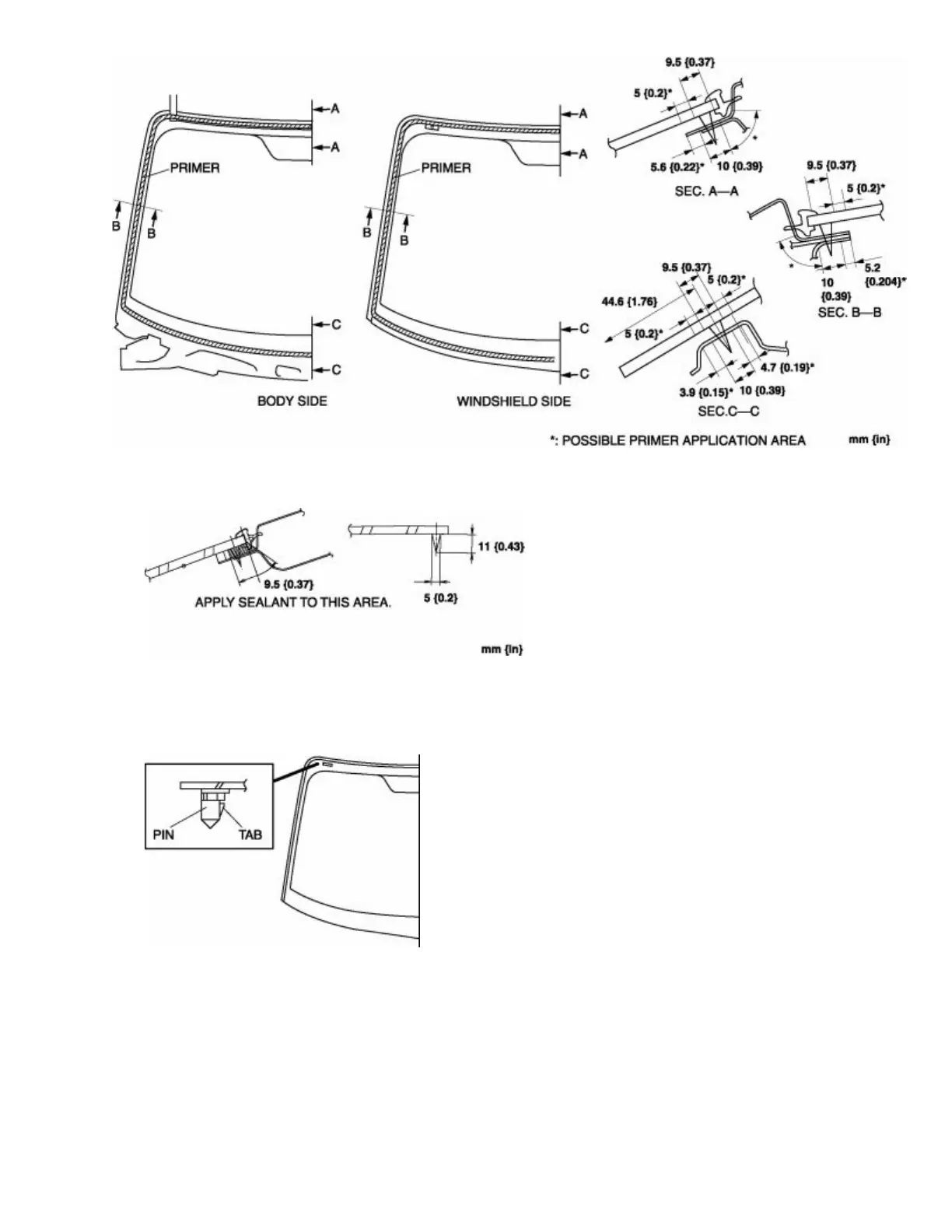

6. Apply sealant to the glass surface as shown in the figure.
7. Insert the positioning pins to the body, then install the windshield.
8. Press the windshield pins to engage the tabs to the body.
9. Press completely along the perimeter of the glass so that the measurement of the molding lip gap is
within specification.
