Mazda RX8 - Page 91

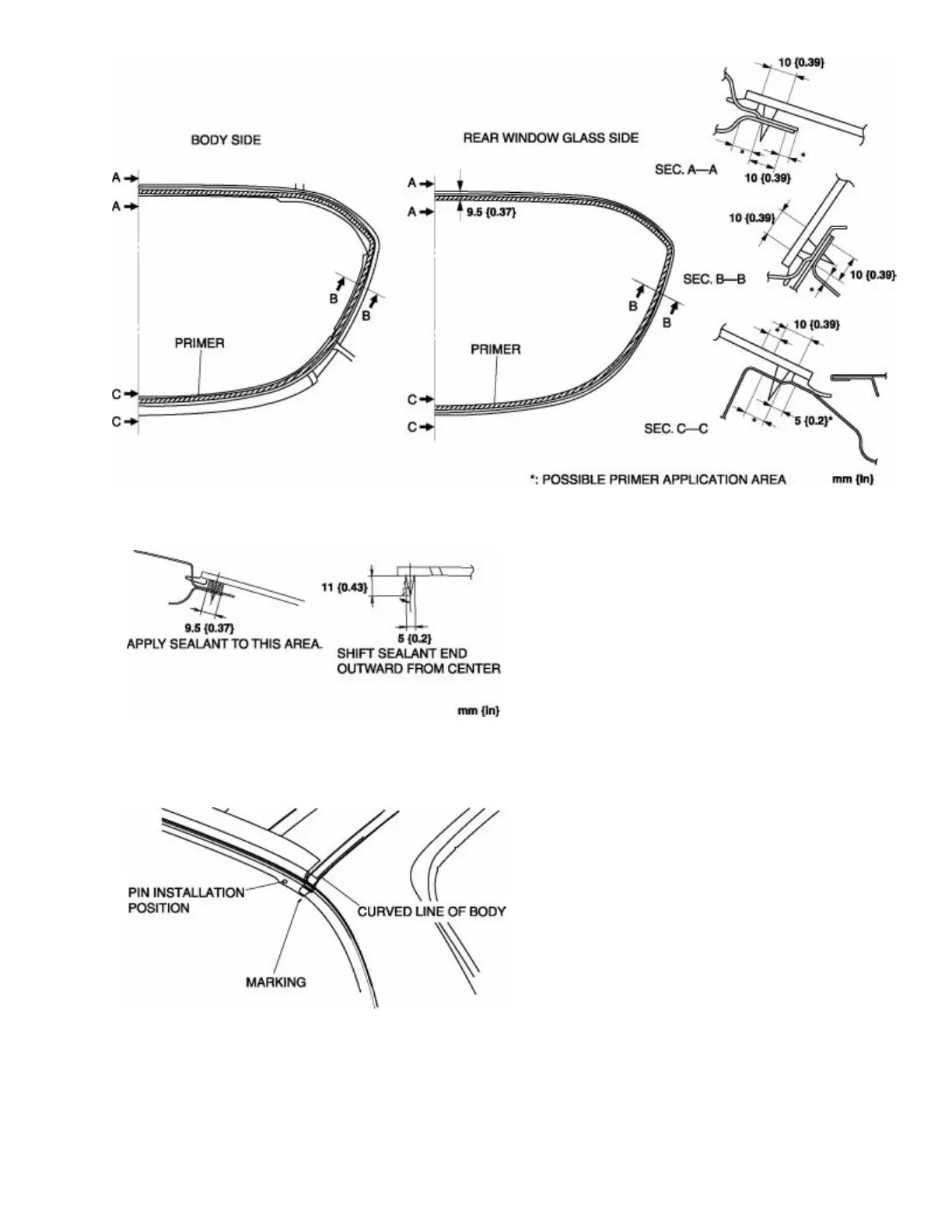

7. Apply sealant to the glass surface as shown in the figure.
8. Position the marking on the rear window glass and the curved line of the body (roof molding) left and
right so that they are aligned.
9. Insert the pin into the body (1), and lower the rear part (2).
(w) RX-8 Body
Page 91
