h. Attach the pins to the seating positions where marked during removal.

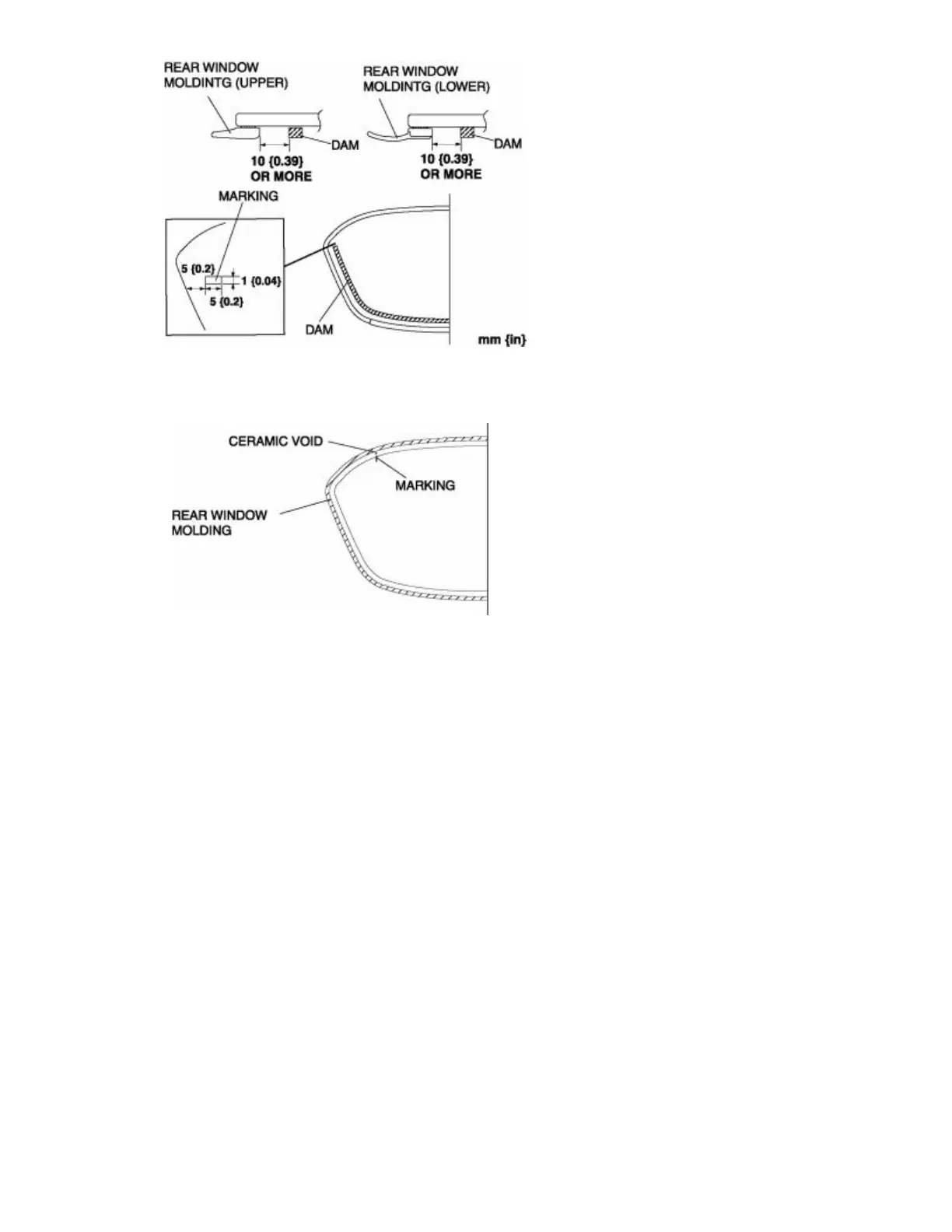

5. Place a mark at the point on the rear window glass indicated in the figure.
6. Use only glass primer on the rear window glass, and body primer on the rear window molding as shown
in the figure. Allow it to dry for approx. 30 min .
CAUTION:
• Keep the area free of dirt, water and grease, and do not touch the surface. Otherwise, the primer
may not properly bond to the surface of the glass and body, causing leaks to occur.
