DOOR GLASS
FRONT DOOR GLASS REMOVAL/INSTALLATION

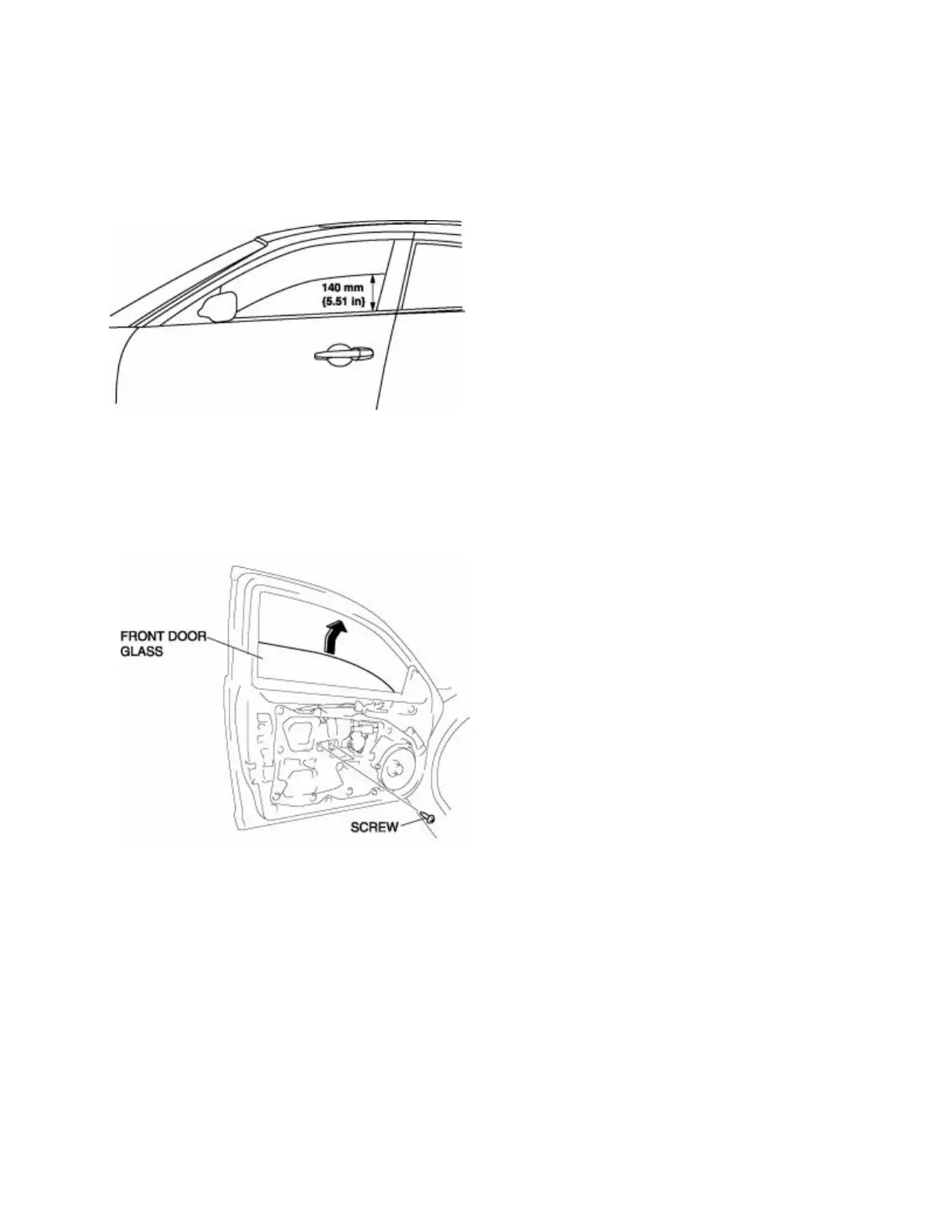

1. Position the front door glass so that the distance between the top of the front door glass and top of the
front beltline molding is 140 mm {5.51 in} .
2. Disconnect the negative battery cable.
3. Remove the inner garnish.(See INNER GARNISH REMOVAL/INSTALLATION .)
4. Remove the front door trim.(See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
5. Remove the hole cover.
6. Remove the screws.
7. Lift the front door glass up, then remove it while tilting it in the direction of the arrow.
8. Install in the reverse order of removal.
REAR DOOR GLASS REMOVAL/INSTALLATION
1. Remove the inner handle cover.
2. Remove the rear door lower trim.(See REAR DOOR LOWER TRIM REMOVAL/INSTALLATION .)
3. Remove the rear door upper trim.(See REAR DOOR UPPER TRIM REMOVAL/INSTALLATION .)
4. Pull up the rear door weatherstrip and remove the screw.
