Connect the power cable to the
positive battery terminal. The
power cable must be fused
within 18 inches of the battery
terminal.
Re-connect the negative
battery terminal making sure it
is securely tightened.

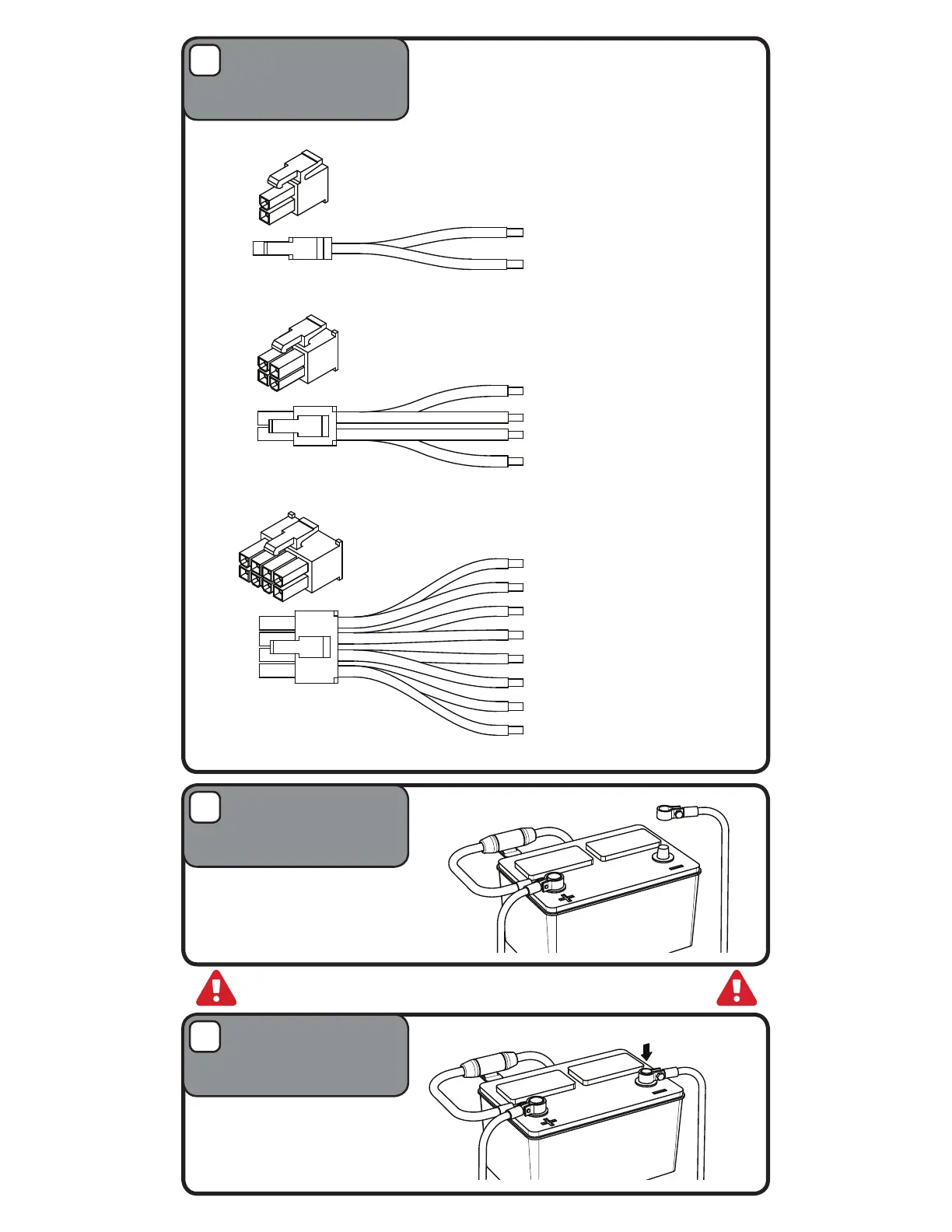

Connect the speaker cables to
the speaker output connectors.
Follow the diagram below
WKDWEHVW¿WV\RXUVSHDNHU
FRQ¿JXUDWLRQ
Positive Battery
Connection
Re-connect
Negative Battery
Terminal
Speaker
Connections
Be prepared to disarm your vehicle’s alarm and
to enter your radio / source unit code.
9
10
8
Speaker Positive - Gray
Left Positive - White
Left Negative - White / Black
Left Front Positive - White
Left Front Negative - White / Black
Right Positive - Gray
Right Negative - Gray / Black
Right Front Positive - Gray
Right Front Negative - Gray / Black
Left Rear Positive - Green
Left Rear Negative - Green / Black
Right Rear Positive - Purple
Right Rear Negative - Purple / Black
Speaker Negative - Gray / Black
NA2-400.1 / NA2-500.5
NA2-400.2
NA2-320.4 / NA2-500.5
