QUART S
6
ENG
• 7,5 cm (3“) Midrange-Speaker
• 60 Watts/RMS, 120 Watts/MAX
• Impedance 4 Ohms
• Frequency Response 400 - 5000 Hz
• Aluminum cover grille
• 6dB Bandpass In-Line Crossover
• Mounting Diameter 73 mm
• Mounting Depth 41 mm

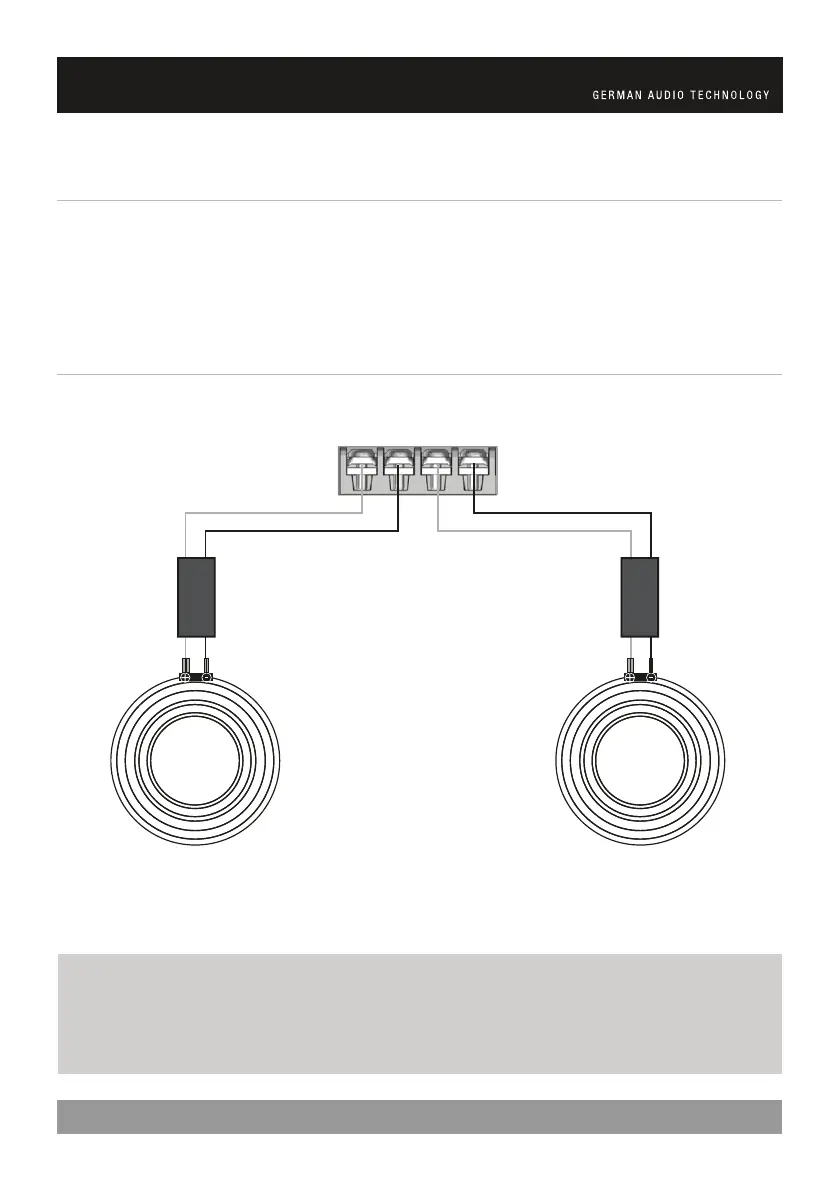

WIRING DIAGRAM QS75
SPECIFICATIONS QS75
Midrange speaker
In-Line
Crossover
In-Line
Crossover
Amplifier terminals
IMPORTANT:
Please pay attention to the correct polarity (+ or -) for all terminals and connections.
The loudspeakers must be operated with the supplied in-line crossover. If you are running the louds-
peakers active with an amplifier, note the recommended frequency values for the setting of the filters:
500-600 Hz, 12 dB for high-pass and 3000 Hz, 12 dB for low-pass.
+ L – + R –
R
+
+
–
+
Midrange speaker
L
–
+
–
–
