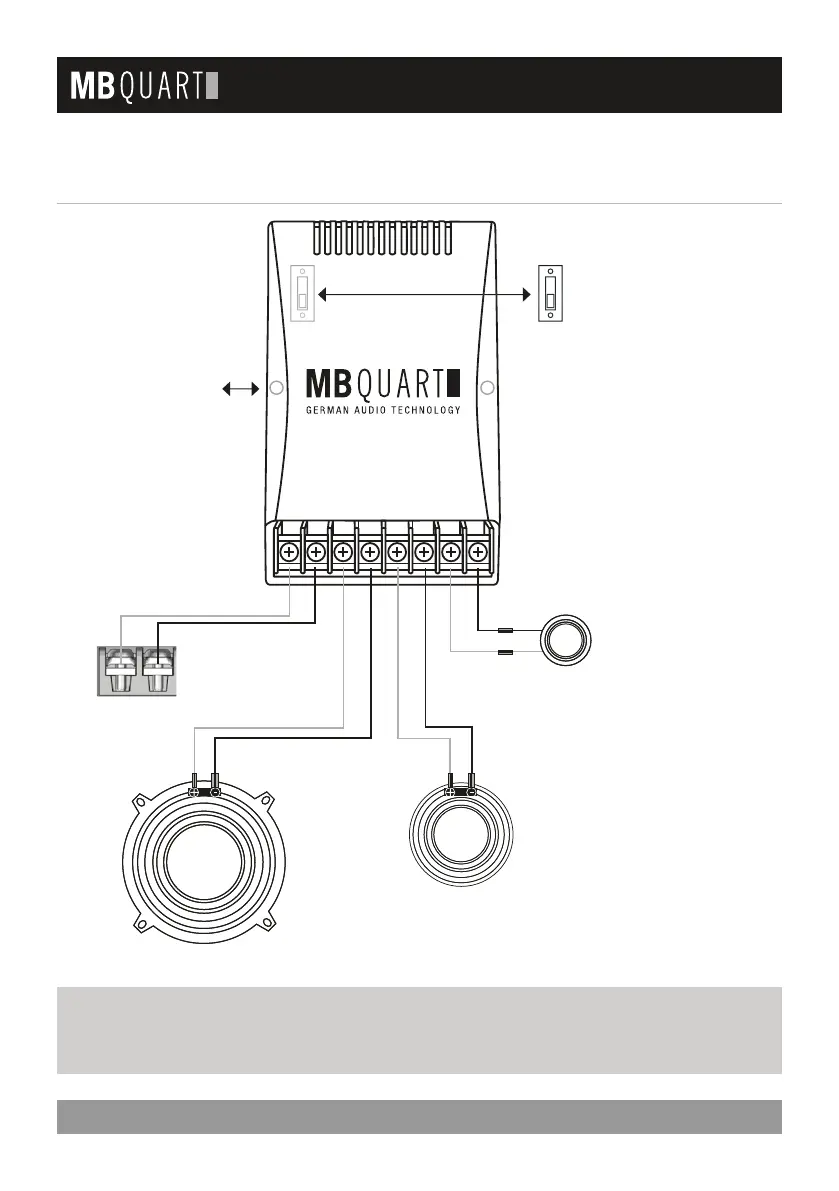

WIRING DIAGRAM QSW3 WITH QS75
2 x for R & L
IN+ W+ M+ T+IN– W– M– T–
+
–
Amplifier terminals
Tweeter level attentuator
Is located under the crossover cover
Mounting holes
are located under the
crossover cover
- 6dB attenuation
- 3dB attenuation
0dB no attenuation
Bass speaker
Midrange speaker
QS75
Tweeter
IMPORTANT:
Please pay attention to the correct polarity (+ or -) for all terminals and connections.
The midrange speakers and tweeters must must be operated with the CSW3 crossover.
