MB QUART Universal Overhead - Features; 6.5-Inch Coaxial Speakers; HDPE Composite Enclosure; Integrated Dome Light

Features
Bracket Installation
Clamp Option
• 4 6.5-Inch Coaxial Speakers
Composite construction midrange for deep and accurate midbass 0.75-inch
titanium dome tweeter for crystal clear-high frequencies
• High Impact HDPE Composite Enclosure
Ultra-compact design takes up minimal space
• Integrated Touch Controlled Dome Light
LED dome light provides necessary light inside your UTV

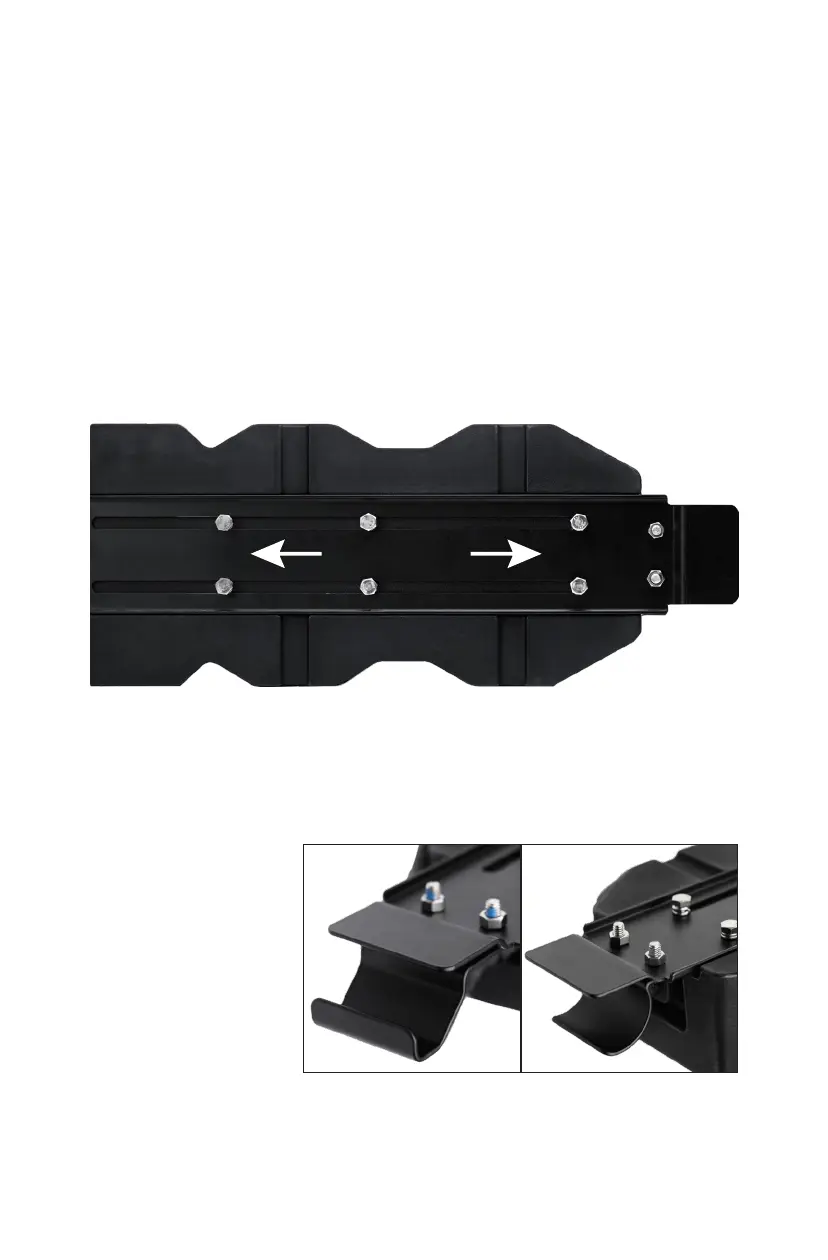

Attach either the short or long bracket to the back of the sound bar with
5/16” bolt and lock washers. Leave loose till nal installation to allow
bracket movement while installing in vehicle.
Install sound bar in vehicle adjusting top brackets so it is sitting on the ROPS.
Then with which ever clamp your vehicle needs attach it to the at bracket with
a 5/16” bolt, lock washer and nut.
When the bolts are loosened, the bracket can slide to accommodate a variety
of roll cages whose inside roll bar dimension is between 37.25" - 58.25" for
the MBQOH-33-1, 44.25" - 61.25" for the MBQOH-41-1, and 49.25" - 66.25" for
the MBQOH-46-1. Once the proper width has been established, these bolts
should be retightened to a torque specication of 40-45 inch/lbs.
Choose the appropriate
bracket for your vehicle
(prole or round).
Each bracket will be
labeled as:
A – 1.5” Diameter
B – 1.75” Diameter
C – 2” Diameter
D – Prole Tube
