MBW 2000 - Technical Service and Repair; Exciter Removal and Disassembly

- 8 -

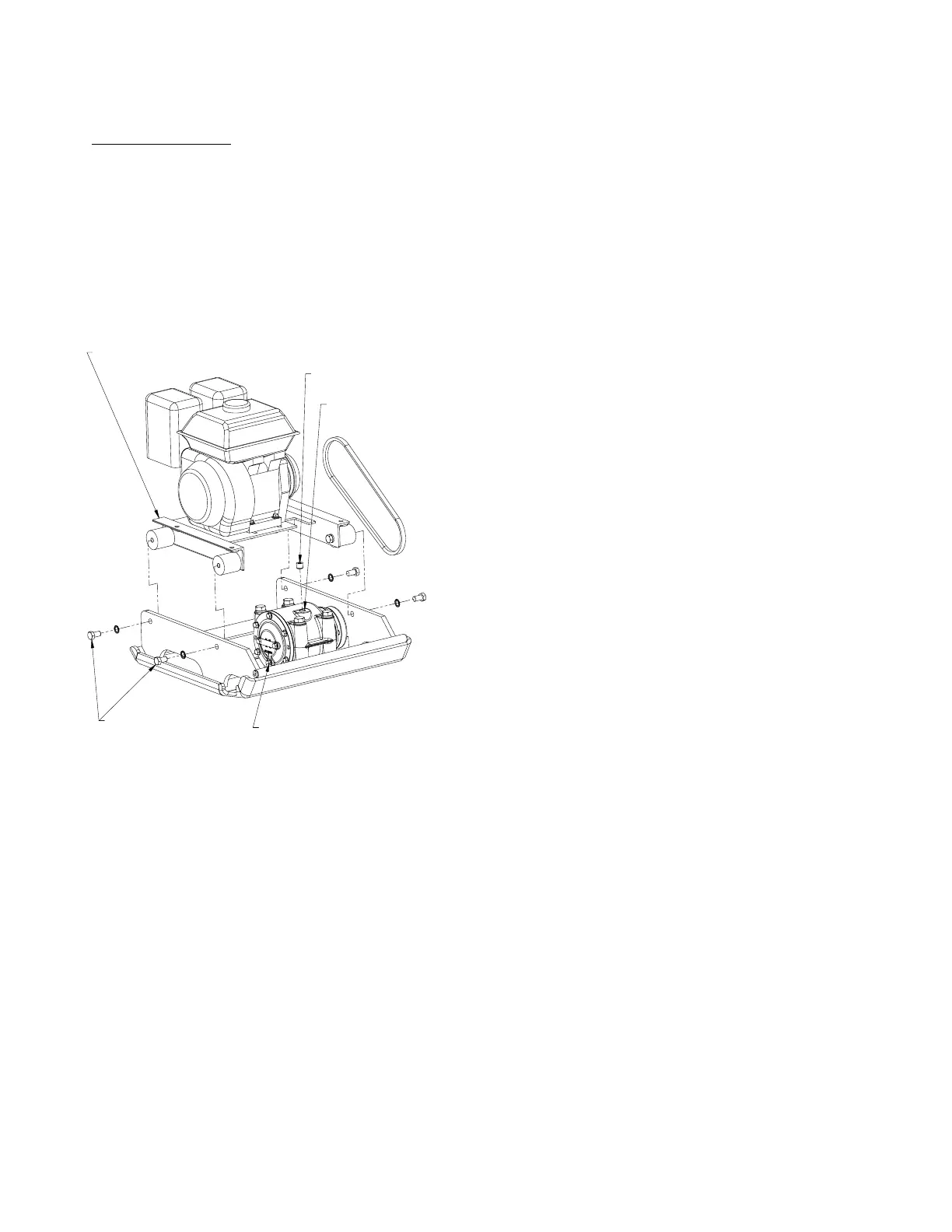

ASSEMBLY
ENGINE DECK
1/2" HEX HEAD
CAP SCREWS
OPTIONAL OIL DRAIN
(3550 PLATE ONLY)
FIGURE 3
PIPE PLUG
OIL FILL/ DRAIN
HOLE
4. Clean all dirt and debris from exciter to prevent
contamination of exciter oil.
5. Remove pipe plug from top of exciter housing. Tilt
plate housing upside down to drain oil from housing.
6. (Optional 3550 Only
) Remove oil drain screw and
brass washer from exciter rear cover. Tilt bottom
plate housing on it’s side to drain oil from housing.
After draining oil, return bottom plate housing to the
upright position and replace oil drain screw and
brass washer.
7. Return plate housing to the upright position.
8. Fill exciter with MBW Ground Pounder® exciter oil to
level specified in the Fluid Levels section of this
manual.
9. Apply pipe sealant to pipe plug and reinstall into top
of exciter housing.
10. Reinstall engine deck assembly, belt and roll cage
assembly. If equipped with water tank reattach hose
to spray bar.
