CLOSE-UP VIEW
COIL FINS

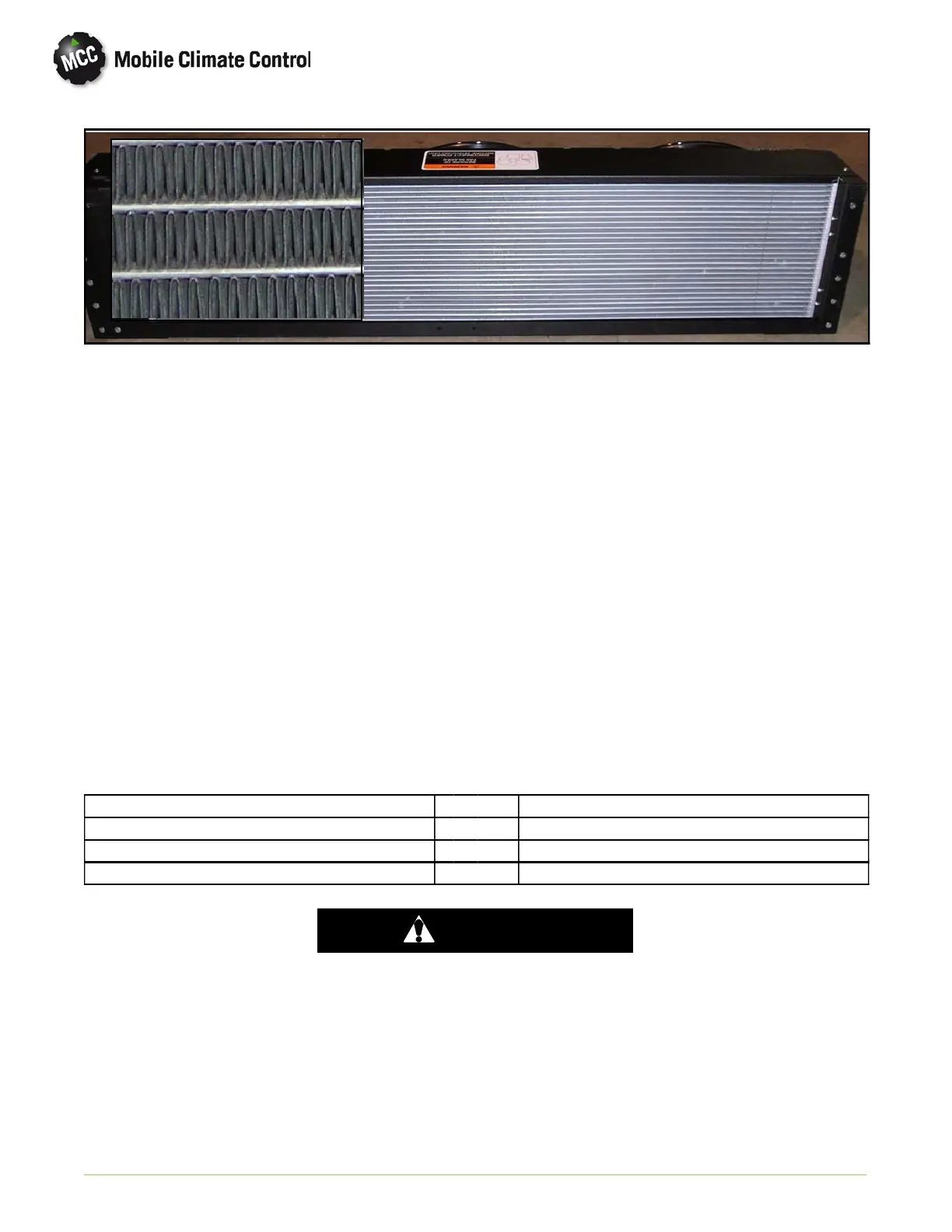

Figure 4-1 Micro-Channel Style Condenser Assembly
The data listed in Table 4-1 trough Table 4-3 is based on a 20 foot liquid line. Increase the charge by 0.5 pound
for each additional 10 feet of liquid line.
After determining the approximate charge using the above tables, refer to “System Performance Chart” (Table 4-5)
to determine if the correct charge has been obtained.
4.9.1 Evaporator Tie-In
When an after market in-dash evaporator is added to a standard system the refrigerant charge will increase by
approximately 1 pound.
If attempting to use a CM-2 condenser with a tie-in call Mobile Climate Control technical support for an
application review.
NOTE
The above chart is based on a 20 foot liquid line. Increase the charge by 0.5 pound for each additional 10 feet of
liquid line.
When an after market evaporator or in-dash evaporator is added to a standard system the refrigerant charge will
increase by approximately 1 pound.
If attempting to use a CM-2 condenser with a tie-in call Mobile Climate Control technical support for an
application review.
Table 4-4 Compressor Oil Type & Part Numbers
Manufacturer Oil Type CTAC Part Number
Seltec - Valeo - ICE - Zexel - Sanden PAG 46-50006-00
Alma (A-6) PAG 46-50004-00
05G & 05K Bus & 06D POE 46-50008-00
CAUTION
Use only the exact oil specified by Mobile Climate Control. Use of oil other than that specified
will void the compressor warranty.
