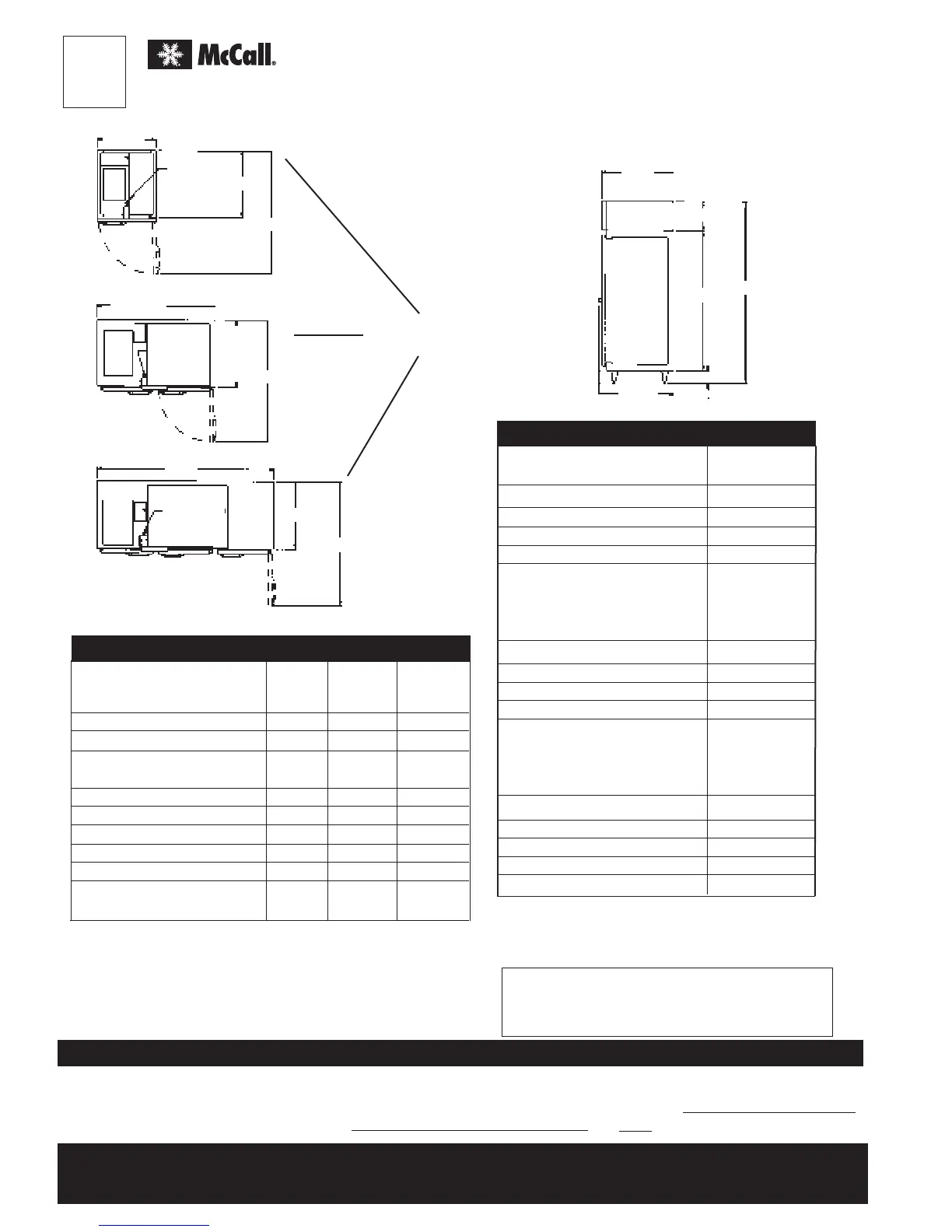

McCall 7-7020FT - Electrical and Dimensional Data; Electrical Specifications by Section; Dimensional Measurements; Options and Bidding

McCall Refrigeration / 81 West Holly Street / Parsons, TN 38363
Phone (731) 847-5570 / Fax (731) 847-9012 / 1-888-REACH-IN (1-888-732-2446) / www.mccallrefrigeration.com
January 2007 / Printed in U.S.A.
**Based on 90°F ambient and -20·F evaporating temperature
Certain options and accessories may affect UL/NSF
listing and electrical requirements.
Specifications subject to change without notice.
7000 SERIES
REACH-IN FREEZERS
 Heavy-duty 6 inch casters,
(cord connected models only).
 Left or right door hinge.

 Tray slides
 extra epoxy coated shelves.
OPTIONS
33.5
34.81
27.5
13.56
64.94
83.69 (2 & 3 SECTION
6
84.5
Stainless steel front, sides, floors, and door. Aluminum interior.
Adjustable doorstops. Camlift chrome-plated hinges. Chrome-
plated horizontal door handles with security lock. Exterior dial
thermometer (1000 series) dial thermometer (2000-4000 series).
Bidding Specifications
Model 7-7020FT
Model 7-7045FT
Model 7-7070F
SIDE VIEW
ELECTRICAL
One Section
Base Model Number 7-7020FT
Compressor HP 1/2
Voltage (60 hz, 1 ph) 115
Total Amperage: 11.9
BTU/HR** 1394
Cord connection - ANSI 5-15P
Two Section
Model Number 7-7045FT
Compressor HP 3/4
Voltage (60 hz, 1 ph) 115
Total Amperage: 16
BTU/HR** 2840
Cord connection - ANSI 5-20P
Three Section
Base Model Number 7-7070F
Compressor HP 1
Voltage (60 hz, 1 ph) 208/230
Total Amperage: 15.8
BTU/HR** 3450
Cord connection -
55
31.18
57.81
POWER
CONNECTION
82.5
31.18
57.81
POWER
CONNECTION
27.5
POWER
CONNECTION
31.18
57.81
TOP VIEW
Description
DIMENSIONS
One Two Three
Section Section Section
Net Capacity (cu.ft.) 22.4 49 72
Width: 27.5" 55" 82.5"
Height: with legs or casters 84.5" 84.5" 84.5"
Depth: cabinet only -
including controls 31.18" 31.18" 31.18"
Depth: over hardware 34.81" 34.81" 34.81"
Depth: door open 90° 57.81" 57.81" 57.81"
Net Door Opening: width 21.25" 21.25" 21.25"
Net Door Opening: height 58" 58" 58"
Adjustable Shelves: 3 6 9
Shipping Weight: 360lb. 520lb. 705lb.
AIA #
16008
*4-wire dual voltage required; 115 for lights, 208-230 for
compressor.
