SPECIFY MODEL NO. WHEN ORDERING PARTS REVISED DATEDATE

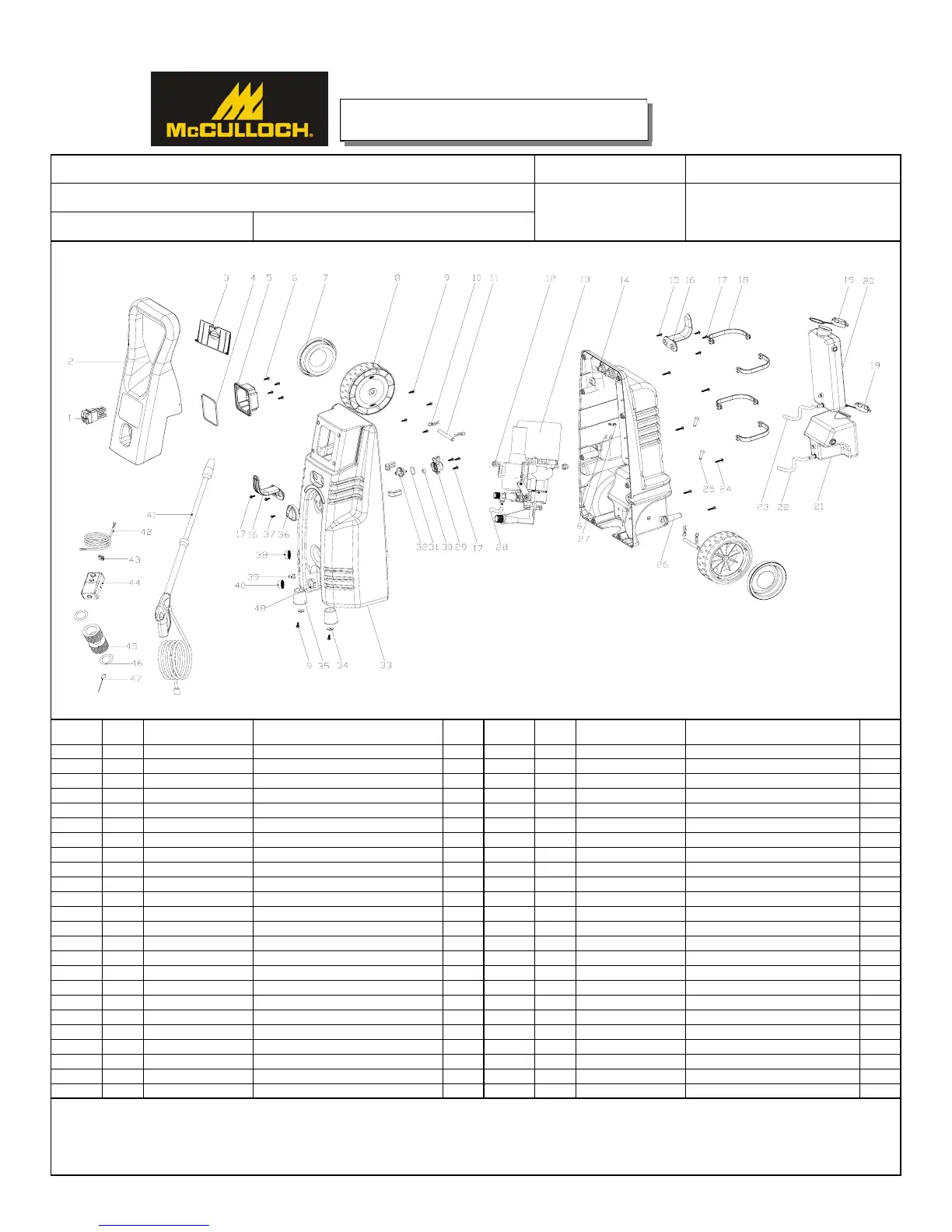

SERVICE SPARE PARTS LIST
High Pressure Washer
FHH20C
MODEL NO.
6/15/2009
V1
11/22/2007
SERVICE SPARE PARTS LISTSERVICE SPARE PARTS LISTSERVICE SPARE PARTS LIST
No.
STK
CODE
Parts No. Description
Q
No.
STK
CODE
Parts No. Description
Q
1 C 7022-140A04 SWITCH 1 25 C
7SVAB-08-20 SCREW 2
SERVICE SPARE PARTS LIST
2 C 7068-H20C01 HANDLE 1 26 B
7059-H20C01 CORD GUARD 1
3 C 7017-H20C02 COVER 1 27 C
7043-140A01 CORD CLAMP 1
4 B 7012-H20C01 RUBBER PLUG 1 28 B
7129-H20C03 SINPHON III 1
5 C 7017-H20C01 COVER, SWITCH 1 29 C
7072-H20C01 HYDROPAULIC SEAT 1
6 C 7SLABB3.5-12 SCREW 6 30 B
7012-H20C02 RUBBER PLUG 2
7 C 6017-BQ0103 WHEEL COVER 2 31 B
7076-H20C01 O RING 1
8 C 6137-160A01 WHEEL 2 32 C
7072-H20C02 KNOB SEAT 1
9 C 7SLABB04-16 SCREW 6 33 C
7003-H20C01 HOUSING, FRONT 1
10 C 7PB-08-25 PIN 4 34 C
7WFZ-04-16 WASHER 2
11 C 7177-H20C01 WHEEL SHAFT 2 35 B
7014-H20C01 RUBBER PLUG 2
SERVICE SPARE PARTS LIST
12 C 7014-170A01 RUBBER PAD 2 36 C
7134-H20C01 KNOB 1
13 C 7228-H20C01 MOTOR & HIGH PRESSURE PUMP ASS'Y 1 37 C
7SDABB04-10 SCREW 1
14 C 7003-H20C02 HOUSING, AFTER 1 38 C
7067-140A05 OUTLET CAP 1
15 C 7SLABB04-16 SCREW 2 39 B
7183-140A02 FILTER GAUZE 1
16 C 7161-H20C01 HOOK 2 40 C
7154-140A04 INLET CAP 1
17 C 7SLABB3.5-16 SCREW 7 41 C
7228-H20B01 WASH MANCHINE HAND ASS'Y 1
18 B 7004-H20C01 FRAME 4 42 C
7011-170A01 POWER CORD 1
19 C 7086-H20C01 CAP, WASHING JAR 2 43 C
7059-140A03 PROTECTOR 1
20 C 7066-H20C01 WASHING JAR I 1 44 C
7247-180A02 CIRCUIT-BREAKER 1
21 C 7066-H20C02 WASHING JAR II 1 45 C
7154-180A01 CONNECTOR 1
SERVICE SPARE PARTS LIST
22 B 7129-H20C01 SINPHON I 1 46 B
7076-180001 WASHER 2
23 B 7129-H20C02 SINPHON II 1 47 B
6197-160A02 CLEANING PROBE 1
24 C 7SLABB04-20 SCREW 6 48 C
7236-170A01 NUT 1
STK Codes are:
A - consumable parts B - one year broken parts C - three years broken parts D - five years broken parts E- Not easy broken parts
SERVICE SPARE PARTS LIST
To Next Page
