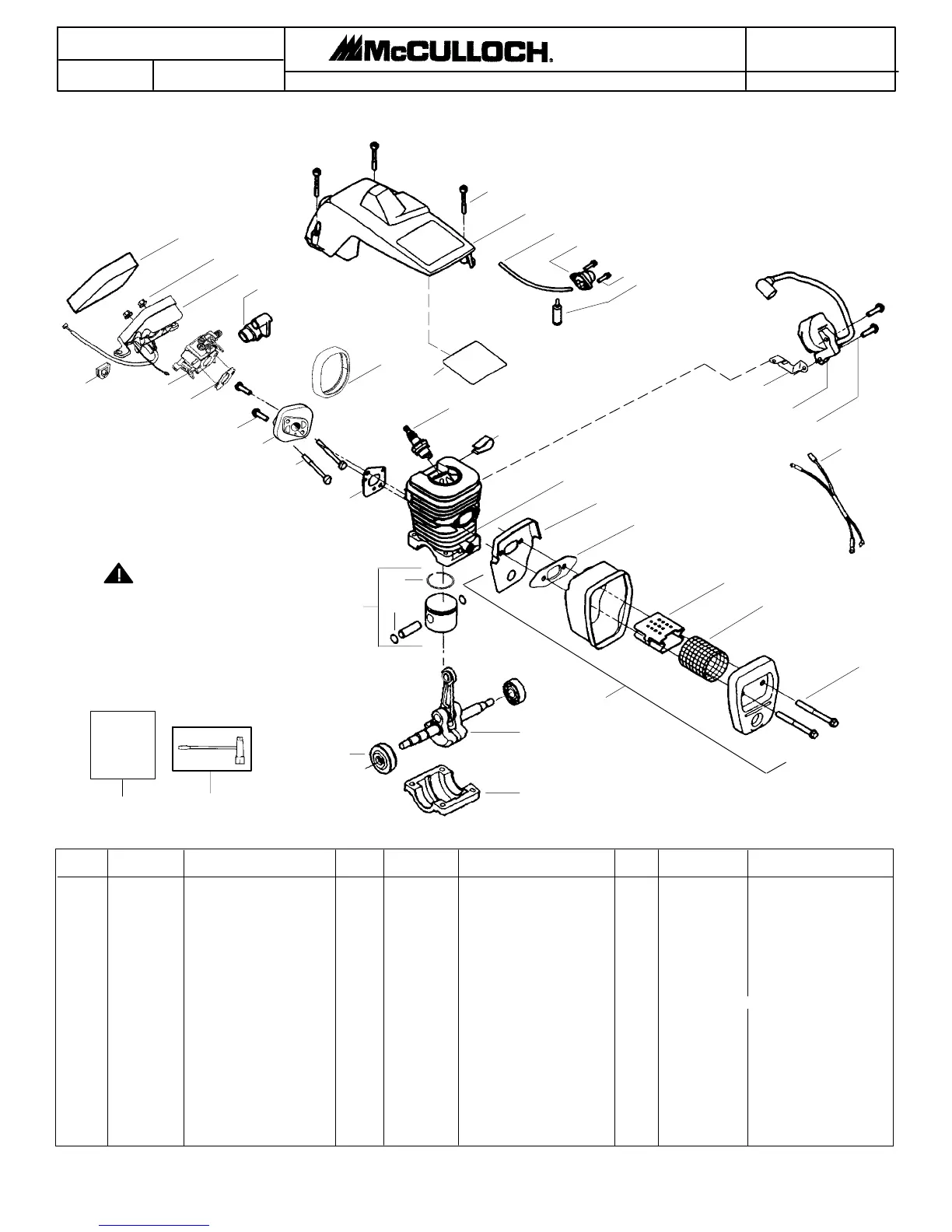

McCulloch mac 338 - Engine Cylinder and Carburetor; Cylinder and Muffler Components; Carburetor and Air Filter System; Piston and Spark Plug

2
Note: Illustration may differ from actual model due to design changes
PARTS LIST NO.
PAGE NO.
CHAIN SAW MODEL(s)
530165089
MAC CAT 338
DATE
3/04/08
Replaces
r PARTS LIST
530165089 -- 3/07/07
1. 530016153 Screw
2. 530055638 Assy--- Cylinder Shield
(includes # 16)
3. 530069247 Kit--- Fuel Line (Small)
4. 530071835 Kit--- Air Purge (Incl. #5)
5. 530015780 Screw
6. 530095646 Assy--- Fuel Pick---up
7. 530047442 Strap---Ground
8. 530039198 Ignition Module
9. 530015814 Screw
10. 530057475 Assy--- Wire Harness
11. 530037793 Foam--- Air Filter
12. 530016101 Nut
13. 530057702 Assy---Air Box
14. 530035526 Grommet--- Carb Adjust
15. 530054144 Seal--- Carb Adapter
16. 530055698 Reflector--- Heat
17. 952030150 Spark Plug (RCJ ---7Y)
18. 530016136 Clip--- High Tension Lead
19. 530012550 Cylinder
20. 530049870 Backplate--- Muffler
21. 530069608 Gasket--- Muffler(kit)
22. 530037813 Diffuser--- Muffler
23. 530036103 Screen---Spark
24. 530016132 Bolt--- Muffler
25. 530047631 Grommet--- Throttle Cable
2 6 . --- --- --- K i t --- C a r b u r e t o r
545081885 Walbro (WT--- 891)
(Incl. Grommet)
27. 530069608 Gasket---Carb. (kit)
28. 530016386 Screw
29. 530049700 Carb. Adapter
30. 530016187 Screw
31. 530069608 Gasket--- Adaptor(kit)
32. 530038729 Ring--- Piston
33. 530015697 Retainer--- Piston Pin
34. 530071408 Kit--- Piston (Incl. 32 & 33)
Ref. Part No. Description Ref. Part No. Description Ref. Part No. Description
35. 530069608 Kit--- Engine Gasket
(Incl. 21, 27 & 31)
36. 530031135 Bar Wrench
37. 530056363 Assy--- Seal & Bearing
38. 530037935 Cap ---Crankcase
39. 530047062 Assy--- Crankshaft
40. 530047207 Assy--- Muffler
(Incl . 20 --- 24)
--- --- --- M a n u a l s
545123675 (Scan)
545123674 (Euro I)
545123673 (Euro II )
545123672 (Euro III)
545123679 (Euro IV)
545123678 (Euro V)
545123677 (Turkish)
545123676 (Russian)
11
1
14
4
3
10
18
31
34
32
38
37
17
5
Engine
Gasket
Kit
33
7
19
8
9
15
= NEW PART NUMBER FOR THIS IPLn
=
REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)K
30
29
28
27
26
13
12
35
2
6
22
23
40
21
39
24
Not Shown
25
20
16
36
All repairs, adjustments and maintenance not
described in the Operator’s Manual must be
performed by qualified service personnel.
WARNING
n
