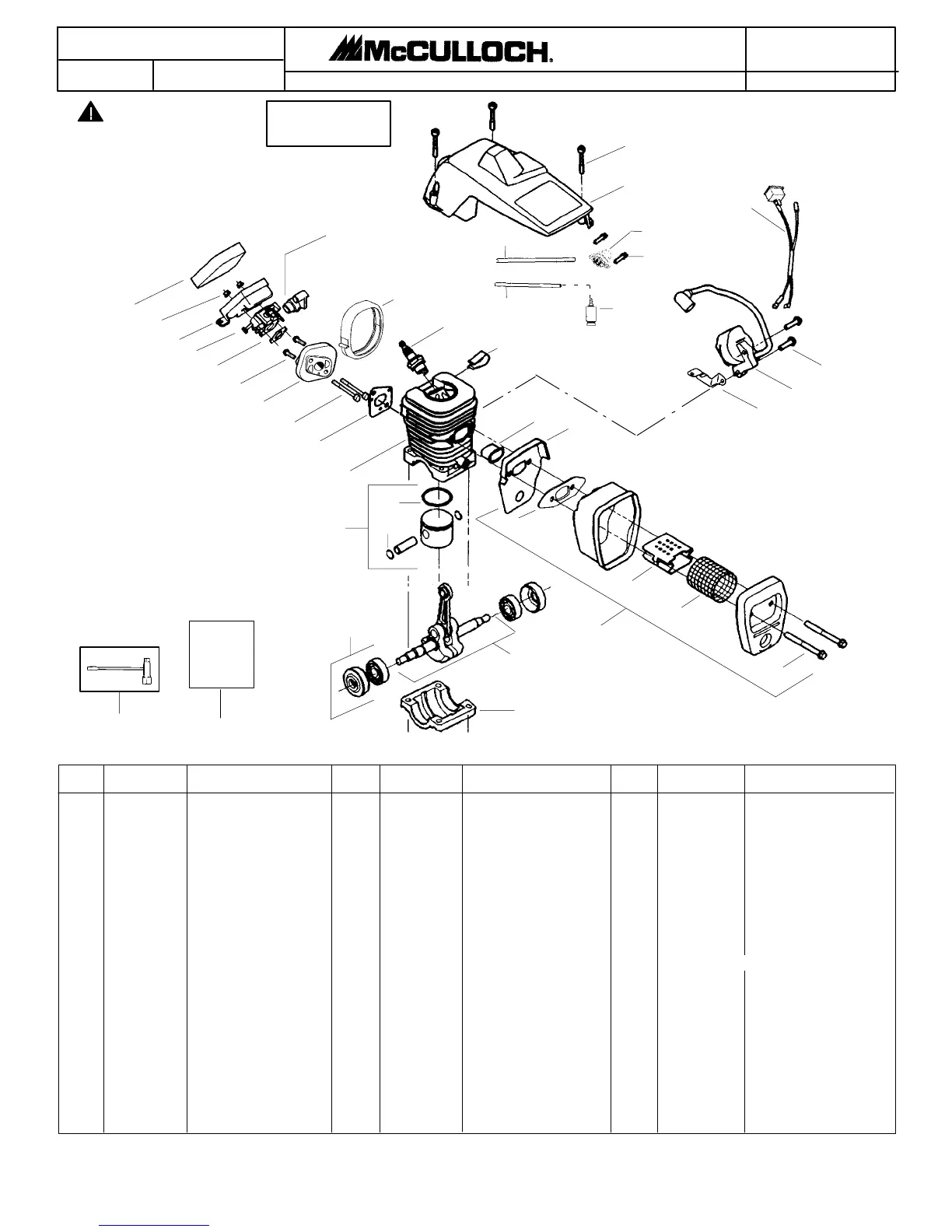

7
Note: Illustration may differ from actual model due to design changes
PARTS LIST NO.
PAGE NO.
CHAIN SAW MODEL(s)
530087882
MAC CA T
DATE
6/21/04
Replaces
PARTS LIST
87882 -- 4/19/04
335, 435, 440
1. 530016153 Screw
2. 530056966 Shield--Cylinder
3. 530047213 Assy--Air Purge
4. 530015780 Screw
5. 530095646 Assy--Fuel Pick--up
6. 530069247 Kit--Line Purge/Carb.
(Small Dia)
7. 530069216 Kit--Line Purge/Tank
(large line)
8. 530049244 Grommet--Carb Adjust.
9. 530054144 Seal--Carb Adapter
10. 952030150 Spark Plug (RCJ--7Y)
11. 530016136 Clip--High Tension Lead
12. 530049117 Assy--Wire Harness
(includes switch)
13. 530015814 Screw
14. 530039167 Module--Ignition
15. 530047442 Strap--Ground
16. 530037652 Insulator--Heat
17. 530049870 Back Plate--Muffler
18. 530016132 Screw
19. 530036103 Screen--Spark
20. 530037813 Diffuser--Muffler
21. 530069608 Gasket--Muffler (kit)
22. 530047207 Assy--Muffler
(Incl. 17--21)
23. 530047062 Assy--Crankshaft
24. 530037935 Cap--Crankcase
25. 530056363 Assy--Seal & Bearing
26. 530038729 Ring--Piston
27. 530015697 Retainer -- Piston Pin
28. 530071408 Kit--Piston -- (incl. 26--27)
29. 530012411 Cylinder
30. 530069608 Gasket--Carb.
Adapter (kit)
31. 530016187 Screw
32. 530049700 Carb. Adapter
33. 530016386 Screw
34. 530069608 Carb. Gasket (kit)
35. ------ Kit--Carburetor
530069722 (WT--391)
Ref. Part No. Description Ref. Part No. Description Ref. Part No. Description
36. 530047604 Housing--Air Filter
37. 530016101 Nut
38. 530037793 Air Filter -- Foam
39. 530031135 Wrench--Bar
40. 530069608 Kit--Engine Gasket
(incl. 34,30,21)
530163664 Manual-- (Scan)
530163665 Manual -- (Euro I)
530163666 Manual -- (Euro II)
530054781 Decal--W arning
530038478 Cap--limiter low(tan)
530038479 Cap--limiter high(brn)
38
37
36
35
34
33
32
31
1
2
8
3
12
10
30
29
28
26
27
23
25
24
11
4
6
Engine
Gasket
Kit
40
5
16
21
17
22
20
19
18
14
13
15
39
Not Shown
9
7
= NEW PART NUMBER FOR THIS IPLn
=
REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)
K
All repairs, adjustments
and maintenance not de-
scribed in the Operator’s
Manual must be per-
formed by qualified ser-
vice personnel.
WARNING
TYPE 2
