18
REPAIR PARTS
TRACTOR - - MODEL NUMBER MC11T94 (96011001501), PRODUCT NO. 960 11 00-15

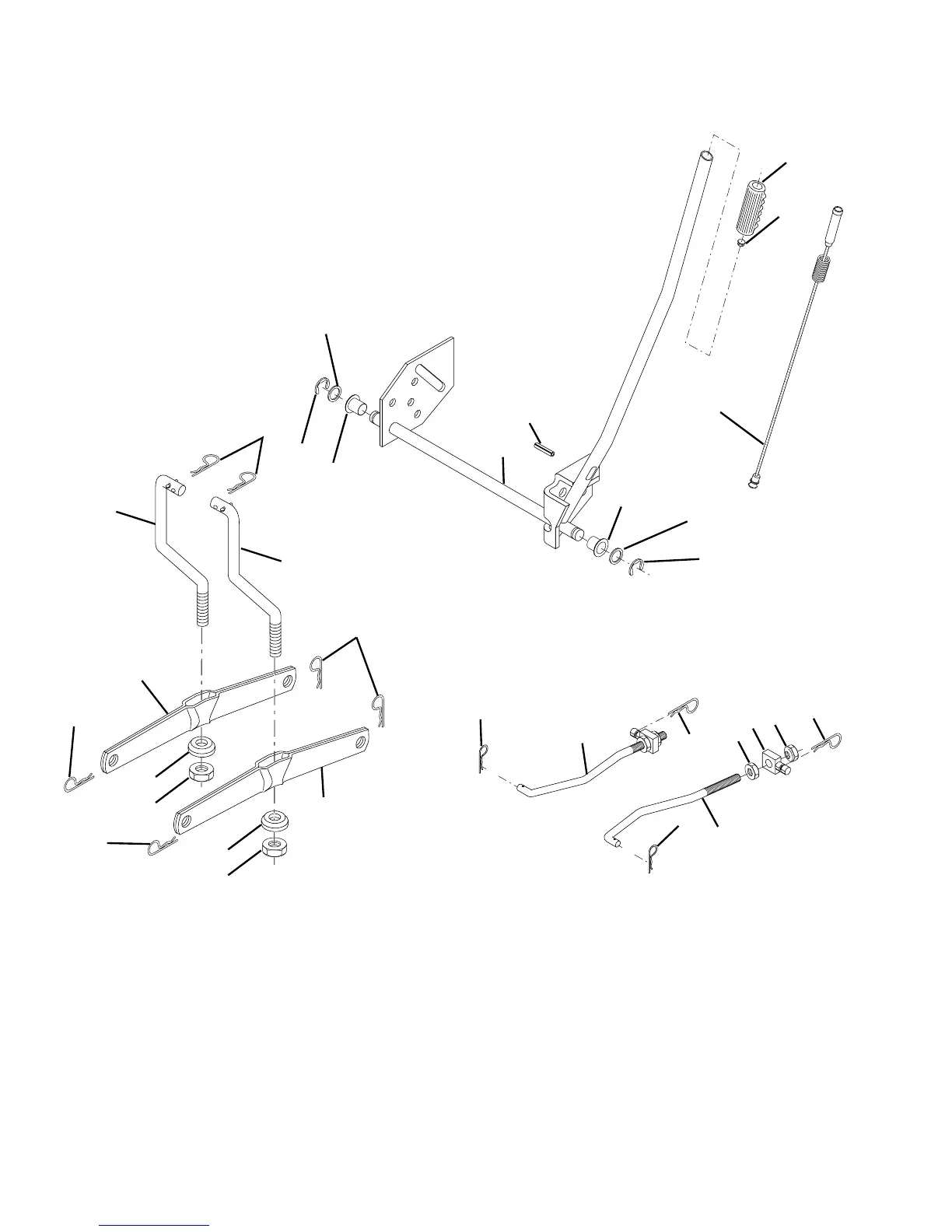

MOWER LIFT
1 532 15 94-60 Wire Asm Inner/Sprg w/plunger
2 532 15 94-71 Shaft Asm Lift RH
3 532 10 57-67 Pin Groove
4 812 00 00-02 E Ring #5133-62
5 819 21 16-21 Washer 21/32 x 1 x 21 Ga
6 532 12 01-83 Bearing Nylon Blk 629 Id
7 532 10 94-13 Grip Handle Bicycle Matte Blk
8 532 12 45-26 Button Plunger Black
11 532 13 98-65 Link Lift LH Fixed Length
12 532 13 98-66 Link Lift RH Fixed Length
13 532 12 46-70 Retainer Spring
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm.
15
20
16
17
18
20
20
15
20
4
5
6
2
3
1
6
5
4
7
8
12
11
31
32
31
32
19
19
13
13
13
13
lift-rh.1piece_3
15 532 17 32-88 Link Front
16 873 35 08-00 Nut Jam Hex 1/2-13 Unc
17 532 17 56-89 Trunnion
18 873 80 08-00 Nut Lockw/Wsh 1/2-13 Unc
19 532 13 98-68 Arm Suspension Rear
20 532 16 35-52 Retainer, Spring
31 532 16 98-65 Bearing Pvt Lift
32 873 54 06-00 Nut Crownlock 3/8-24
KEY PART
NO. NO. DESCRIPTION
