38
REPAIR PARTS
TRACTOR - MODEL NUMBER MC1236ST (MC1236STA), PRODUCT NO. 964 77 27-03

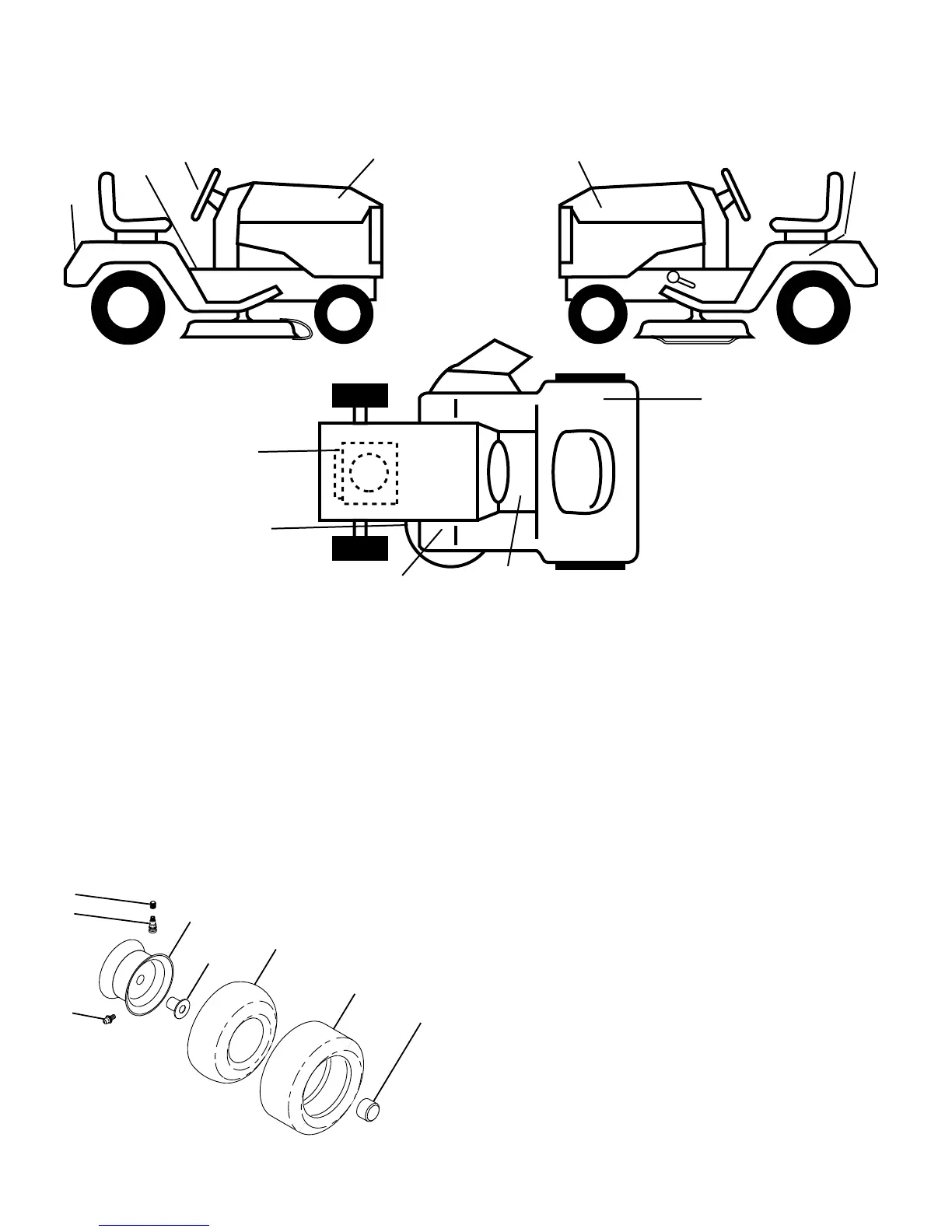

DECALS
12
8
15
KEY PART
NO. NO. DESCRIPTION
1 532 18 12-49 Decal, Clutch/Brake
2 532 18 58-81 Decal, Steering Wheel
3 532 15 68-67 Decal Operator's
5 532 16 88-69 Decal, Tick Mark
7 532 15 70-02 Decal, Finger Danger
8 532 13 68-32 Decal, V-Belt Sch.
9 532 19 32-06 Decal, Fender
11 532 18 48-54 Decal, Engine
12 532 19 32-03 Decal, Hood RH/LH
15 532 14 50-05 Decal, Caution, Battery
- - 532 13 83-11 Decal, Handle Lft Height Adj.
- - 532 19 32-01 Manual, Owner's
KEY PART
NO. NO. DESCRIPTION
1 532 05 91-92 Cap, Tire valve
2 532 06 51-39 Stem, Valve
3 532 12 41-57 Tire, Front
4 532 05 99-04 Tube, Front (Service item only)
5 532 12 51-21 Rim assembly, 6" front
6 532 12 49-57 Fitting, Grease (Front wheel only)
7 532 12 49-59 Bearing, Flange (Front wheel only)
8 532 12 51-22 Rim assembly, 8" rear
9 532 12 39-69 Tire, Rear
10 532 12 49-26 Tube, Rear (Service item only)
11 532 17 50-39 Cap, Hub Axle
- - 532 14 43-34 Sealant, Tire (10 oz. Tube)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
6
2
1
5,8
4,10
3,9
11
7
wheel_1
KEY PART
NO. NO. DESCRIPTION
WHEELS & TIRES
1
5
2
7
9
11
12
3
