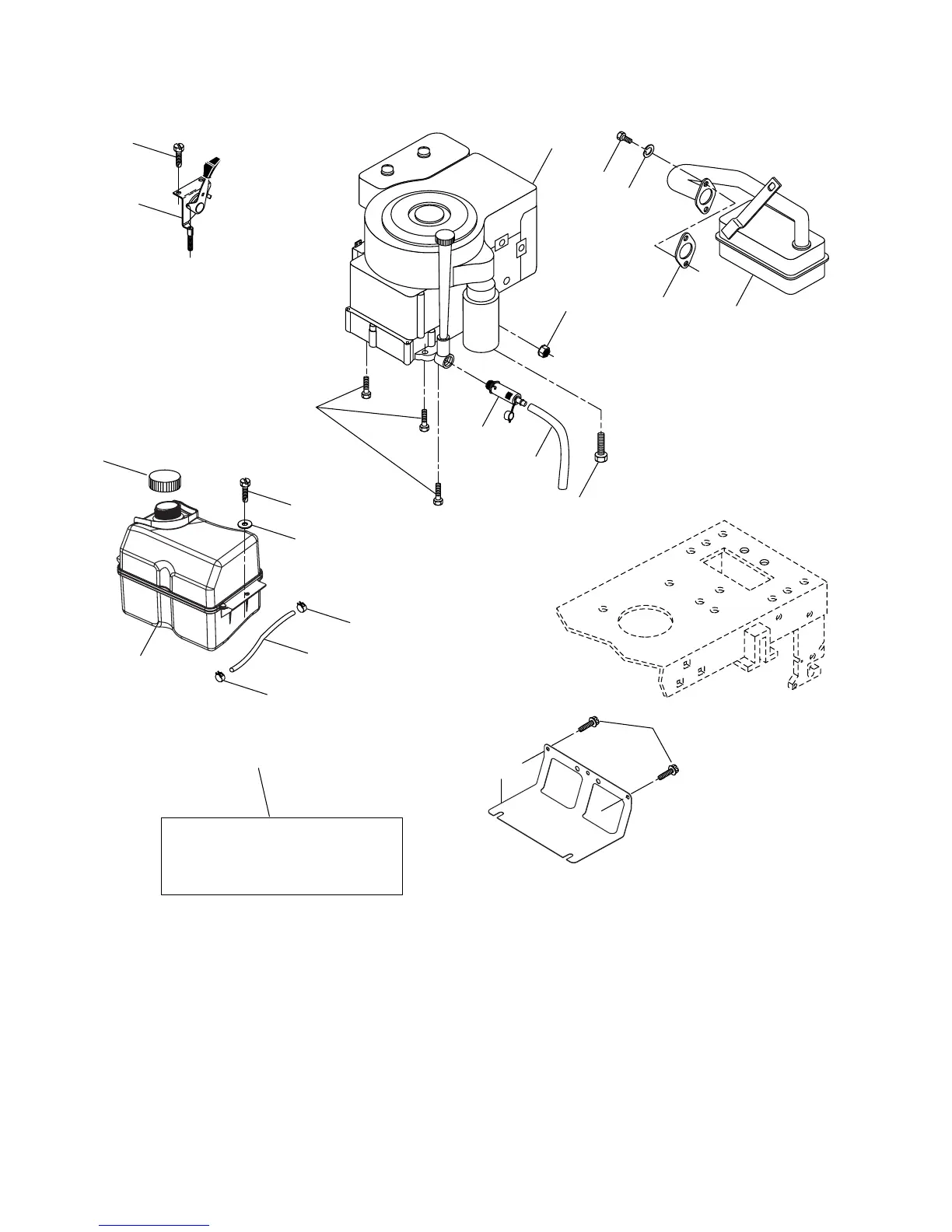

TRACTOR - - MODEL NO. MC175H42ST (MC175H42STA), PRODUCT NO. 964 77 30-00
ENGINE
2
1
OPTIONAL EQUIPMENT
Spark Arrester
29
44
46
32
31
33
37
33
13
4
72
78
81
3
78
23
45
14
38
engine-bs.1cyl_48
62
1 532 17 05-51 Control Throttle/Choke
2 817 72 04-08 Screw Hex Thd Cut 1/4-20 x 1/2
3 - - - - - - - - Engine Briggs Model No. 31G777
(Order Parts From Engine Manufac-
turer)
4 532 13 73-52 Muffl er
13 532 16 52-91 Gasket
14 532 14 84-56 Tube Drain Oil Easy
23 532 16 98-37 Shield Browning/Debris Guard
25 532 19 18-12 Control Choke
29 532 13 71-80 Kit Spark Arrestor (Flat Scrn)
32 532 14 05-27 Cap Asm Fuel
33 532 12 34-87 Clamp Hose Black
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
37 532 13 70-40 Line Fuel
38 532 18 16-54 Plug Drain Oil Easy
44 817 67 04-12 Screw Hexwsh Thdrol 1/4-20 x 3/4
45 817 00 06-12 Screw Hex Wsh Thdr 3/8-16 x 3/4
46 819 09 14-16 Washer 9/32 x 7/8 x 16 Ga.
62 810 01 05-00 Washer Split
72 817 07 05-12 Screw Hex Head Cap 5/16
78 817 06 06-20 Screw 3/8-16 x 1-1/4
81 873 51 04-00 Nut Keps Hex 1/4-20 Starter Nut
KEY PART
NO. NO. DESCRIPTION
