McCulloch MC175H42ST - Page 38

38
TRACTOR - - MODEL NO. MC175H42ST (MC175H42STA), PRODUCT NO. 964 77 30-00

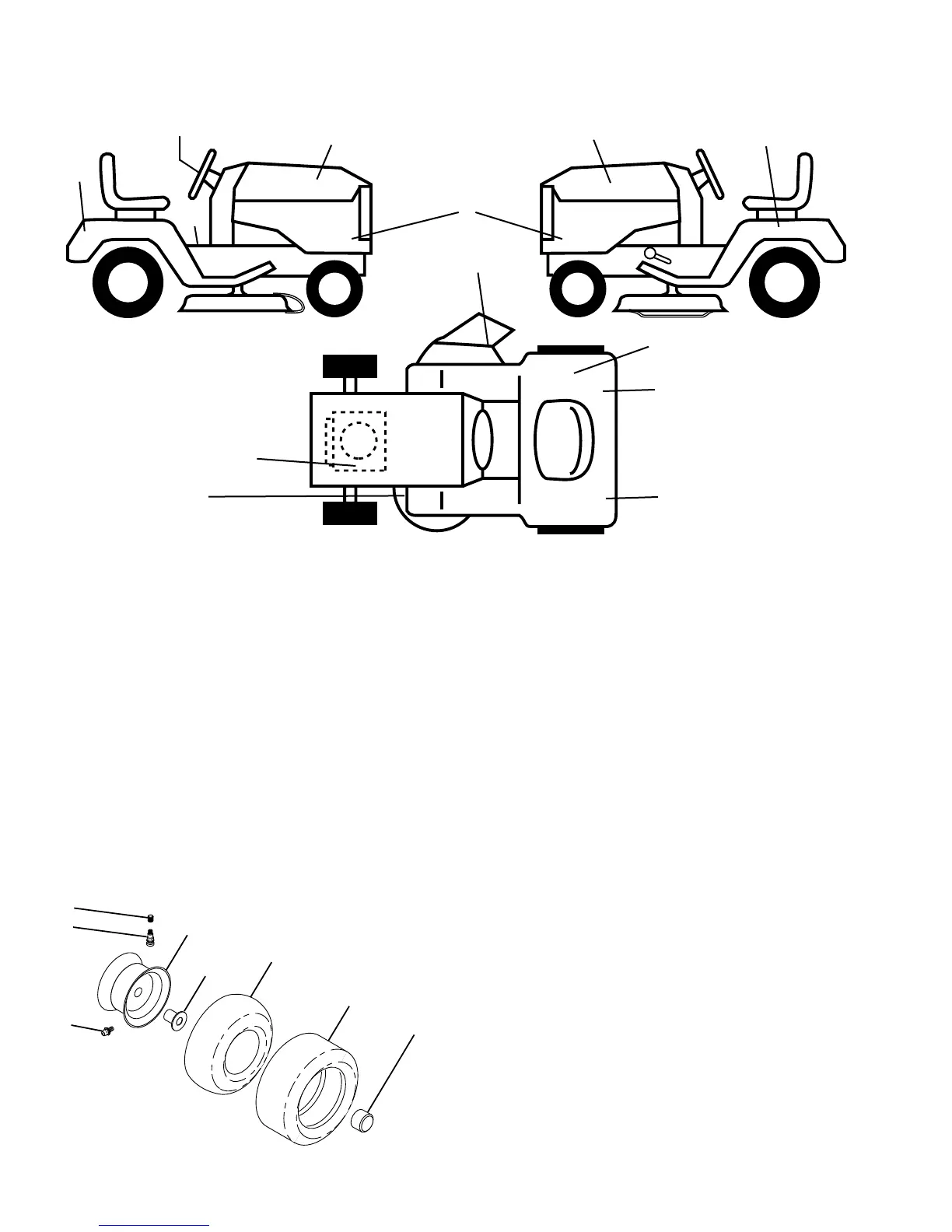

DECALS
3
3
9
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1 532 05 91-92 Cap Valve Tire
2 532 06 51-39 Stem Valve
3 532 10 62-22 Tire F Ts 15 x 6.0 - 6 Service
4 532 05 99-04 Tube Front (Service Item Only)
5 532 12 51-21 Rim Asm 6" front Service
6 532 12 49-57 Fitting Grease (Front Wheel Only)
7 532 12 49-59 Bear ing Flange (Front Wheel Only)
8 532 12 51-22 Rim Asm 8" rear Service
9 532 13 84-68 Tire R Ts 20 x 8-8 C Service
10 532 12 49-26 Tube Rear (Service Item Only)
11 532 19 32-68 Cap Axle
- - 532 14 43-34 Sealant, Tire (10 oz. Tube)
20
14
1 532 16 88-69 Decal Tick Mark
2 532 17 35-89 Decal LH Refl ector
3 532 19 32-03 Decal Hood
4 532 17 35-87 Decal RH Refl ector
5 532 15 70-02 Decal Fender Danger
6 532 19 40-81 Decal Side Panel
7 532 15 68-11 Decal Fender Operator
9 532 19 32-09 Decal Fender
11 532 19 32-10 Decal Engine
KEY PART
NO. NO. DESCRIPTION
7
6
2
1
5,8
4,10
3,9
11
7
wheel_1
WHEELS & TIRES
12 532 18 57-33 Decal Wheel Steering
14 532 16 03-96 Decal V-Belt Schematic
15 532 17 91-28 Decal Deck "B" 42"
20 532 14 50-05 Decal Bat Dan/Psn
- - 532 16 69-60 Decal By-Pass
- - 532 18 82-52 Pad Footrest LH STLT
- - 532 18 82-53 Pad Footrest RH STLT
- - 532 13 83-11 Decal Handle Lft Height Adjust
- - 532 19 31-94 Manual Owner's English
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
1
12
11
15
4
2
6
