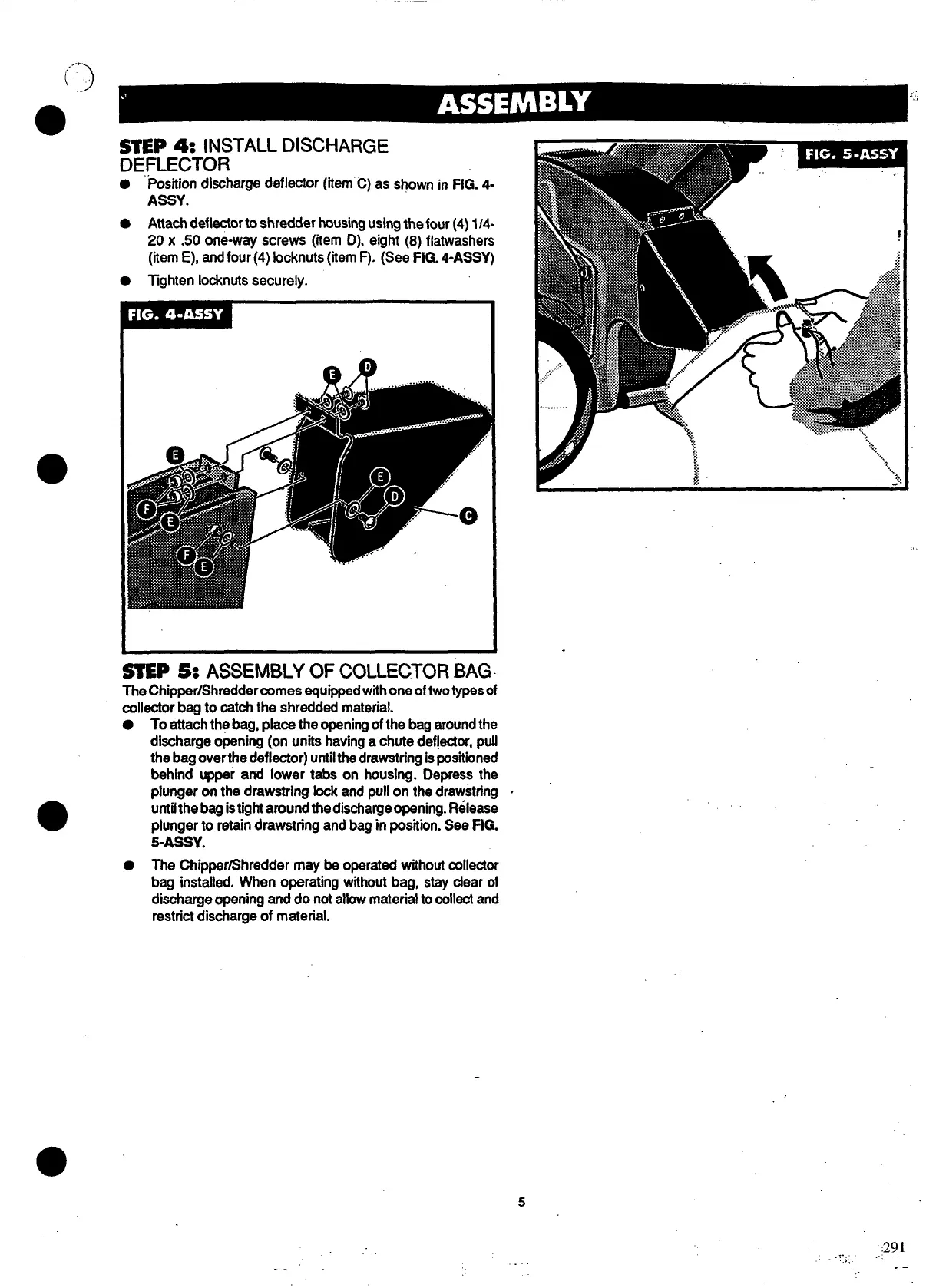

STEP 4: INSTALL DISCHARGE
DEFLECTOR
● “Positiondischarge deflector (item C) as shown in FIG. 4-
iassY.
. Attach deflector to shredder housing using the four (4) l/4-
20 x .50 one-way screws (item D), eight (8) fiatwashers
(iem E), andfour(4) locknuts (item F). (See FIG.4-ASSY)
● Tighten locknuts securely.
STEP 5: ASSEMBLY OF COLLECTOR BAG
The Chipper/Shreddercomes equipped with one of two types of
collector bag to catch the shredded material.
To atta~h the bag, place the opening of the bag around the
discharge opening (on units having a chute deflector, pull
the bag overthe deflector) untilthe drawstring is positioned
behind upper and lower tabs on housing. Depress the
plunger on the drawstring lock and pull on the drawstring
untilthe bag istight around the discharge opening. Release
plunger to retain drawstring and bag in position. See FfG.
5-ASSY.
The Chipper/Shredder may be operated without collector
bag installed. When operating without bag, stay dear of
discharge opening and do not allow material to collect and
restrict discharge of material.
.-. .
