2. CONNECTION OF THE DEVICE

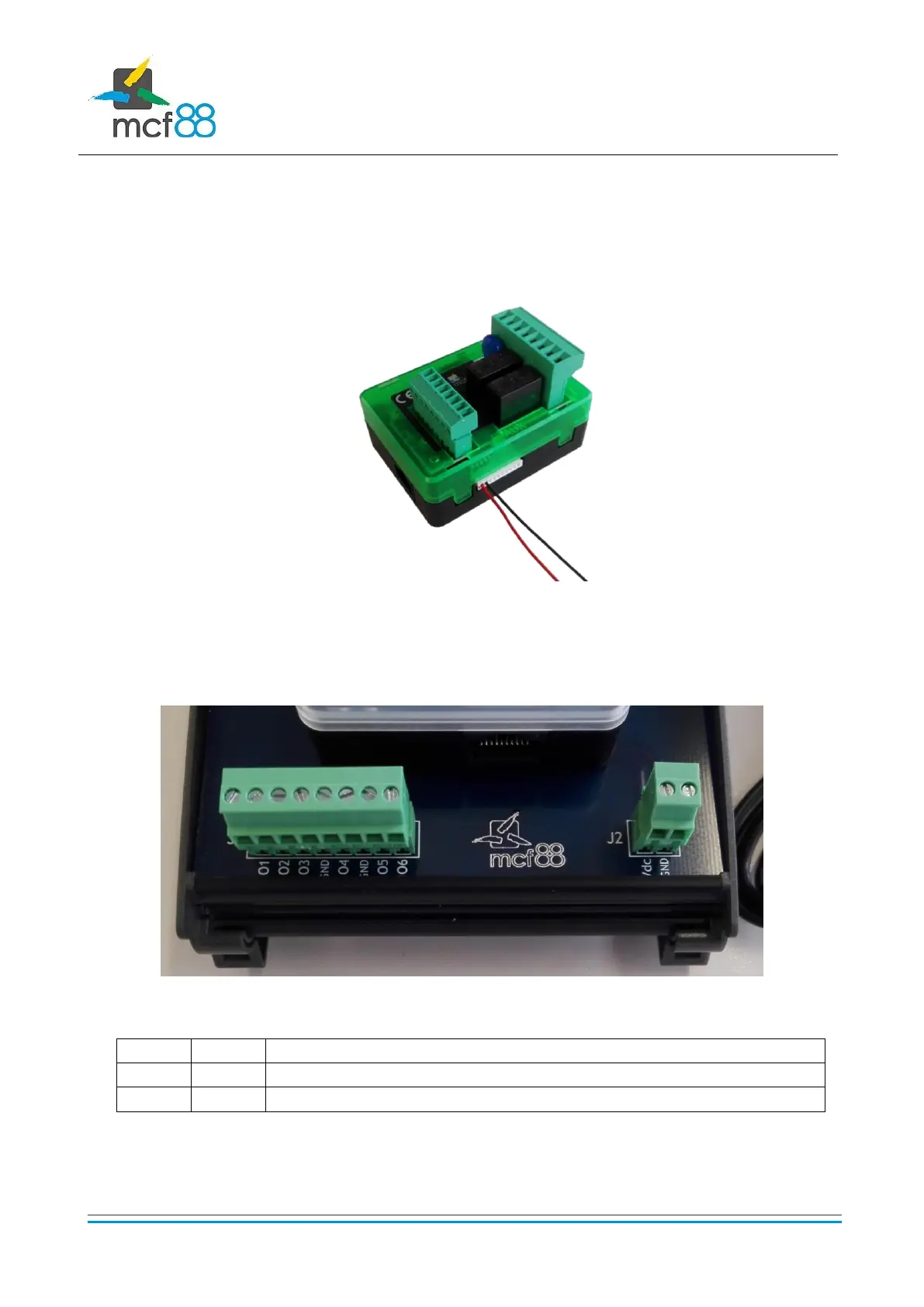

2.1 Connection as stand-alone device:
2.1.1 Power supply:
➢ red wire: positive power supply with range [10-36]Vdc
➢ black wire: negative power supply
Power can also be supplied by USB but in that case I/Os capability is not available.
2.2 Connection with MCF-DIN105:
2.2.1 Power supply:
Pin
Name
Description
J2.1
VDD
Positive power supply range [10-36Vdc]
J2.2
GND
Negative power supply
Power can also be supplied by USB.
