SPI NDLE AND HUB (continued)

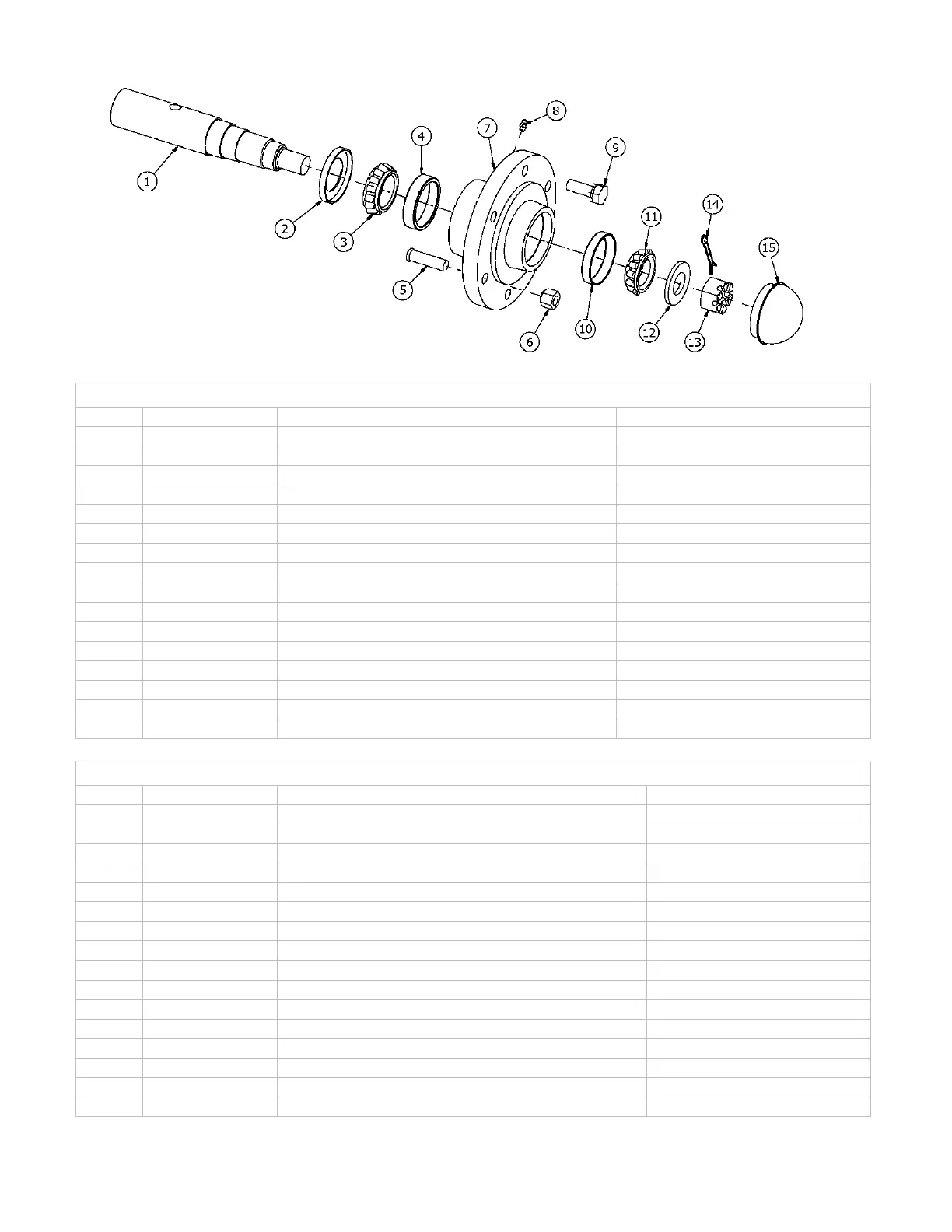

6-HOLE HUB ASSEMBLY SHOWN
6-HOLE HUB, 3560 LB (9.5L/ 11L – 15x6/ 15x8 RI M)
Key Part No. Description Notes/ Revisions
1 WDL-2505 SPI NDLE, 1 3/ 4 X 9 1/ 2
2 HD-1360 GREASE SEAL, 6 HOLE HUB CR16289
3 HD-1362 INNER BEARI NG JL69349
4 HD-1366 INNER RACE JL69310
5 HD-1191 HUB STUD 1/ 2 - 20 X 1 3/ 4
6 WN-0050 STUD NUTS 1/ 2 - 20
7 HD-1361 HUB WITH RACES, 6 HOLE HUB
8 GZ-0601 GREASE ZERK
9 WB-5010 WHEEL BOLTS 1/ 2 - 20 X 1 3/ 4
10 HD-1171 OUTER RACE LM67010
11 HD-1363 OUTER BEARI NG LM67048
12 HD-1364 SPI NDLE FLAT WASHER 15/ 16
13 HD-1365 SPI NDLE HEX CASTLE NUT 7/ 8 - 14 UNF
14 CP-1517 COTTER PI N (0.150 X 1 3/ 4)
15 HD-1367 DUST CAP
HD-1371 6-HOLE HUB ASSEMBLY I ncludes items 2,3,7,11,15
8-HOLE HUB, 4500 LB (12.5L/ 31X13.5-15x10 RI M)
Key Part No. Description Notes/ Revisions
1 RT-2170 SPI NDLE, 2 1/ 4 X 11 1/ 2
2 RT-2172 GREASE SEAL, 8 HOLE HUB CR22392
3 RT-2173 I NNER BEARI NG LM603049
4 RT-2169 I NNER RACE LM603011
5 N/ A HUB STUD 5/ 8 – 18 X 2 1/ 4
6 N/ A STUD NUTS 5/ 8 - 18
7 RT-2174 HUB WI TH RACES, 8 HOLE HUB
8 GZ-0601 GREASE ZERK
9 WB-5610 WHEEL BOLTS 9/ 16 – 18 X 1 11/ 16
10 HD-1171 OUTER RACE LM67010
11 HD-1363 OUTER BEARI NG LM67048
12 RT-2176 SPI NDLE FLAT WASHER 13/ 16
13 RT-2177 SPI NDLE HEX CASTLE NUT 3/ 4 - 16 UNF
14 CP-5312 COTTER PI N (0.150 X 1 1/ 4)
15 RT-2178 DUST CAP
RT-2171 8-HOLE HUB ASSEMBLY Includes items 2,3,7,11,15
To Next Page
