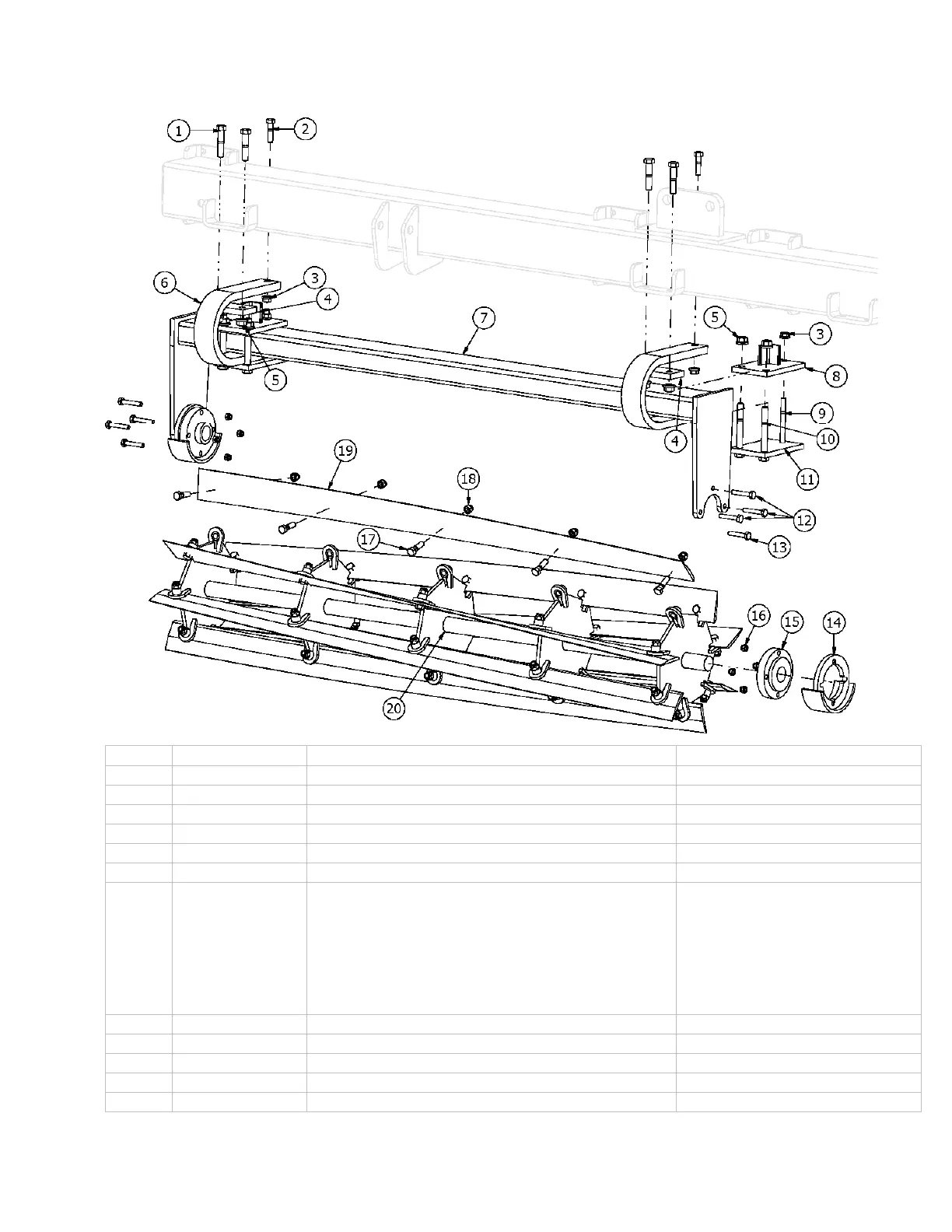

McFarlane RD-4025 - Spiral Reel Assembly

36
SPI RAL REEL
FOR RD-4000 SERIES
Key Part No. Description Notes/ Revisions
1 BHY-7535 3/ 4 - 10 X 3 1/ 2 GRADE 8 BOLT
2 BH-6325 5/ 8-11 X 2 1/ 2 GRADE 5 BOLT
3 NLT-6311 5/ 8 - 11 TOP LOCK NUT
4 RT-2611 C-SPRING TOP CLAMP
5 NLT-7510 3/ 4 - 10 TOP LOCK NUT
6 SPR-2039 SPI RAL REEL C-SPRING
7
7
7
7
7
7
7
RD-4648
RD-4651
RD-4658
RD-4666
RD-4672
RD-4680
RD-4695
48” SPIRAL REEL MOUNT – 49”
51” SPIRAL REEL MOUNT – 52”
58” SPIRAL REEL MOUNT – 59”
66” SPIRAL REEL MOUNT – 67”
72” SPIRAL REEL MOUNT – 73”
80” SPIRAL REEL MOUNT – 81”
95” SPIRAL REEL MOUNT – 95”
Refer to layout diagram for
position and size on each unit.
8 RD-4485 C-SPRING CLAMP WITH STOP
9 BHY-6365 5/ 8 – 11 X 6 1/ 2 GRADE 8 HEX BOLT
10 BHY-7565 3/ 4 – 10 X 6 1/ 2 GRADE 8 HEX BOLT
11 RT-2310 C-SPRING CLAMP, 6”
12 BHY-5030 1/ 2 – 13 X 3 GRADE 8 HEX BOLT
