McFarlane RD-4025 - Page 43

43

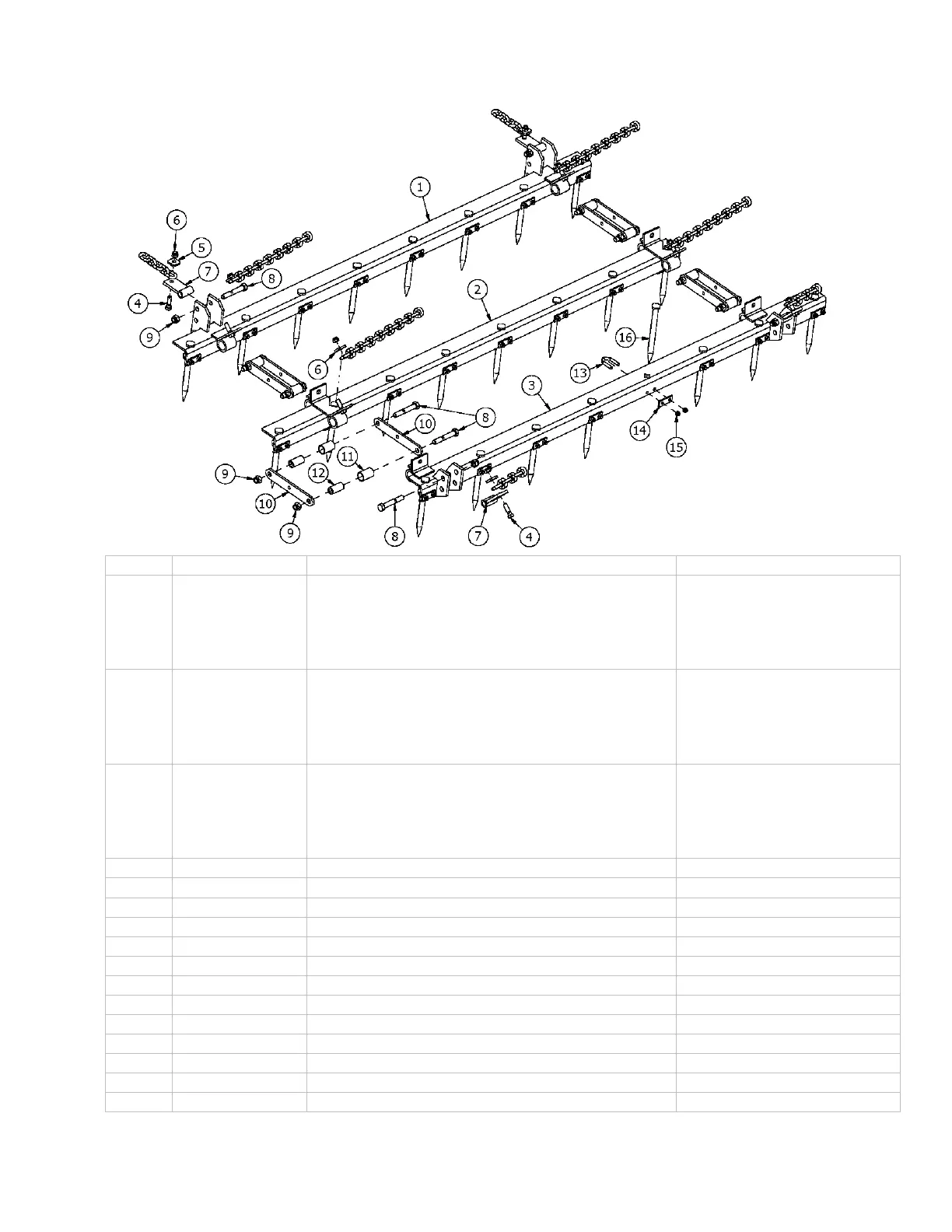

FA HARROW SECTI ON
FOR RD-4000 SERIES
Key Part No. Description Notes/ Revisions
1
1
1
1
1
FA-551
FA-651
FA-751
FA-851
FA-951
NUMBER ONE HARROW BAR (FA-500-3)
NUMBER ONE HARROW BAR (FA-600-3)
NUMBER ONE HARROW BAR (FA-700-3)
NUMBER ONE HARROW BAR (FA-800-3)
NUMBER ONE HARROW BAR (FA-900-3)
2
2
2
2
2
FA-556
FA-656
FA-756
FA-856
FA-956
NUMBER TWO HARROW BAR (FA-500-3)
NUMBER TWO HARROW BAR (FA-600-3)
NUMBER TWO HARROW BAR (FA-700-3)
NUMBER TWO HARROW BAR (FA-800-3)
NUMBER TWO HARROW BAR (FA-900-3)
3
3
3
3
3
FA-557
FA-657
FA-757
FA-857
FA-957
NUMBER THREE HARROW BAR (FA-500-3)
NUMBER THREE HARROW BAR (FA-600-3)
NUMBER THREE HARROW BAR (FA-700-3)
NUMBER THREE HARROW BAR (FA-800-3)
NUMBER THREE HARROW BAR (FA-900-3)
4 BH-5018 1/ 2 – 13 X 1 3/ 4 GRADE 5 HEX BOLT
5 HDD-016 SQUARE WASHER – 1/ 2”
6 NLT-5013 1/ 2 - 13 TOP LOCK NUT
7 FA-4105 PULL HOOK
8 BH-6340 5/ 8 – 11 X 4 GRADE 5 HEX BOLT
9 NLT-6311 5/ 8 – 11 TOP LOCK NUT
10 CT-105 CONNECTOR FLAT
11 CT-107 OUTER BUSHING
12 CT-102 I NNER BUSHI NG
13 BV-3812 3/ 8” V BOLT
14 FA-4103 3/ 8” V-BOLT PLATE
15 NLT-3816 3/ 8 – 16 TOP LOCK NUT
16 FA-4110 3/ 4” X 10” TOOTH
