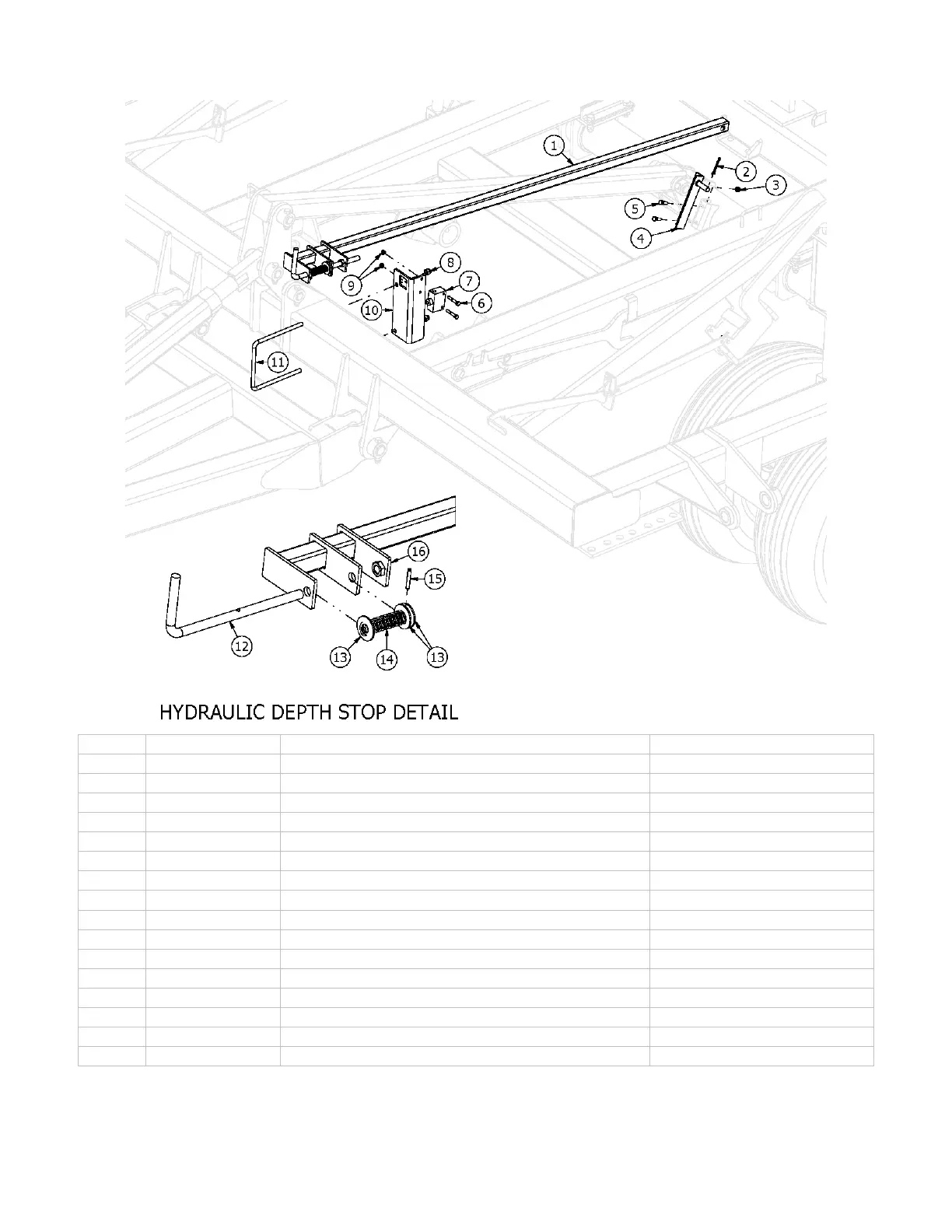

HYDRAULI C DEPTH STOP
FOR RD-4000 SERIES
Key Part No. Description Notes/ Revisions
1 RD-4351 HYDRAULI C STOP TUBE ASSEMBLY
2 CP-3620 3/ 16 X 2 COTTER PI N
3 NLT-3816 3/ 8 – 16 X TOP LOCK NUT
4 RD-4356 HYDRAULI C STOP AXLE BRACKET
5 BH-3810 3/ 8 – 16 X 1 GRADE 5 HEX BOLT
6 BH-3120 5/ 16 – 18 X 2 GRADE 5 HEX BOLT
7 HYO-3021 HYDRAULIC STOP VALVE, RESTRICTED
8 NLT-5013 1/ 2 – 13 TOP LOCK NUT
9 NY-3118 5/ 16 – 18 NYLON LOCK NUT
10 RD-4350 HYDRAULIC STOP FRAME BRACKET
11 BU-1278 1/ 2 - 13 X 7 X 8 1/ 4 U-BOLT
