McFarlane RD-4030 - Page 27

27

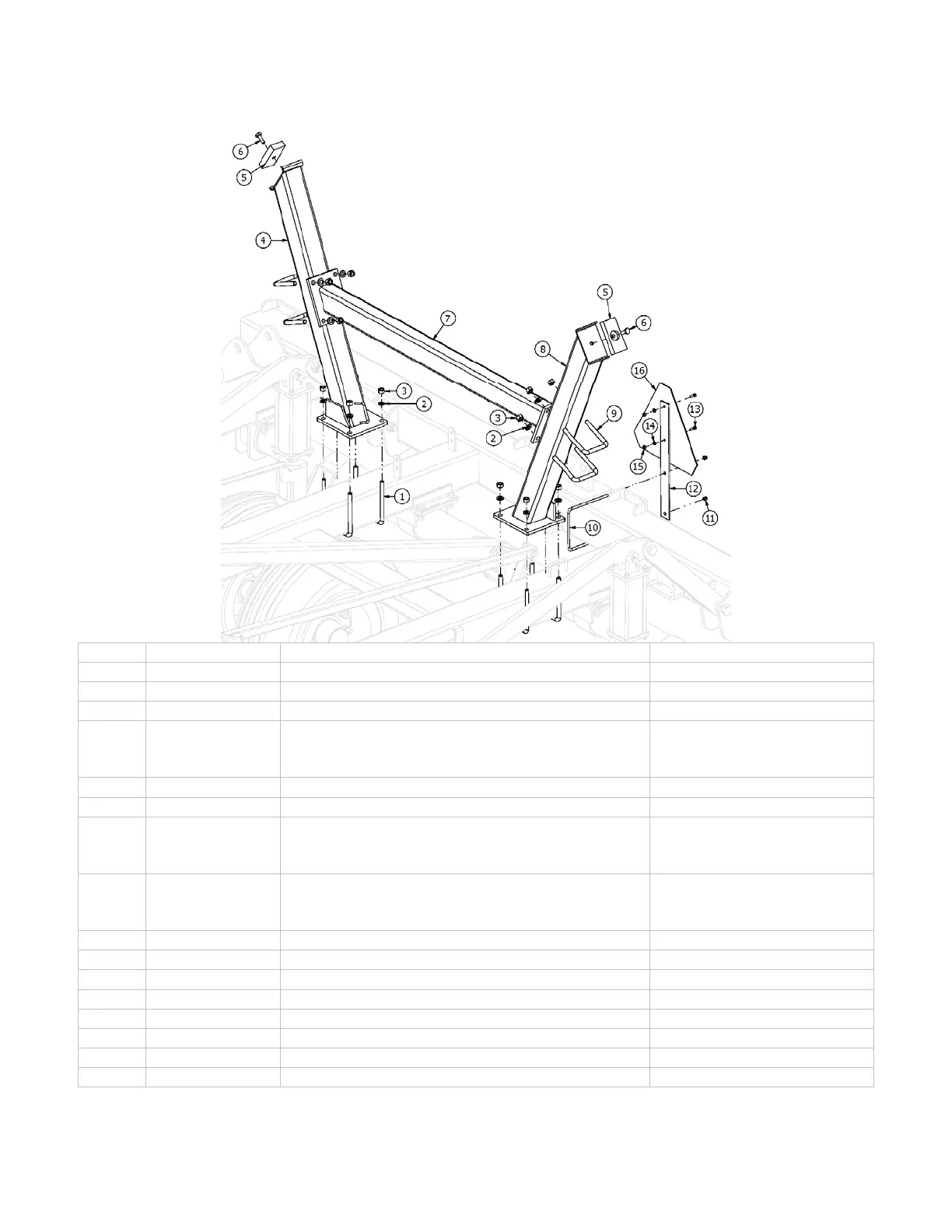

WI NG REST & SMV
FOR 4025, 4030 AND 4035
Key Part No. Description Notes/ Revisions
1 BU-5867 5/ 8 - 11 X 6 X 7 1/ 2 U-BOLT
2 LW-0063 5/ 8 LOCK WASHER
3 NH-6311 5/ 8 – 11 HEX NUT
4
4
4
RD-4620
RT-3434
RD-4621
WI NG REST ASSEMBLY, RIGHT (4025)
WI NG REST ASSEMBLY, RIGHT (4030)
WI NG REST ASSEMBLY, RIGHT (4035)
5 RT-3415 WI NG REST BUMPER
6 BH-5015 1/ 2 -13 X 1 1/ 2 GRADE 5 HEX BOLT
7
7
7
RD-4483
RT-3433
RD-4487
WI NG REST BRACE (4025)
WI NG REST BRACE (4030)
WI NG REST BRACE (4035)
8
8
8
RD-4482
RT-3432
RD-4486
WI NG REST ASSEMBLY, LEFT (4025)
WI NG REST ASSEMBLY, LEFT (4030)
WI NG REST ASSEMBLY, LEFT (4035)
9 BU-5845 5/ 8 - 11 X 4 X 5 1/ 2 U-BOLT
10 BU-3878 3/ 8 - 16 X 7 X 8 U-BOLT
11 NLT-3816 3/ 8 – 16 TOP LOCK NUT
12 LB-1203 SMV MOUNT BRACKET, 7”
13 BH-2510 1/ 4 -20 X 1 GRADE 5 HEX BOLT
14 LW-0025 1/ 4 LOCK WASHER
15 NH-2520 1/ 4 – 20 HEX NUT
16 MM-1300 SMV SI GN
