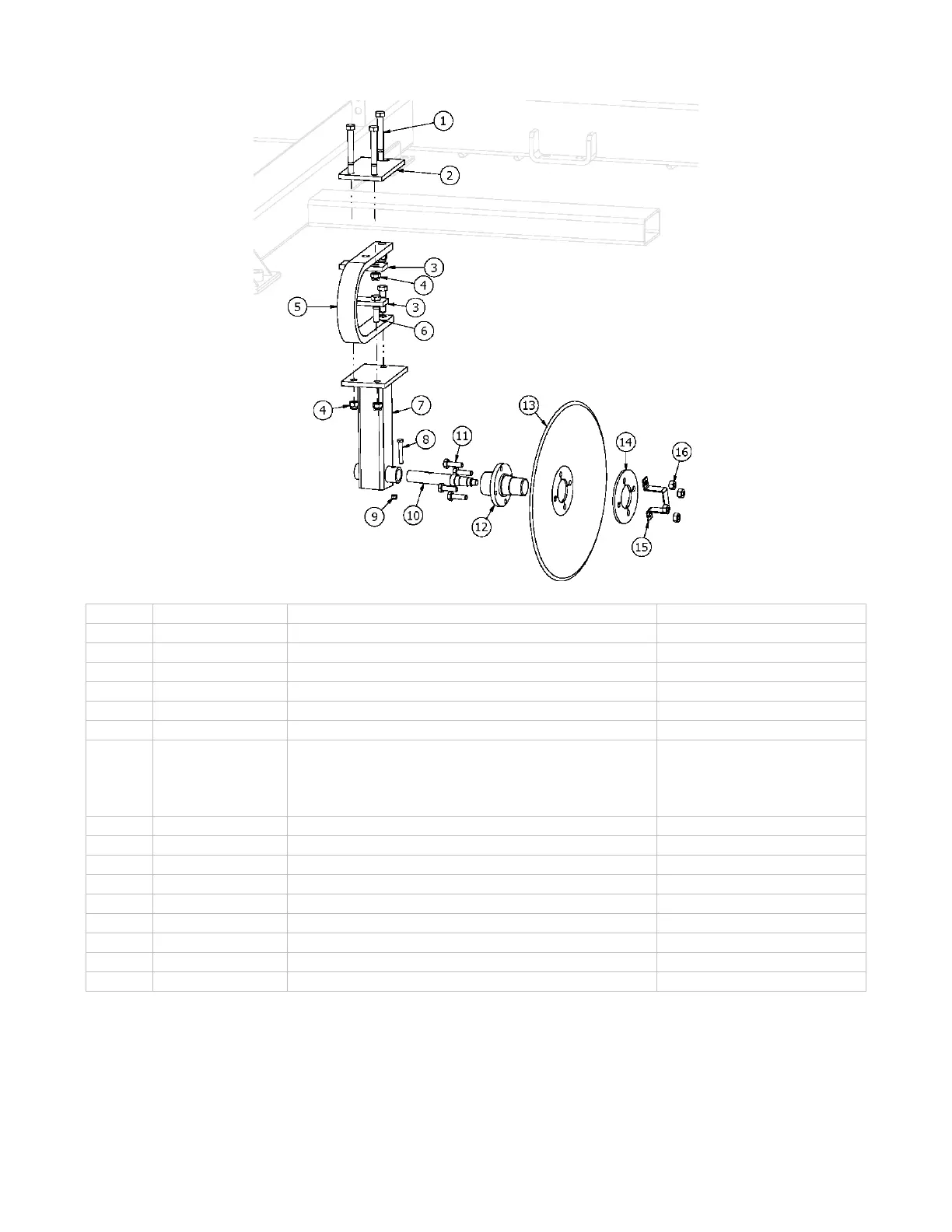

CENTER COVERI NG DI SK
FOR RD-4000 SERIES
Key Part No. Description Notes/ Revisions
1 BH-6355 5/ 8 – 11 X 5 1/ 2 GRADE 5 HEX BOLT
2 RD-4464 SPRING CLAMP PLATE
3 RD-4432 SPRING CLAMP PLATE
4 NLT-6311 5/ 8 - 11 TOP LOCK NUT
5 RD-4465 CENTER DISK SPRING
6 BH-6325 5/ 8 – 11 X 2 1/ 2 GRADE 5 HEX BOLT
7
7
7
7
RD-4461
RD-4462
RD-4561
RD-4562
CENTER DISK BRACKET, LT
CENTER DISK BRACKET, RT
CENTER DISK BRACKET, LT (4020 & 4045)
CENTER DISK BRACKET, RT (4020 & 4045)
8 BH-3825 3/ 8 – 16 X 2 1/ 2 GRADE 5 HEX BOLT
9 NLT-3816 3/ 8 – 16 TOP LOCK NUTS
10 HD-1122 SPI NDLE, 1 1/ 4 X 8 1/ 4
11 HD-1191 WHEEL STUD, 1/ 2-20 x 1-7/ 8
12 HD-1190 4-BOLT HUB ASSEMBLY
13 RD-4460 BLADE, CONCAVE, 4-BOLT, 20"
14 RD-4463 CENTER DISK HUB PLATE
15 RD-4499 CENTER DISK HUB RETAINER
16 NL-5020 1/ 2 - 20 LOCK NUT
