McFarlane RD-4030 - Page 38

38

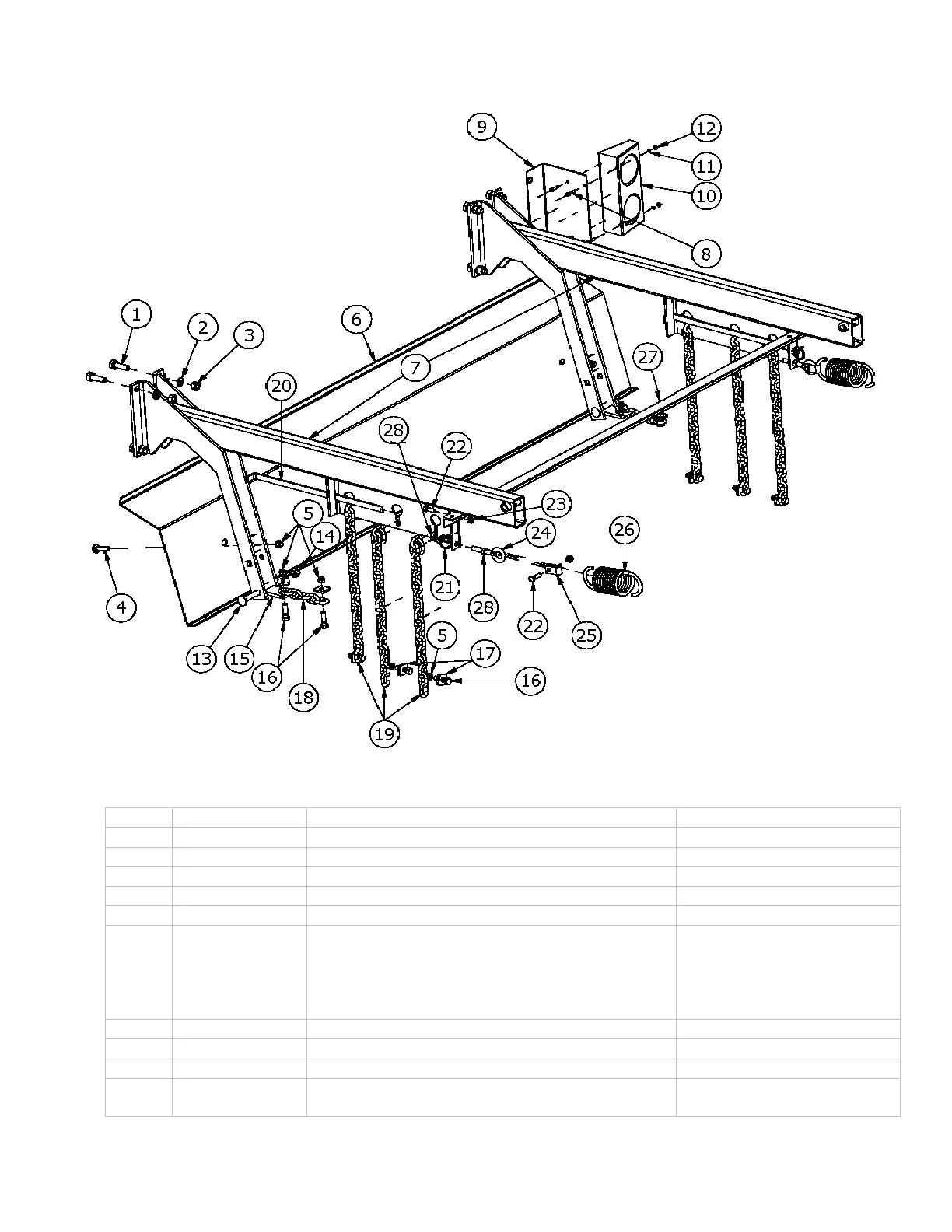

LI FT ARM
FOR RD-4000 SERIES
Key Part No. Description Notes/ Revisions
1 BH-6320 5/ 8 – 11 X 2 GRADE 5 HEX BOLT
2 LW-0063 5/ 8 LOCK WASHER
3 NH-6311 5/ 8 – 11 HEX NUT
4 BC-5020 1/ 2 X 2 GRADE 5 CARRI AGE BOLT
5 NLT-5013 1/ 2 - 13 TOP LOCK NUT
6
RD-4615
RD-4616
RD-4617
RD-4618
RD-4619
DEBRI S SHROUD – 51”
DEBRI S SHROUD – 62”
DEBRI S SHROUD – 73”
DEBRI S SHROUD – 84”
DEBRI S SHROUD – 95”
7 RD-4500 LIFT ARM, 3 BAR
8 BH-2513 1/ 4 – 20 X 1 1/ 4 GRADE 5 HEX BOLT
9 LB-1236 LI GHT BRACKET
10
10
LB-1101
LB-1102
LIGHT, LEFT
LIGHT, RI GHT (SHOWN)
