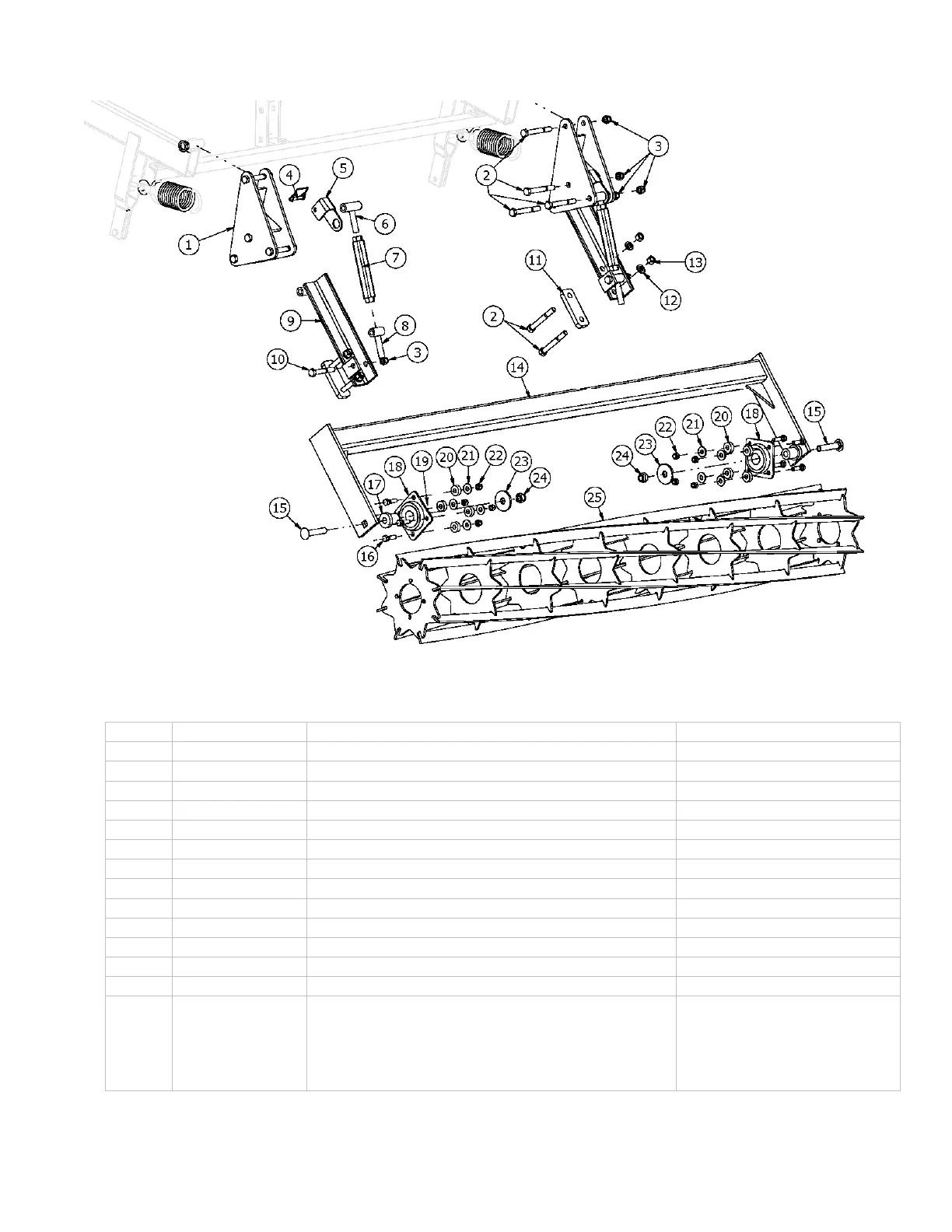

McFarlane RD-4030 - Rolling Basket; Rolling Basket Components

40
ROLLI NG BASKET
FOR RD-4000 SERIES
Key Part No. Description Notes/ Revisions
1 RD-4506 PI VOT PLATE
2 BH-6350 5/ 8 – 11 X 5 GRADE 5 HEX BOLT
3 NLT-6311 5/ 8 – 11 TOP LOCK NUT
4 LP-3825 3/ 8 X 2 1/ 2 LYNCH PI N
5 RT-2415 TURNBUCKLE LOCK
6 RT-2411 PI VOT END TURNBUCKLE
7 RT-2412 TURNBUCKLE TUBE
8 RT-2413 ANGLE END TURNBUCKLE
9 RD-4507 ROLLI NG BASKET SWING ARM
10 BH-6340 5/ 8 – 11 X4 GRADE 5 HEX BOLT
11 RD-4578 ROLLING BASKET SWI NG ARM CLAMP
12 LW-0063 5/ 8 LOCK WASHER
13 NH-6311 5/ 8 – 11 HEX NUT
14
14
14
14
14
SRB-1352
SRB-1363
SRB-1374
SRB-1385
SRB-1396
BASKET MOUNT TUBE – 52”
BASKET MOUNT TUBE – 63”
BASKET MOUNT TUBE – 74”
BASKET MOUNT TUBE – 85”
BASKET MOUNT TUBE – 96”
